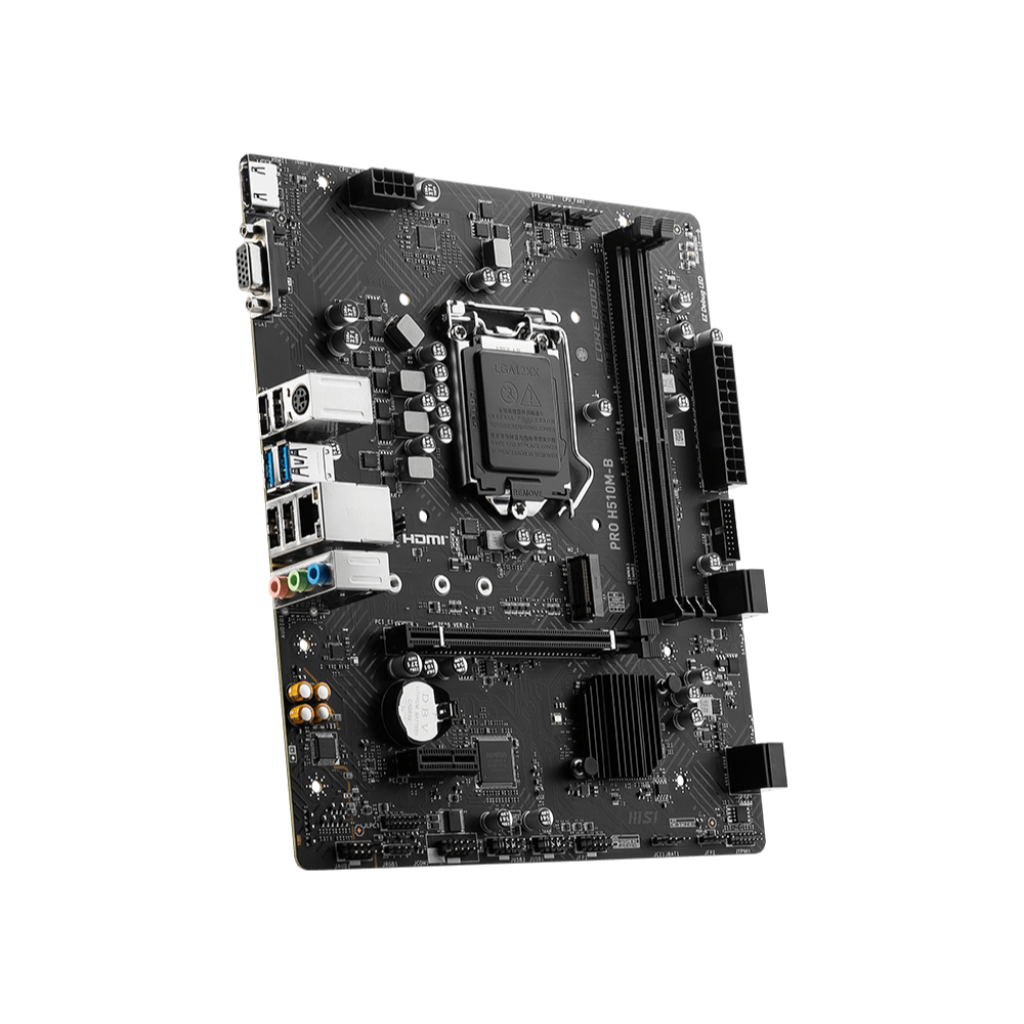

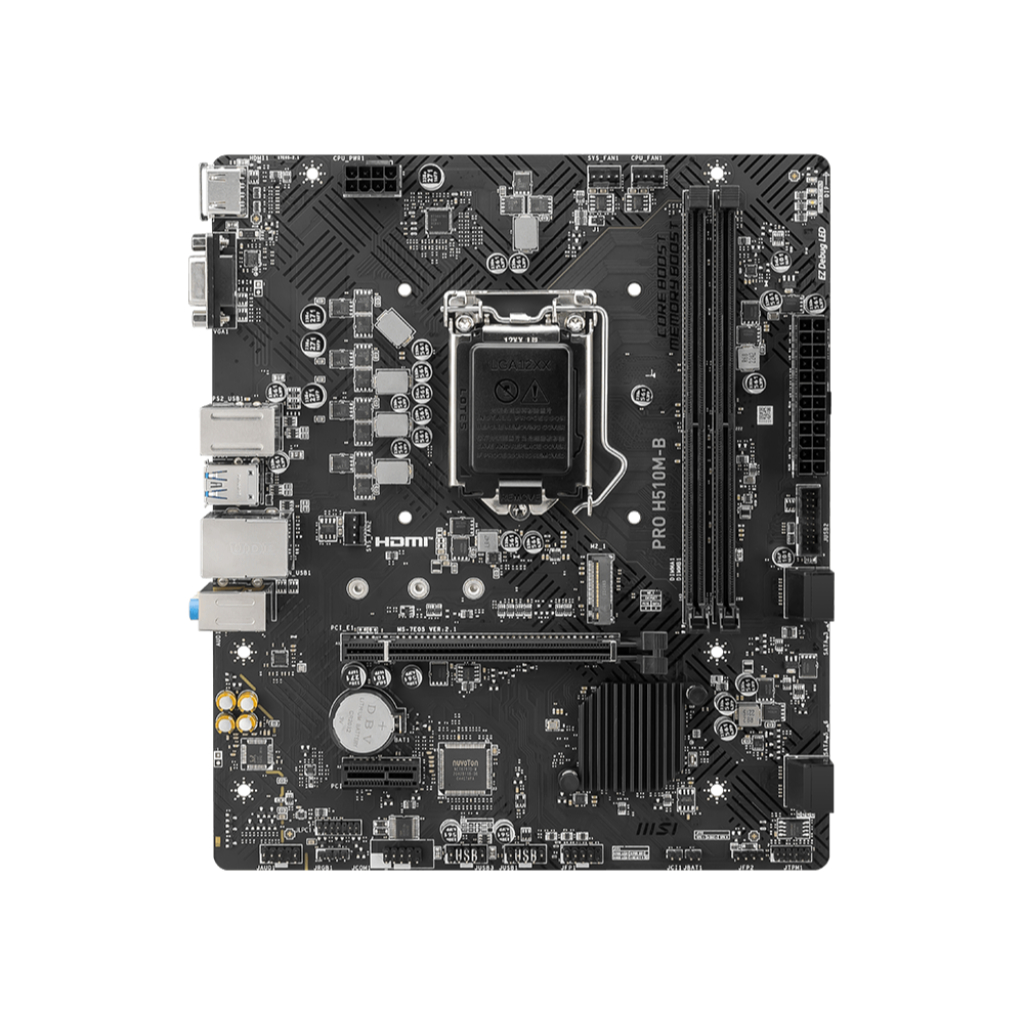

Motherboard MSI PRO H510M-B Intel LGA1200 DDR4

Detail Motherboard MSI PRO H510M-B Intel LGA1200 DDR4

Mohon menanyakan stock terlebih dahulu sebelum membeli
Terima kasih

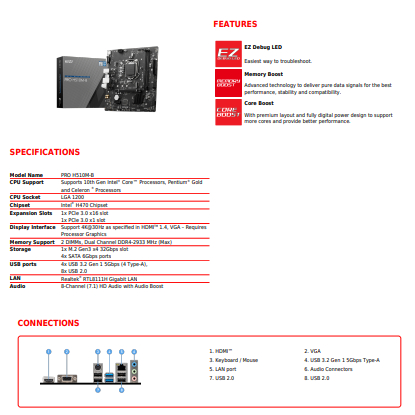

DATASHEET
INTEL H470
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
Realtek® 8111H Gigabit LAN
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
4x EZ Debug LED

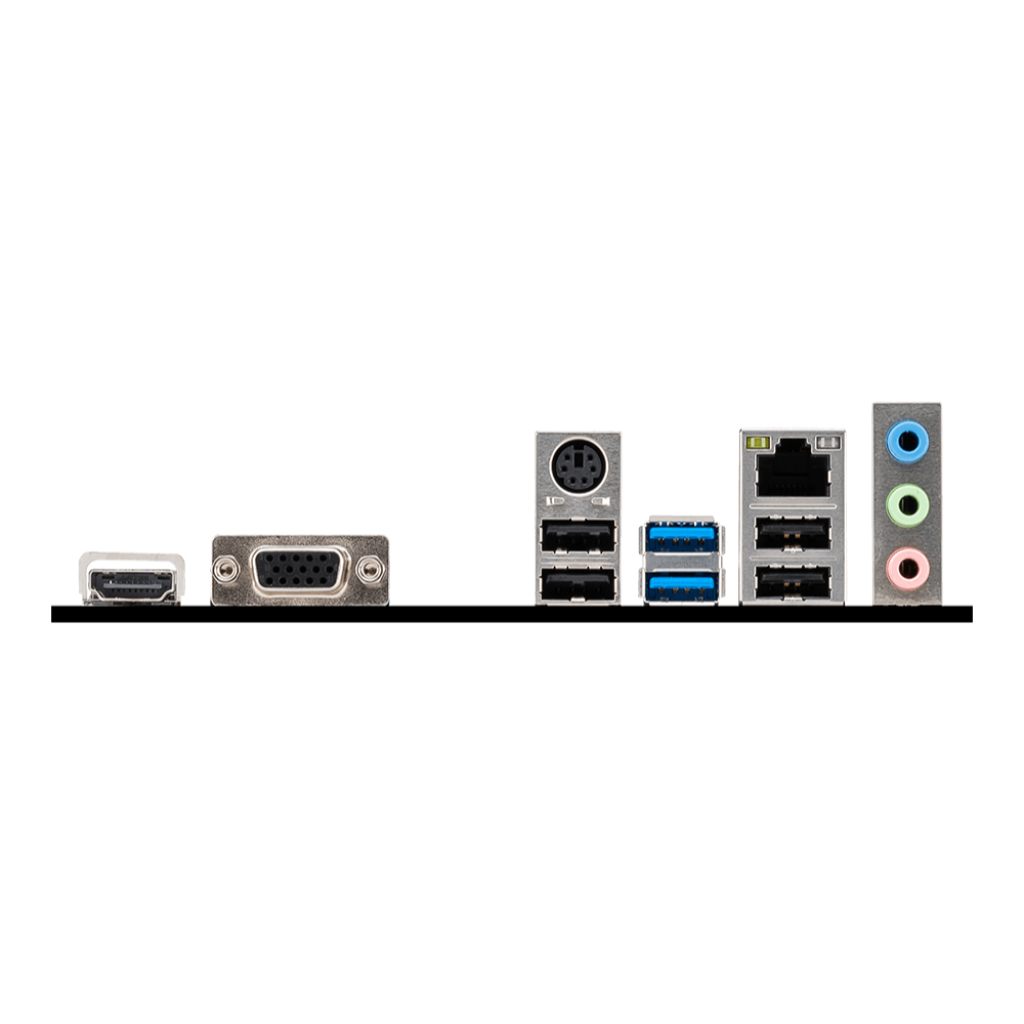

HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0

Support for Windows® 11 64-bit, Windows® 10 64-bit
mATX
202mmx236mm
