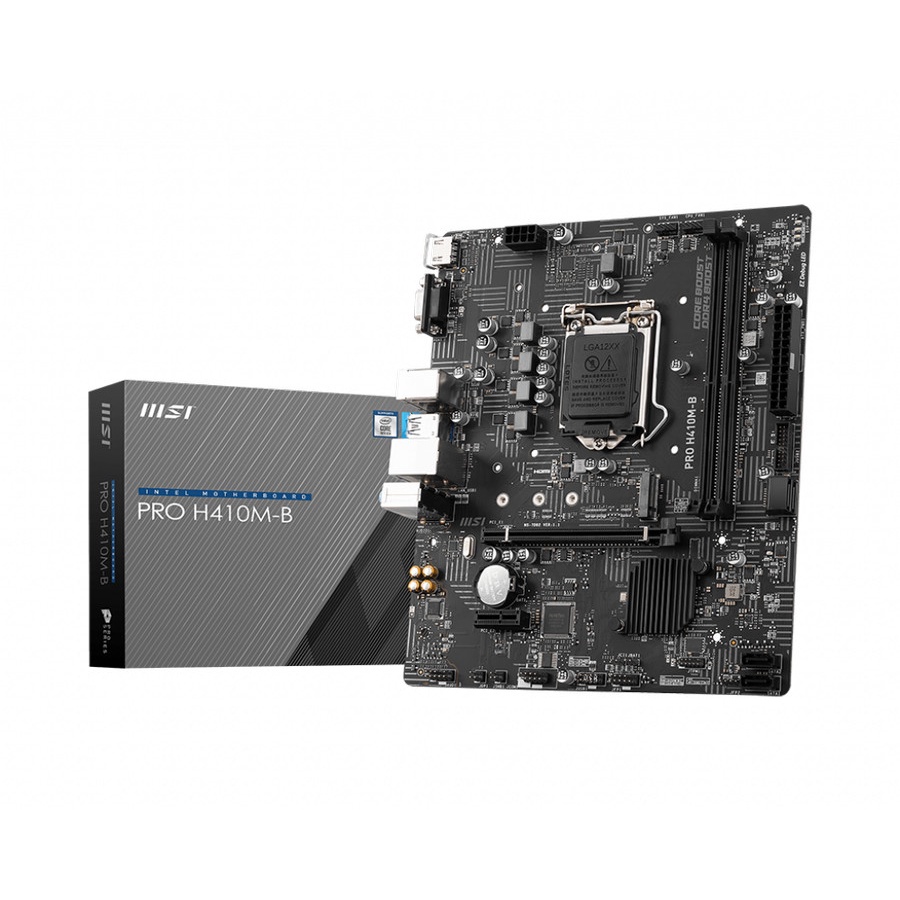

Motherboard MSI PRO H410M-B

Detail Motherboard MSI PRO H410M-B

PROCESSOR
Supports 10th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1200

CHIPSET
Intel® H510 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)

ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

STORAGE
4x SATA 6Gb/s ports (From H510 Chipset)
1x M.2 slot (Key M, from H510 chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s1
Supports 2242/ 2260/ 2280 storage devices
SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

AUDIO
Realtek® ALC897/ ALC892 Codec
7.1-Channel High Definition Audio

LAN
1x Realtek® RTL8111 Gigabit LAN controller

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (support additional 2 USB ports)
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper

Gambar produk
