Motherboard MSI PRO B760M-P DDR4 Intel B760 LGA 1700

Detail Motherboard MSI PRO B760M-P DDR4 Intel B760 LGA 1700

*Notes
Untuk keamanan produk silahkan tambahkan buble ya
https://shopee.co.id/product/28339531/6732702209/

*Untuk keamanan produk yang cukup besar disarankan menggunakan packing kayu, untuk produk monitor, pc aio, pc build up, dan laptop wajib menggunakan packing kayu

*Silahkan menambah packing kayu di
https://shopee.co.id/product/28339531/6174009421/

*Selalu tanyakan stok terlebih dahulu karena stok sangat terbatas

Spesifikasi :
CHIPSET
INTEL B760

CPU SUPPORT
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700

MEMORY
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz

ONBOARD GRAPHICS 1x HDMI
1x DisplayPort
1x VGA
Support HDMI 1.4, maximum resolution of 4K 30Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

EXPANSION SLOT 1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

PCB DIMENSION
mATX
243.84mmx243.84mm

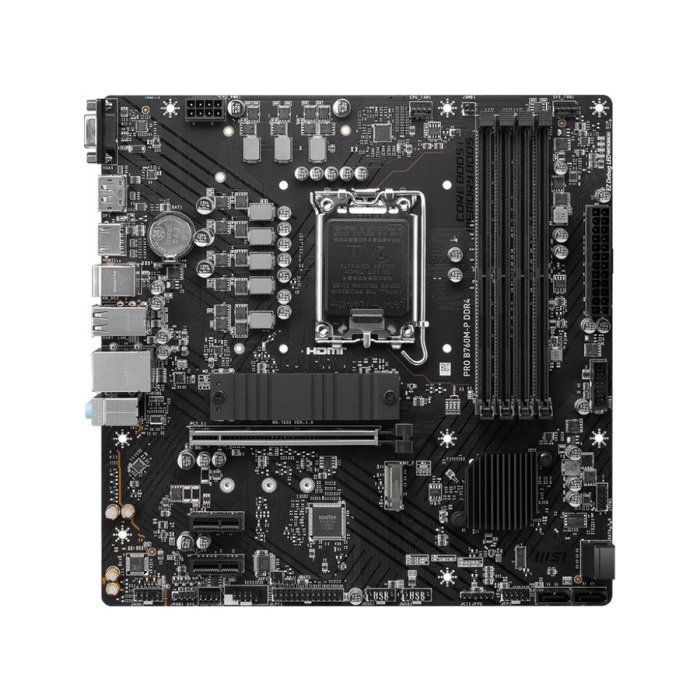

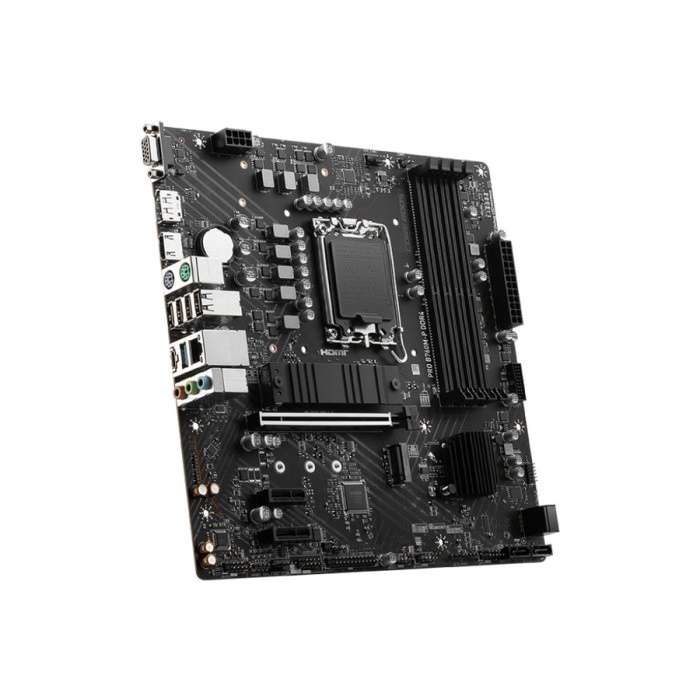

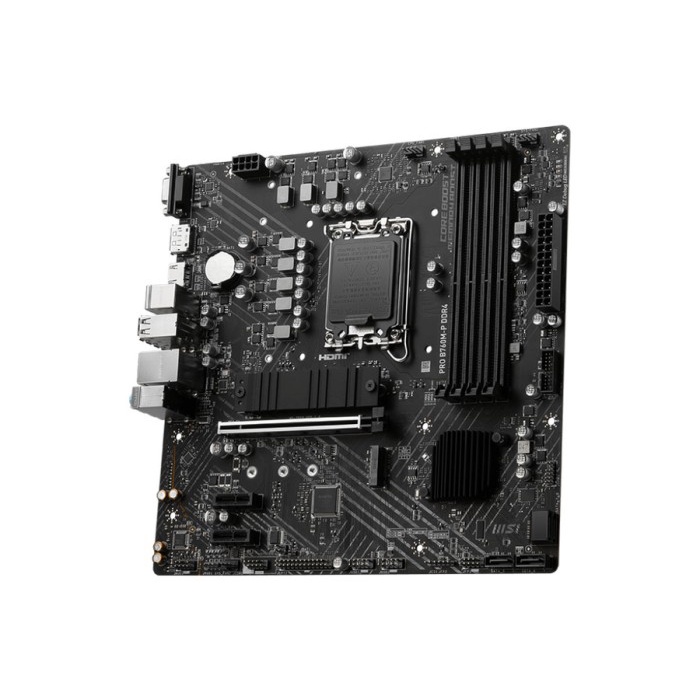

Gambar produk
