Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)

Merek: MSI | Lihat selengkapnya produk Komputer & Aksesoris dari MSI
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)

INFO KOMPLAIN:
Harap melampirkan video unboxing untuk syarat
klaim garansi atau penukaran barang :)

Garansi Resmi 3 Tahun

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Memory
2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Expansion Slot
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From B660 chipset)
Supports PCIe 3.0 x1

Onboard Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

M.2 SSD Slot
1x M.2 slot (Key M, from B660 chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

Power Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

Fan Connectors
1x 4-pin CPU fan connector
1x 4-pin system fan connector

Gambar produk

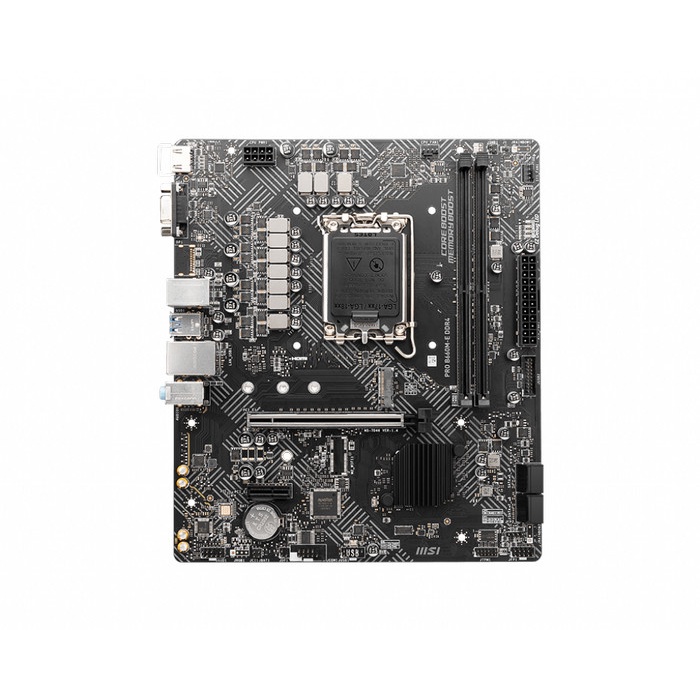

Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)

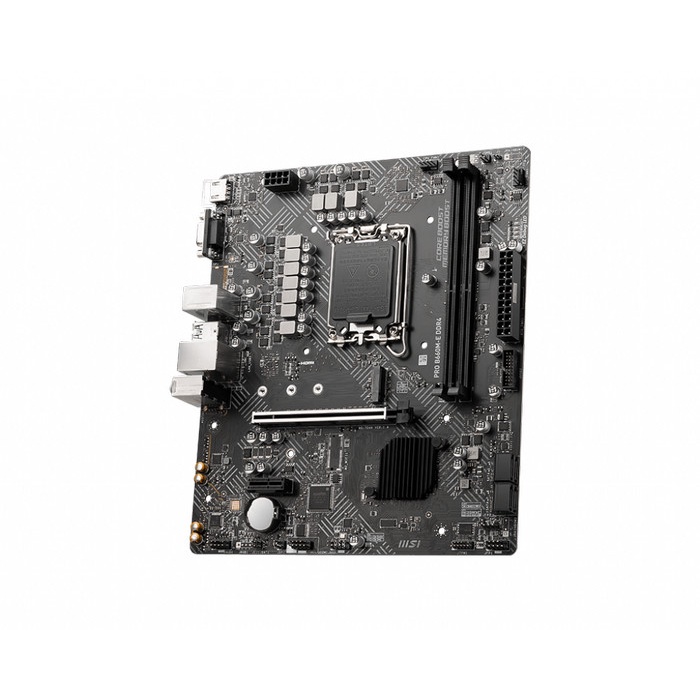

Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)

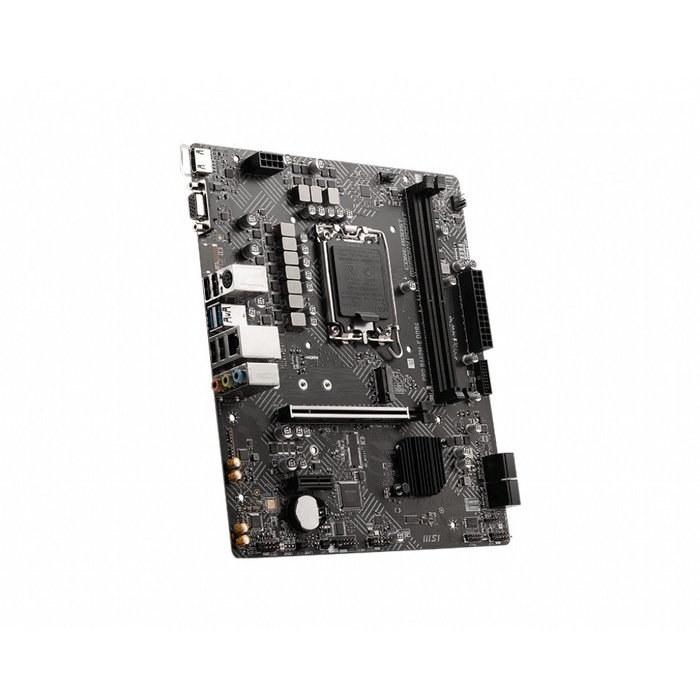

Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)

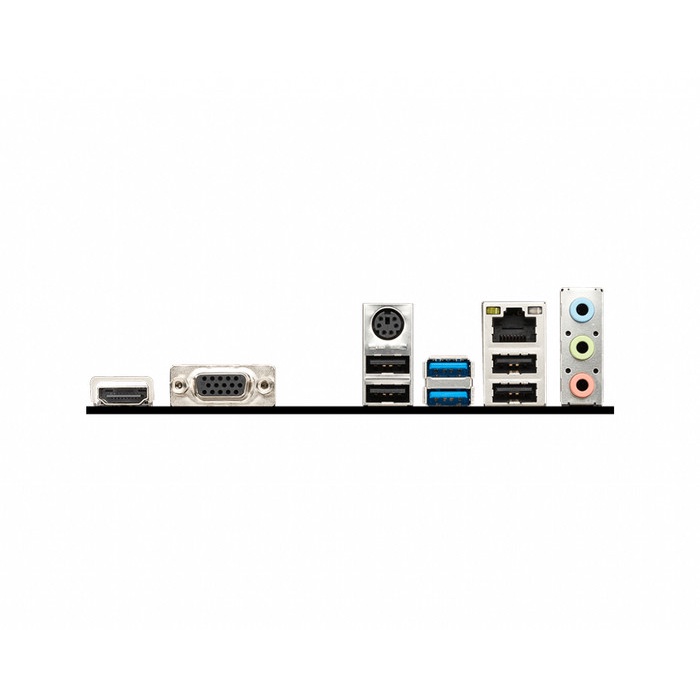

Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)

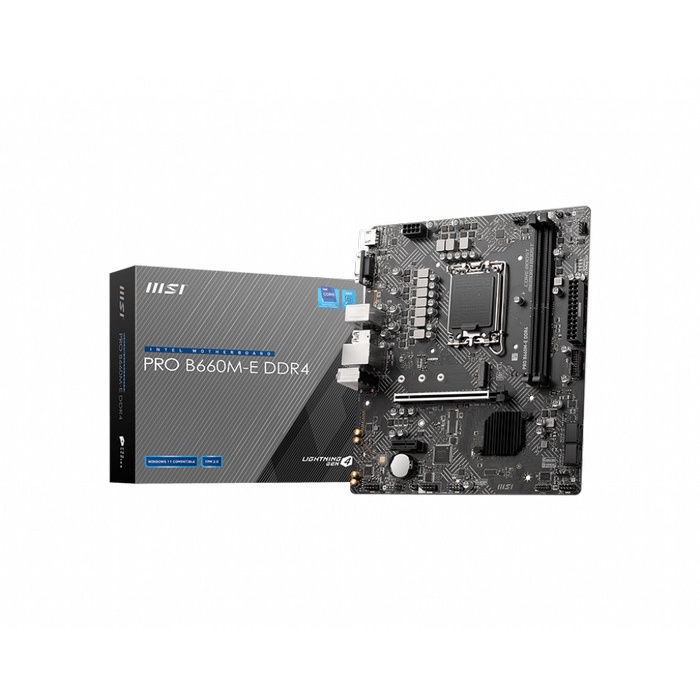

Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)
Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)
Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)
Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)
Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)
Motherboard MSI PRO B660M-E DDR4 (Intel LGA 1700, Gen12)
