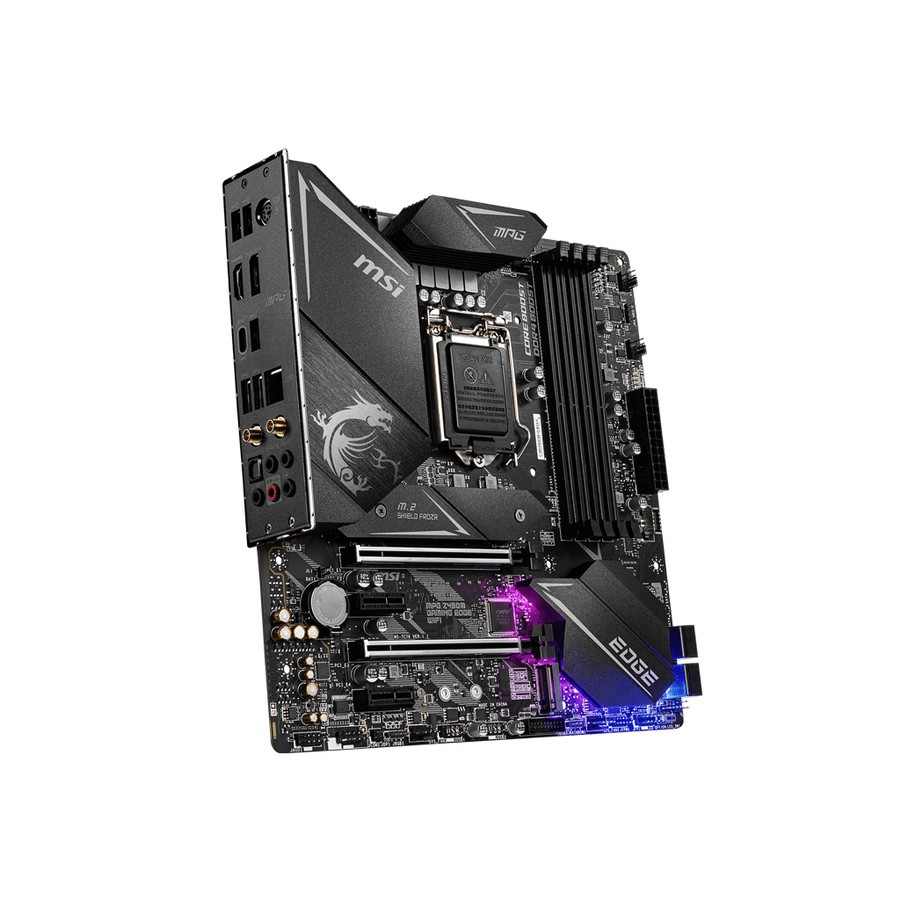

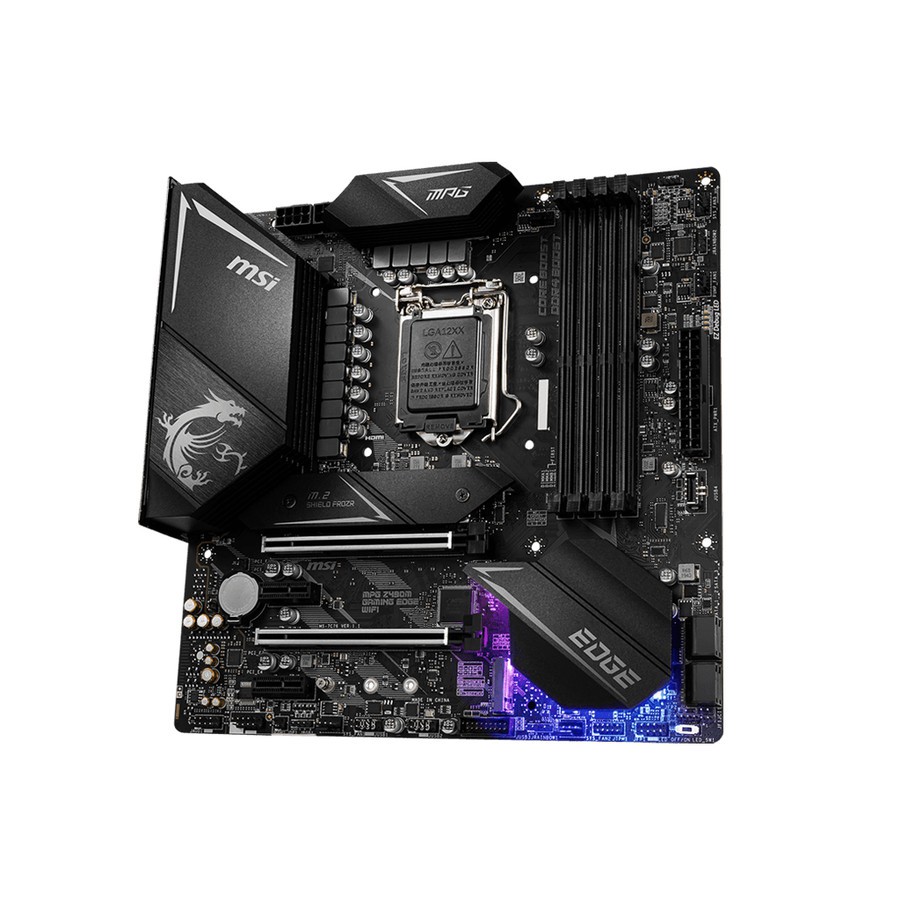

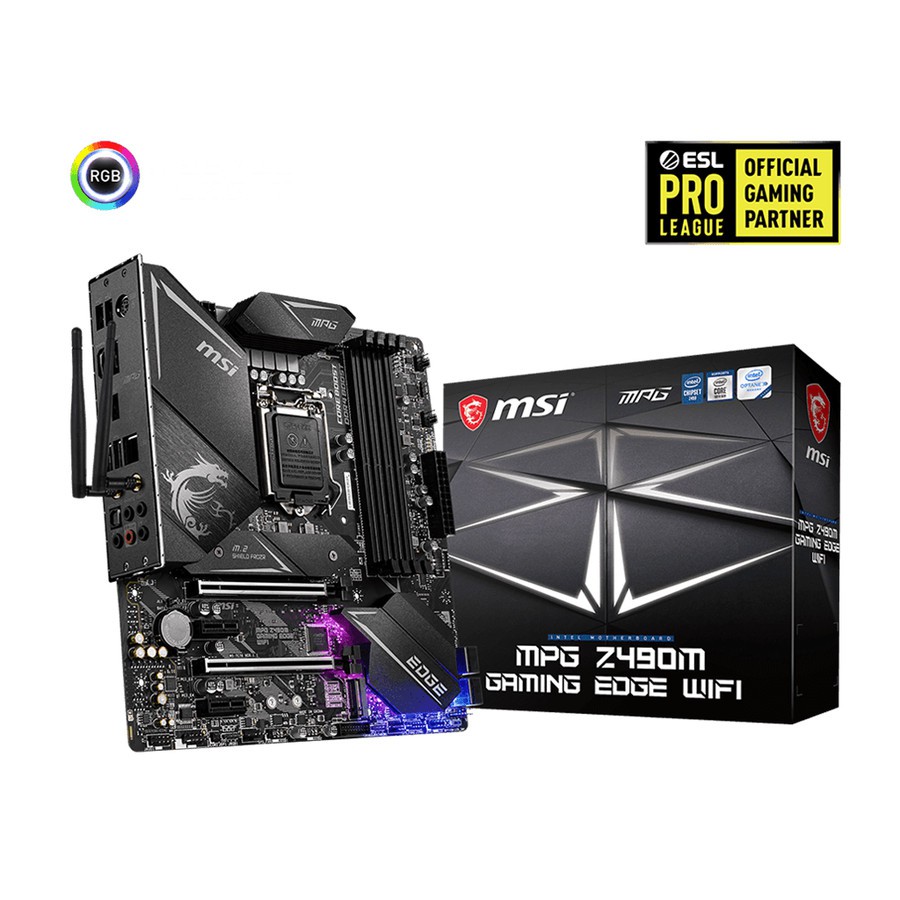

Motherboard MSI MPG Z490M GAMING EDGE WIFI

Detail Motherboard MSI MPG Z490M GAMING EDGE WIFI

FEATURE

• 2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager delivers better network experience.

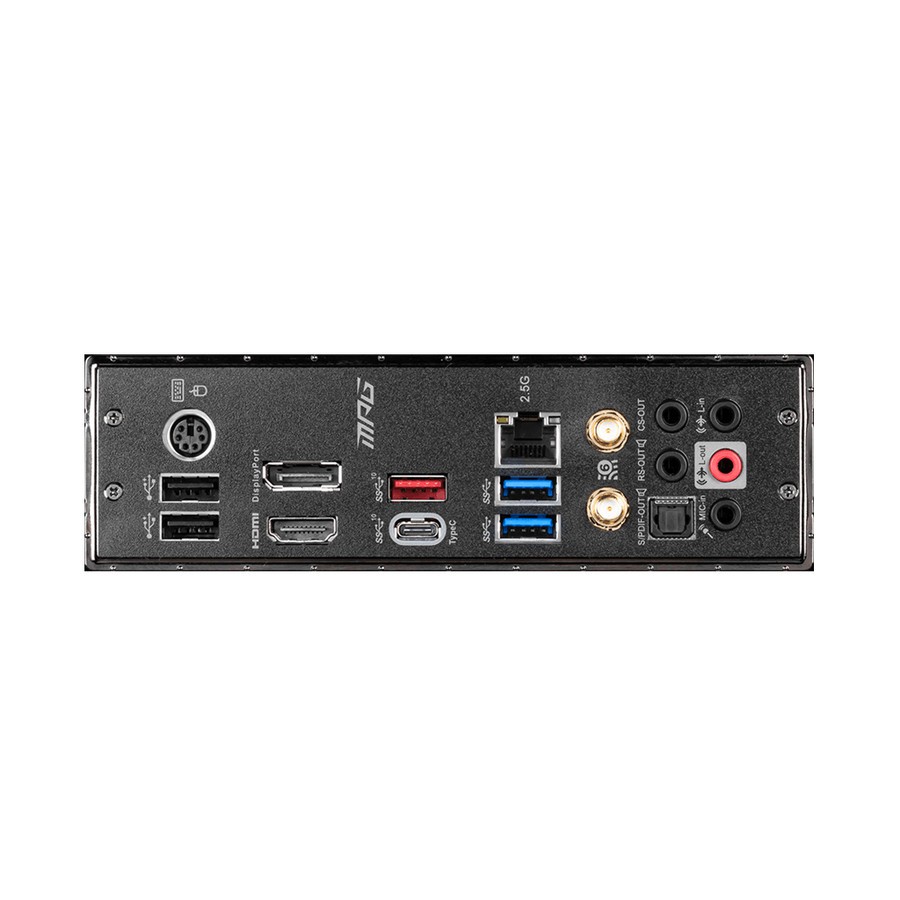

• Aluminum Cover
Fully aluminum IO cover provide the maximum surface of heat dissipation, ready for breaking the world record!
• WIFI 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
• DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.
• Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
• M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
• Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
• Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects, controlled in one click!

SPECIFICATION

• Model Name MPG Z490M GAMING EDGE WIFI
• CPU Support Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors
• CPU Socket LGA 1200
• Chipset Intel® Z490 Chipset
• Graphics Interface 2x PCI-E 3.0 x16 slots
Support 2-Way NVIDIA® SLI™ / 2-Way AMD® CrossFire™ Technology
• Display Interface DisplayPort, HDMI - Requires Processor Graphics
• Memory Support 4 DIMMs, Dual Channel DDR4-4800(OC)
• Expansion Slots 2x PCIe 3.0 x1 slots
• Storage 2x M.2 slots, support Intel® Optane™ Technology. 4x SATA 6Gb/s
• USB ports 3 x USB 3.2 Gen 2 10Gbps (2 Type-C + 1 Type-A) +
4 x USB 3.2 Gen 1 5Gbps (4 Type-A) + 6 x USB 2.0
• LAN Realtek® 8125B 2.5G LAN
• WiFi / BT Intel® Wi-Fi 6 AX201, Bluetooth 5.1
• Audio 8-Channel(7.1) HD Audio with Audio Boost 4
• Form Factor Micro-ATX
