Motherboard MSI MAG B760M MORTAR WIFI Mainboard Mobo B760 LGA 1700

Detail Motherboard MSI MAG B760M MORTAR WIFI Mainboard Mobo B760 LGA 1700

Motherboard MSI MAG B760M MORTAR WIFI Mainboard Mobo B760 LGA 1700

Garansi Resmi 3 Tahun

CHIPSET
INTEL B760

CPU SUPPORT
Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA1700

MEMORY
4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7000+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile

ONBOARD GRAPHICS
1x HDMI
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCIE1 PCIe 5.0 supports up to x16 (From CPU)
PCIE2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE
2x M.2 slot
M.21 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.22 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN
Realtek 2.5Gbps LAN

WIRELESS / BLUETOOTH
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 10 build 21H1 and Windows 11.

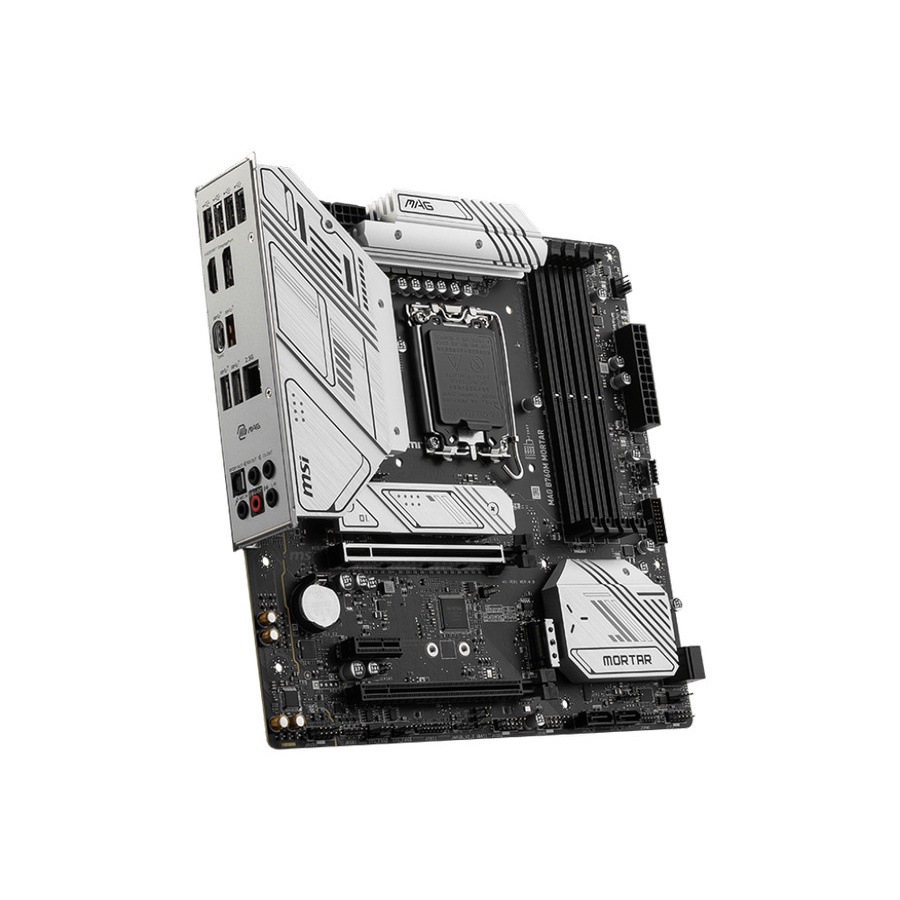

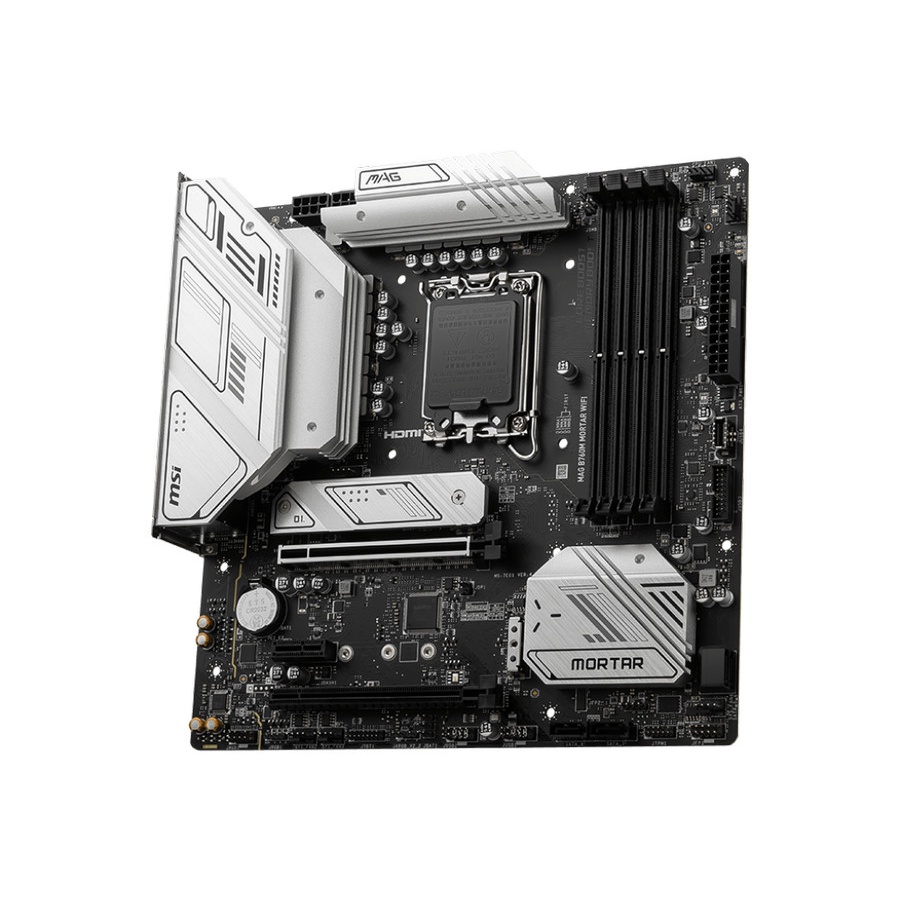

Gambar produk
