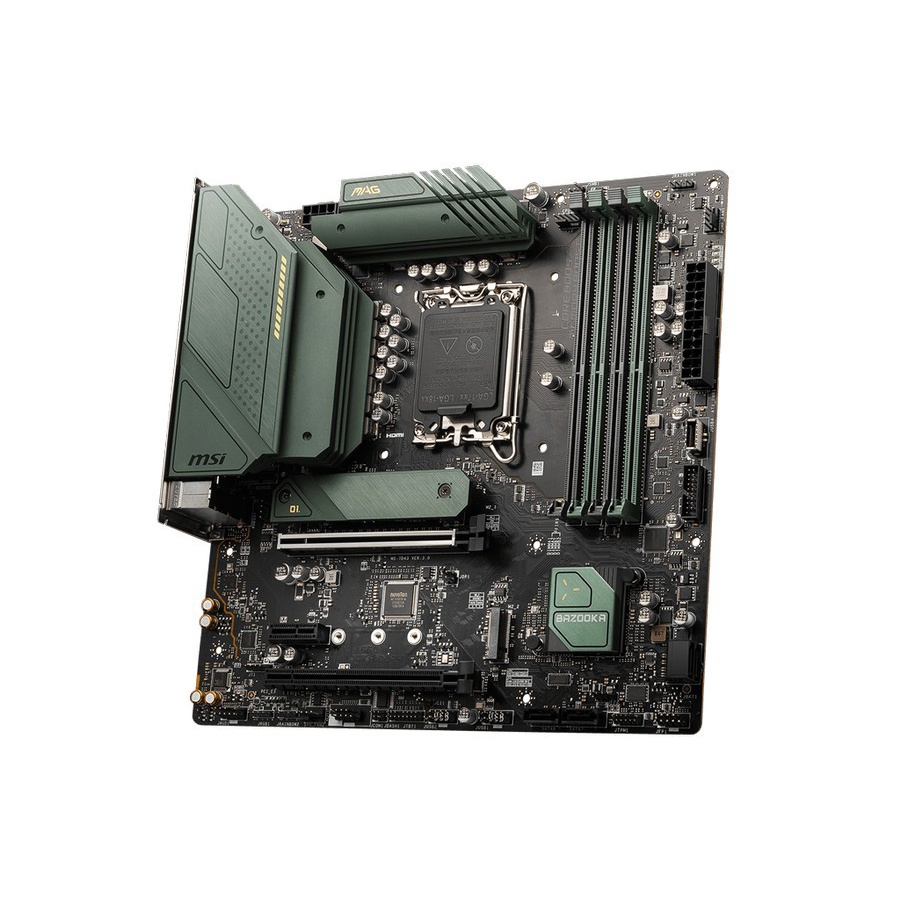

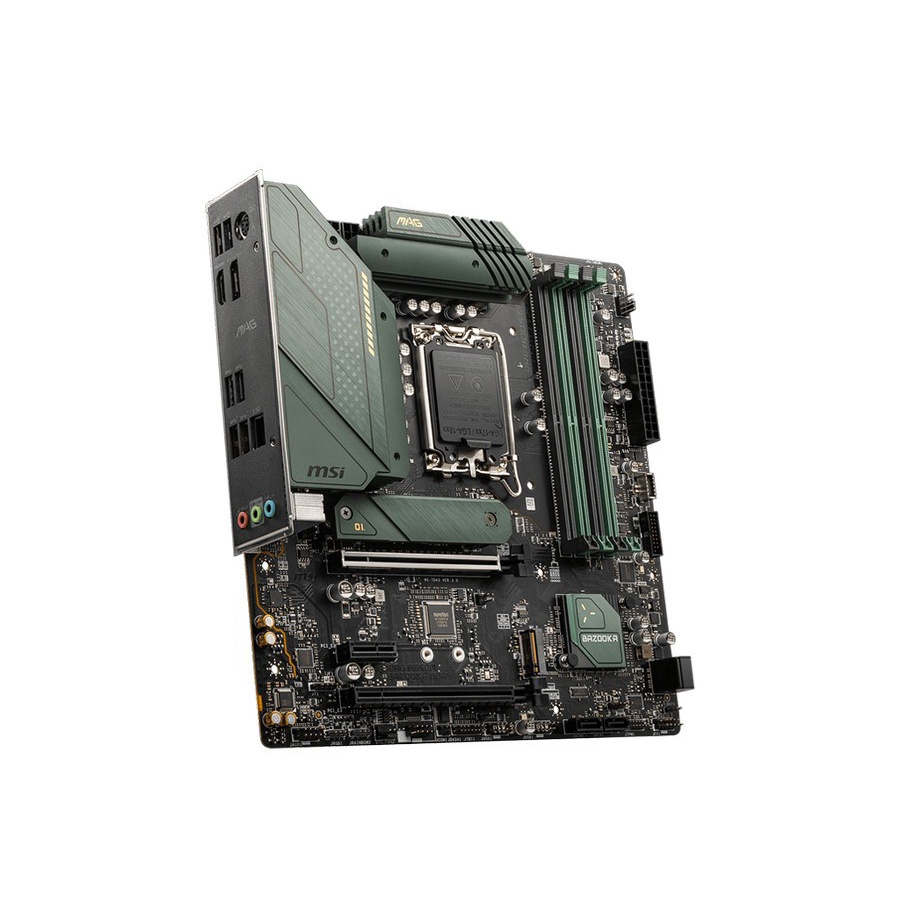

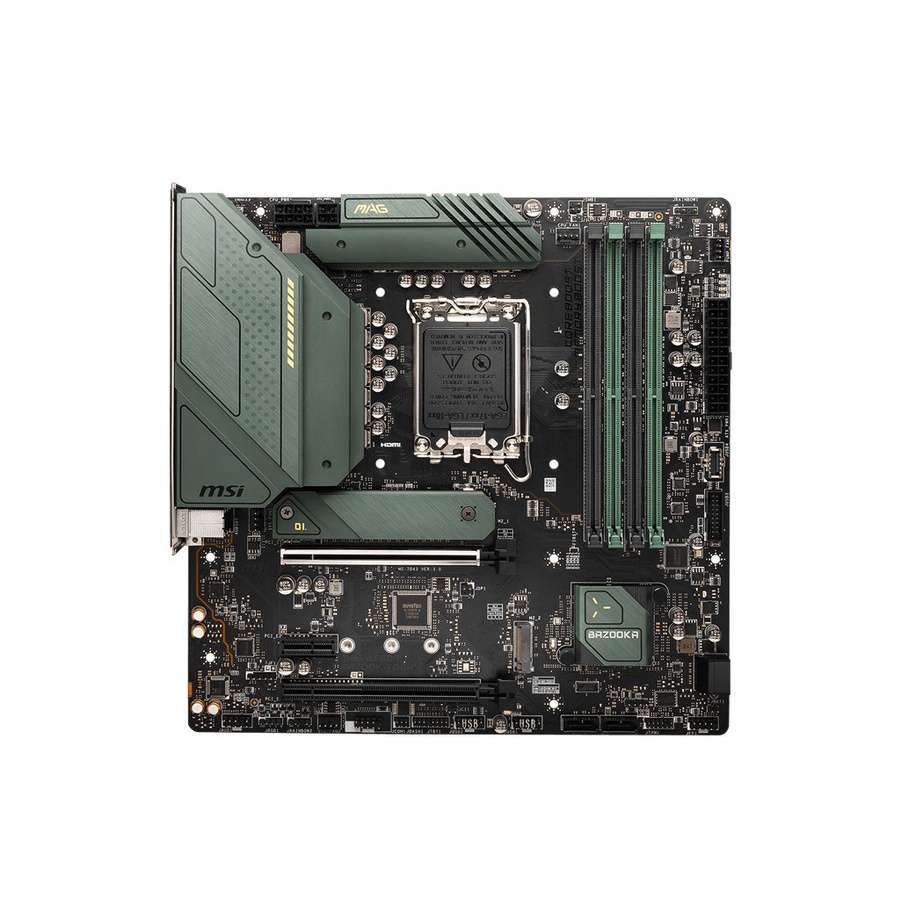

Motherboard MSI MAG B660M BAZOOKA DDR4 Intel Socket LGA1700

Detail Motherboard MSI MAG B660M BAZOOKA DDR4 Intel Socket LGA1700

SPECIFICATIONS
Model Name MAG B660M BAZOOKA DDR4
CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® B660 Chipset
Graphics
Interface
1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot
Support AMD® CrossFire™ Technology
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4800+ (OC)
Expansion Slot 1x PCIe 3.0 x1 slot
Storage 2x M.2 Gen4 x4 64Gbps slots,
supports Intel® Optane™ Technology
4 x SATA 6Gb/s
USB ports 2x USB3.2 Gen2 10Gbps (2 Type-A),
5x USB 3.2 Gen1 5Gbps (4 Type-A + 1 Type-C),
6x USB 2.0
LAN Realtek® RTL8125BG 2.5Gbps LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and
performance reliability.

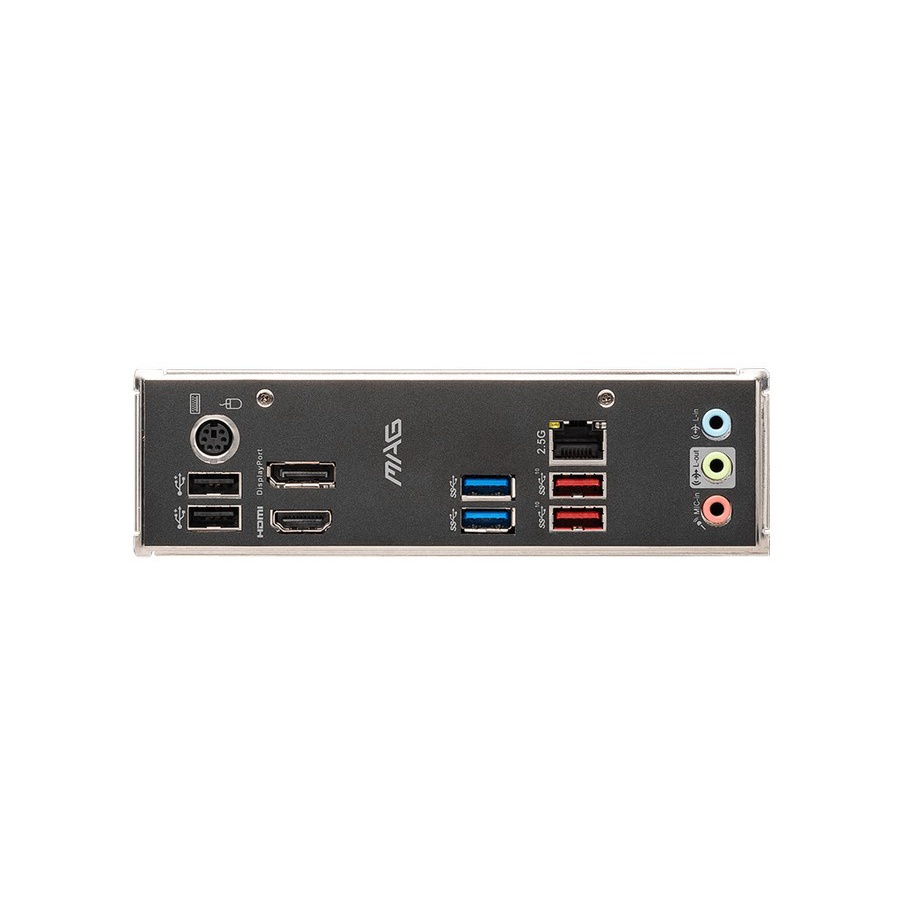

CONNECTIONS
1. Keyboard / Mouse
3. 2.5G LAN
5. USB 2.0
7. USB 3.2 Gen 1 5Gbps Type-A
2. DisplayPort
4. Audio Connectors
6. HDMI
8. USB 3.2 Gen 2 10Gbps Type-A
