Motherboard msi mag b560 tomahawk wifi bluetooth intel gen 11 ddr4 lga 1200 sata3 m.2 lightning gen 4 type-c gigabit usb3.2

Detail Motherboard msi mag b560 tomahawk wifi bluetooth intel gen 11 ddr4 lga 1200 sata3 m.2 lightning gen 4 type-c gigabit usb3.2

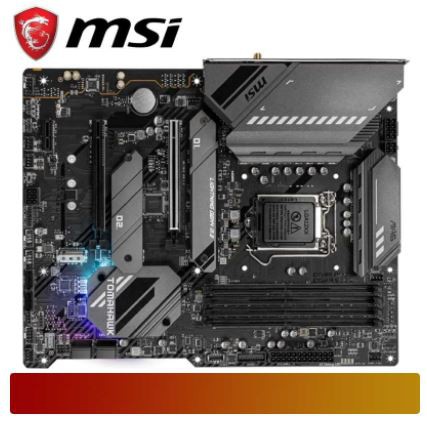

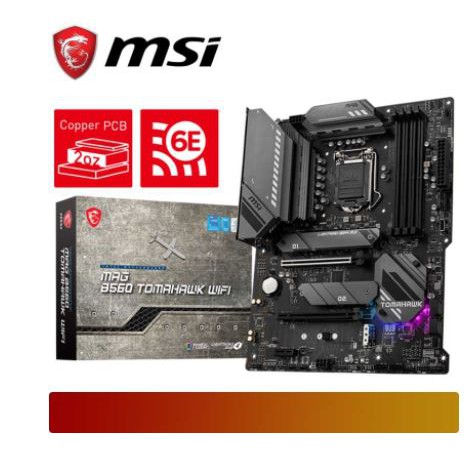

MSI MAG B560 TOMAHAWK WIFI (LGA1200, B560, DDR4, USB3.2)

Processor
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron®1
Processor socket LGA1200

Chipset
Intel® B560 Chipset

Memory
4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Expansion Slot
2x PCIe x16 slots
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel ® CPU
PCI_E2 (from B560 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from B560 chipset)

Onboard Graphics
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
Available only on processors featuring integrated graphics
Graphics specifications may vary depending on the CPU installed.

Ready Stock !

Gambar produk
