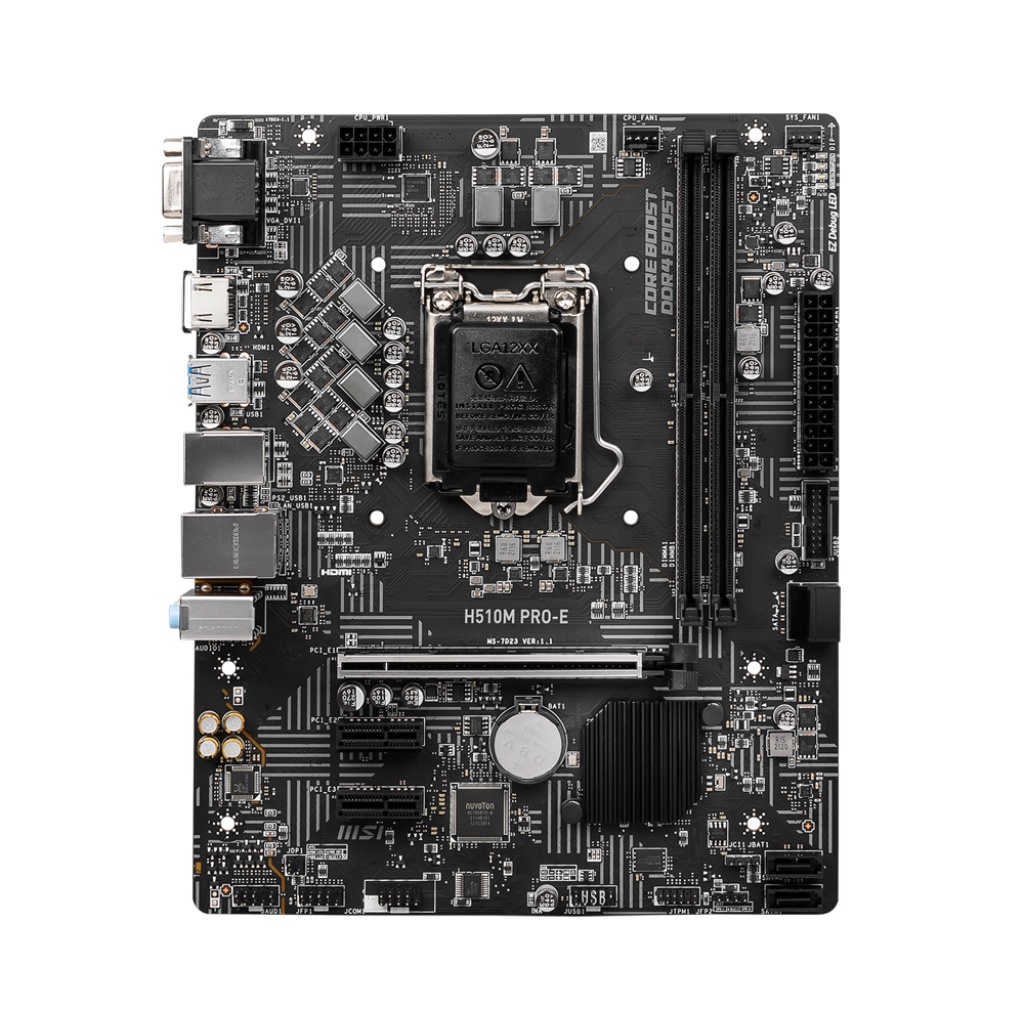

Motherboard MSI H510M PRO E Micro ATX LGA 1200 H510 DDR4 USB 3.2

Detail Motherboard MSI H510M PRO E Micro ATX LGA 1200 H510 DDR4 USB 3.2

MOTHERBOARD MSI H510M PRO E (LGA1200, H510, DDR4, USB 3.2, SATA3)

Spesifikasi :

• Processor : Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
• Chipset : Intel® H510 Chipset
• Operating System : Support for Windows® 10 64-bit

Memory
• 2x DDR4 memory slots, support up to 64GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Expansion Slot
• 1x PCIe x16 slot (From CPU)
• Support up to PCIe 4.0 for 11th Gen Intel® CPU
• Support up to PCIe 3.0 for 10th Gen Intel® CPU
• 2x PCIe 3.0 x1 slots (From PCH)

Onboard Graphics
• 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
• 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

Storage
• 4x SATA 6Gb/s ports (From H510 Chipset)

USB
• Intel® H510 Chipset
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

Audio
• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

LAN
• 1x Realtek® RTL8111 Gigabit LAN controller

Back panel ports :
1. VGA
2. HDMI
3. USB 3.2 Gen 1 5Gbps Type-A
4. Mouse / Keyboard
5. LAN port
6. Audio connector
7. USB 2.0
8. USB 2.0

Dimensions :
• mATX Form Factor
• 9.3 x 7.5 in. (23.6 cm x 19.0 cm)

Garansi Resmi 3 Tahun

Gambar produk
