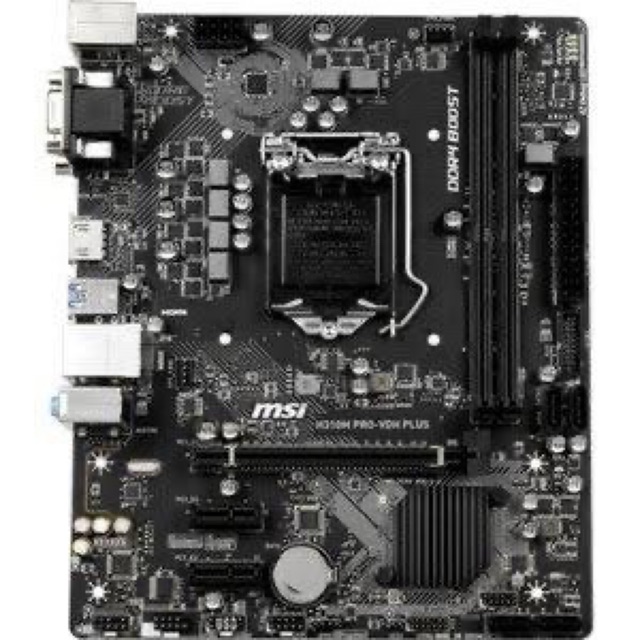

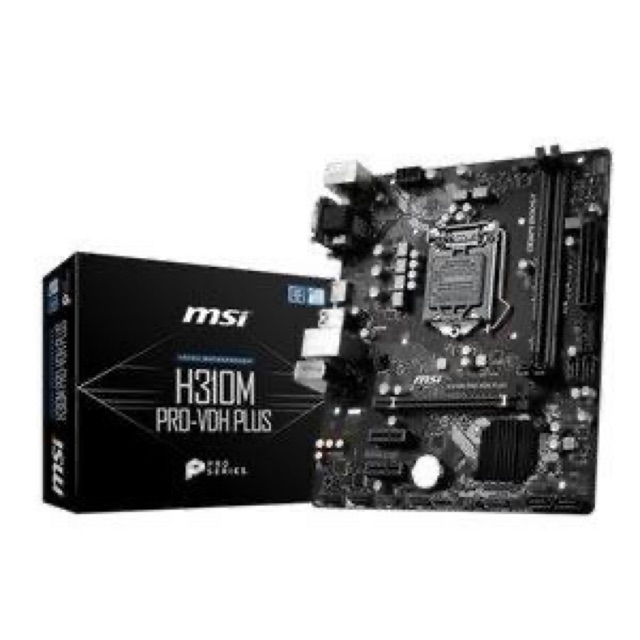

Motherboard MSI H310M ProVDH

Detail Motherboard MSI H310M ProVDH

FEATURES
Supports 9th / 8th Gen Intel®️ Core™️ / Pentium®️ Gold / Celeron®️ processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

TECH SPECS
SOCKET: 1151
CPU (MAX SUPPORT): i9
CHIPSET: Intel®️ H310 Chipset
DDR4 MEMORY: 2666/ 2400/ 2133 MHz
MEMORY CHANNEL: Dual
DIMM SLOTS: 2
MAX MEMORY (GB): 32
PCI-EX16: 1
PCI-E GEN: Gen3
PCI-EX1: 2
SATAIII: 4
M.2 SLOT: 1
TPM (HEADER): 1
LAN: 10/100/1000*1
USB 3.1 PORTS (FRONT): 2(Gen1, Type A)
USB 3.1 PORTS (REAR): 2(Gen1, Type A)
USB 2.0 PORTS (FRONT): 2
USB 2.0 PORTS (REAR): 4
SERIAL PORTS(FRONT): 1
AUDIO PORTS (REAR): Realtek®️ ALC887 Codec
DVI-D: 1
VGA: 1
HDMI: 1
DIRECTX: 12
FORM FACTOR : m-Atx
