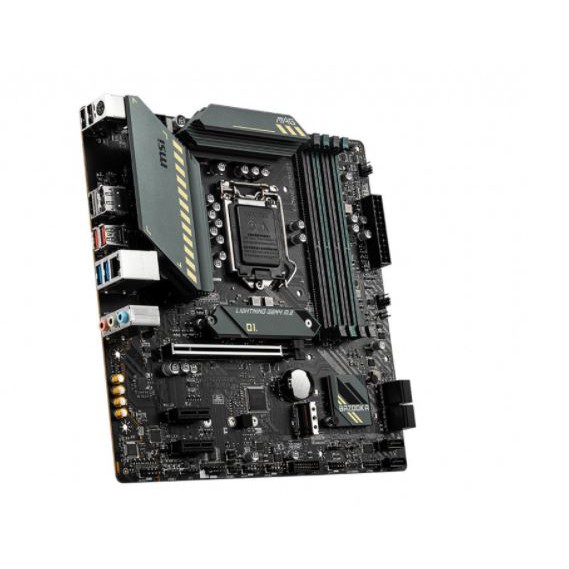

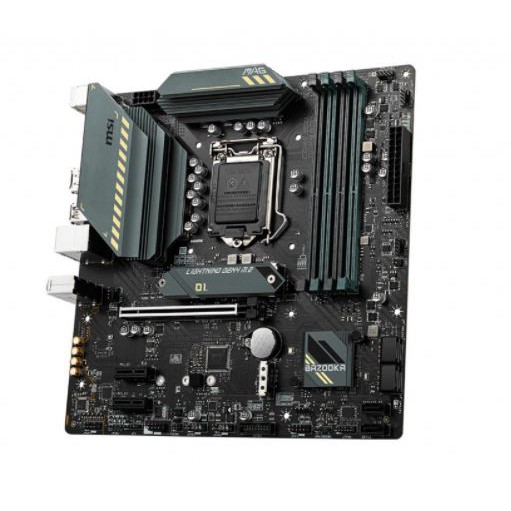

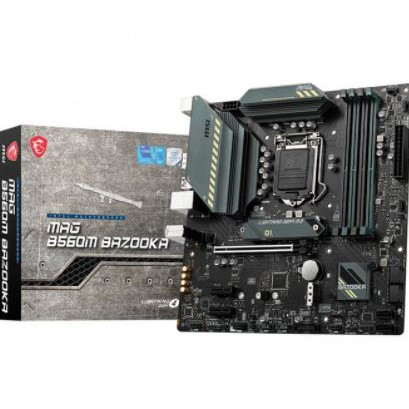

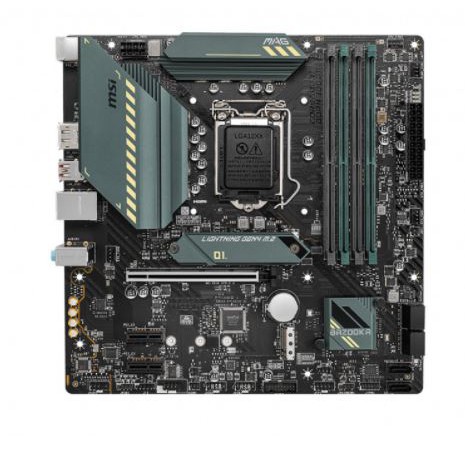

Motherboard msi b560m bazooka intel gen 11 b560 ddr4 lga1200 sata3 m.2 lightning gen 4 usb3.2 gigabit
Deskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Motherboard msi b560m bazooka intel gen 11 b560 ddr4 lga1200 sata3 m.2 lightning gen 4 usb3.2 gigabit
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Motherboard msi b560m bazooka intel gen 11 b560 ddr4 lga1200 sata3 m.2 lightning gen 4 usb3.2 gigabit
Max overclocking frequency:1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1200
CHIPSET
Intel® B560 Chipset
MEMORY
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
1x PCIe x16 slot
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
2x PCIe 3.0 x1 slots
PCI_E2 & PCI_E3 (From B560 chipset)
ONBOARD GRAPHICS
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
USB
Intel® B560 Chipset
2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors
Ready Stock !
