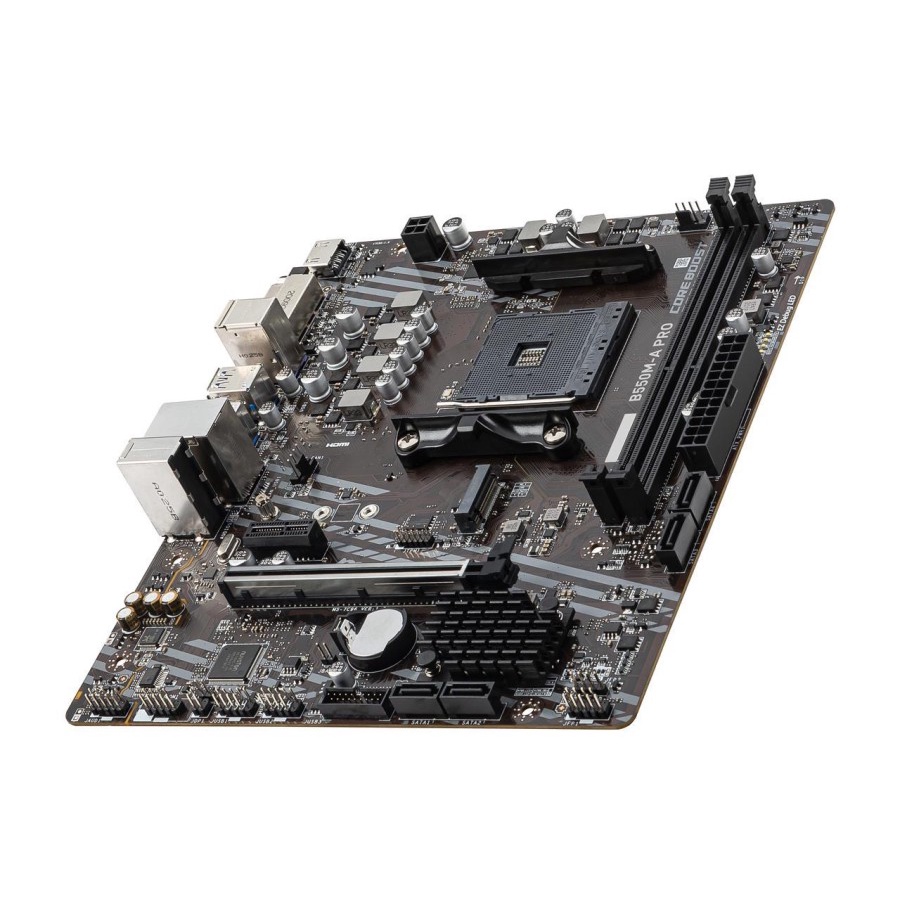

Motherboard MSI B550M-A Pro Micro ATX

Detail Motherboard MSI B550M-A Pro Micro ATX

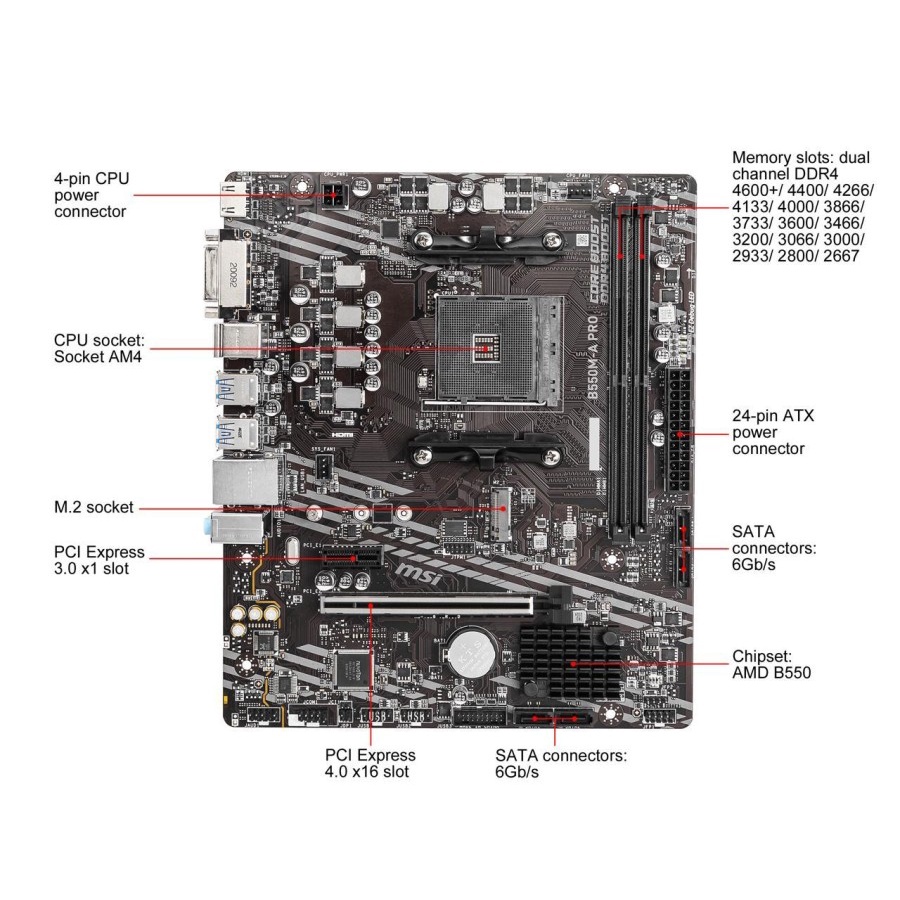

Spesifikasi :

- Socket : AMD Socket AM4
- CPU (Max Support) : Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors
- Chipset : AMD® B550 Chipset
- DDR4 Memory : Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Memory Channel : Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
- Memory Channel : Dual
- DIMM Slots : 2
- Max Memory (GB) : 64
- PCI-E x16 : 1
- PCI-E Gen : Gen4 / Gen3
- PCI-E x1 : 1
- SATAIII : 4
- M.2 Slot : 1
- RAID : 0/1/10
- TPM (header) : 1

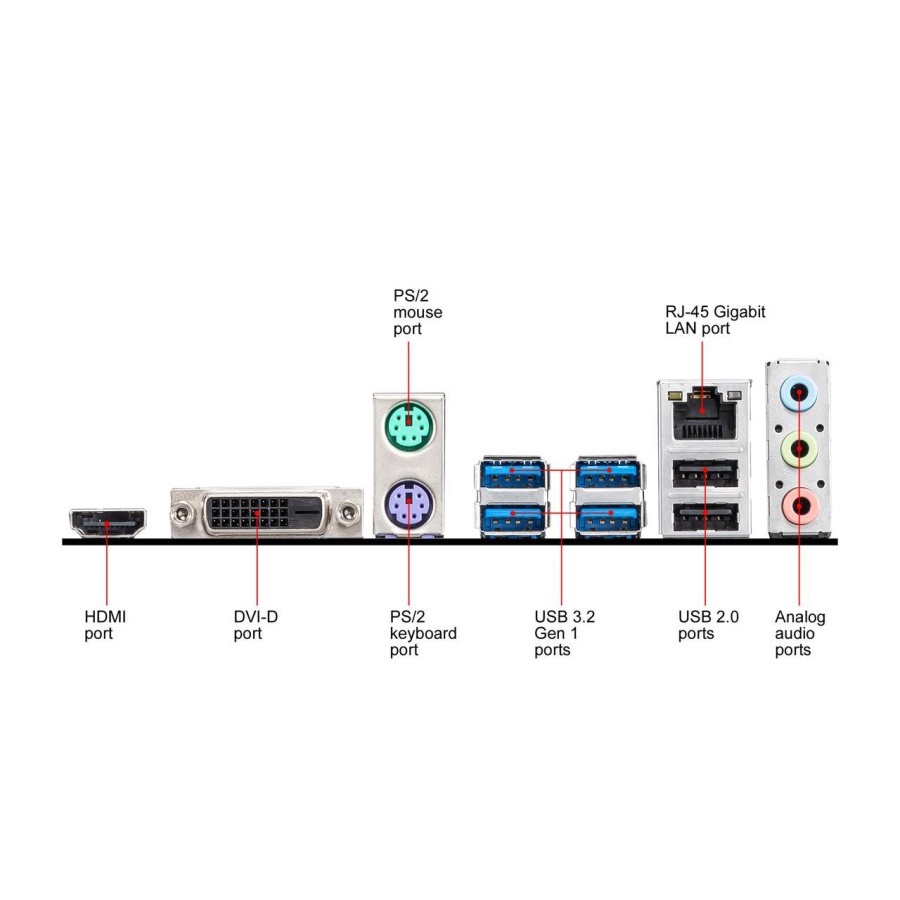

- LAN : 1x Realtek® RTL8111H Gigabit LAN
- USB 3.2 ports (Front) : 2(Gen 1, Type A)
- USB 3.2 ports (Rear) : 4(Gen 1, Type A)
- USB 2.0 ports (Front) : 4
- USB 2.0 ports (Rear) : 2 (Type A)
- Serial ports(Front) : 1
- Audio ports (Rear) : Realtek® ALC892/ALC897 Codec
- DVI-D : 1
- HDMI : 1
- DirectX : 12
- Form Factor : MATX
- Operating System : Support for Windows® 10 64-bit

Gambar produk
