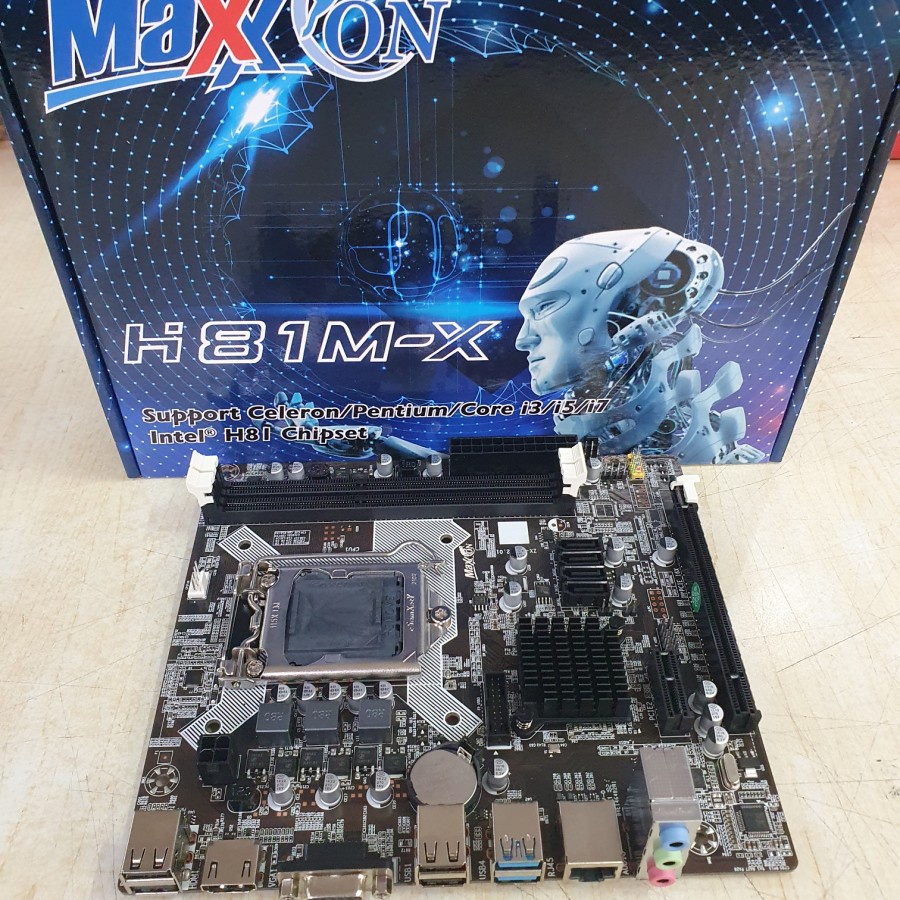

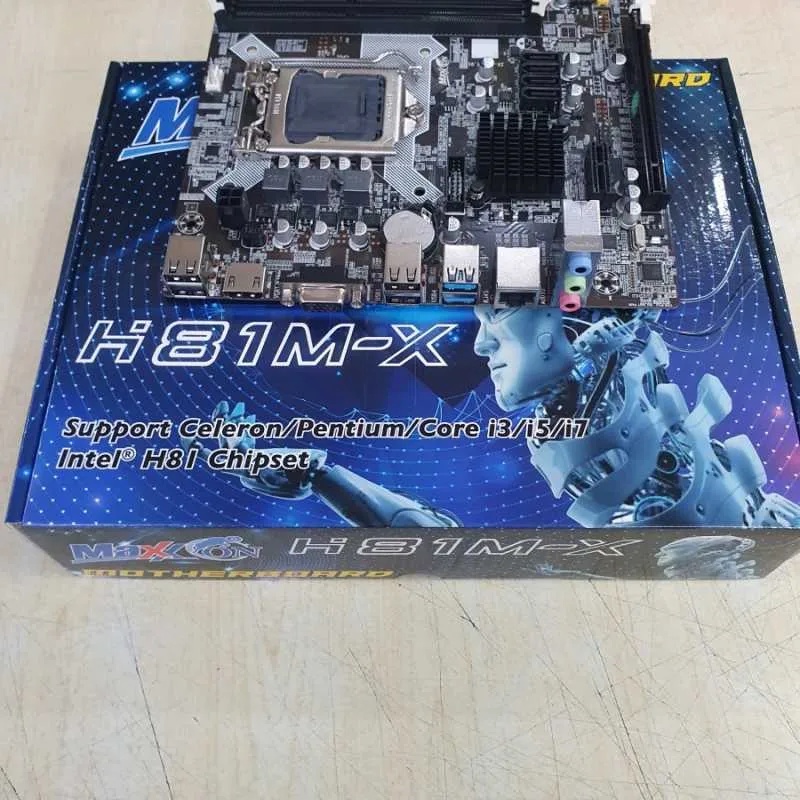

Detail Motherboard Maxx On H81M X MaxxON H81 Socket 1150
Processor Support Intel Core i7/i5/i3/Pentium/ Celeron processors in the LGA1150 package. Support Intel 4th generation multi-core processors Chipset Intel H81 On-Board graphics Integrated Graphics Processor Memory Support Dual Channel DDR3 1333/1600MHz Memory, up to 16GB Dimm 2 x Memory Slots (Max. up to 8GB each) LAN Realtek RTL8105E 100M / RTL8111E 1000 Mbps on board Audio Chip integrated by Realtek ALC662 on board, Supports 6-channel audio-out Slot 1 x PCI Express x16 Slot Storage 4 x SATA II port Internal I/O Ports 1 x 24-pin ATX Power Connetor 1 x 4-pin ATX 12V Power Connetor 1 x USB 2.0 connector support additional 2 USB 2.0 ports 1 x Front panel audio connector 1 x System Panel connector Back I/O Ports 1 x USB 2.0 keyboard port 1 x USB 2.0 mouse port 1 x VGA 1 x HDMI 2 x USB 2.0 2 x USB 3.0 1 x LAN jack 3 x Audio jack BIOS AMI BIOS Form Factor Micro ATX - 190*170 mm Accessories 1 x Driver CD 1 x User Manual 1 x I/O Backboard
