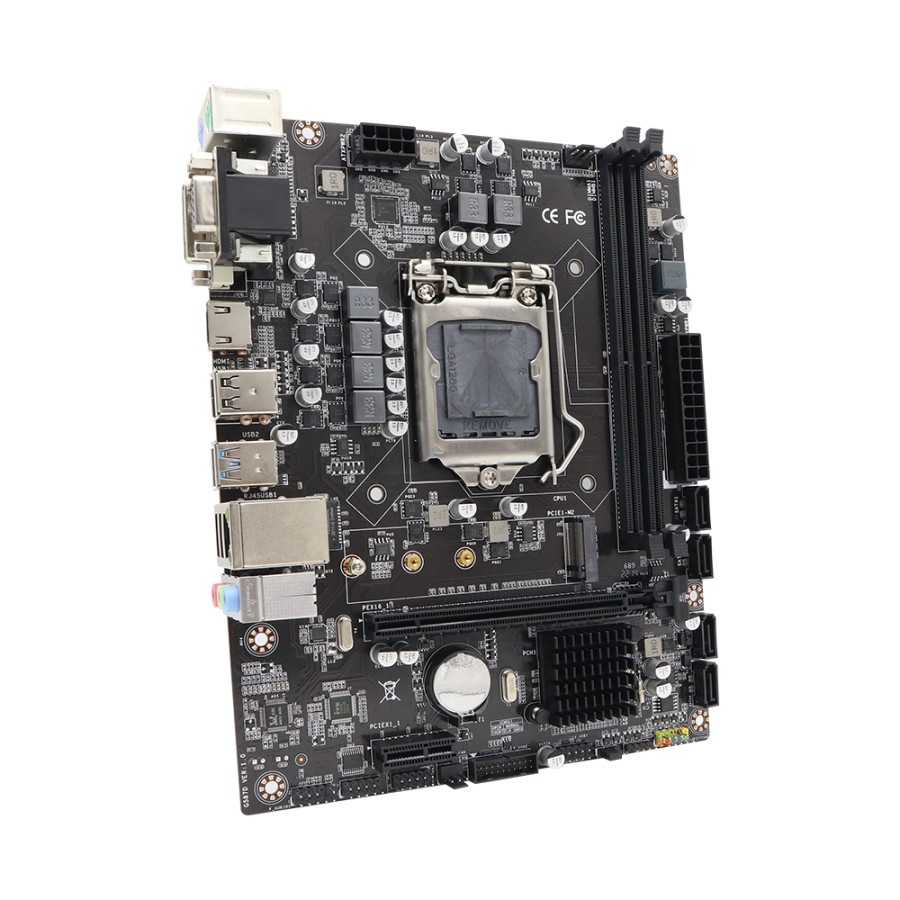

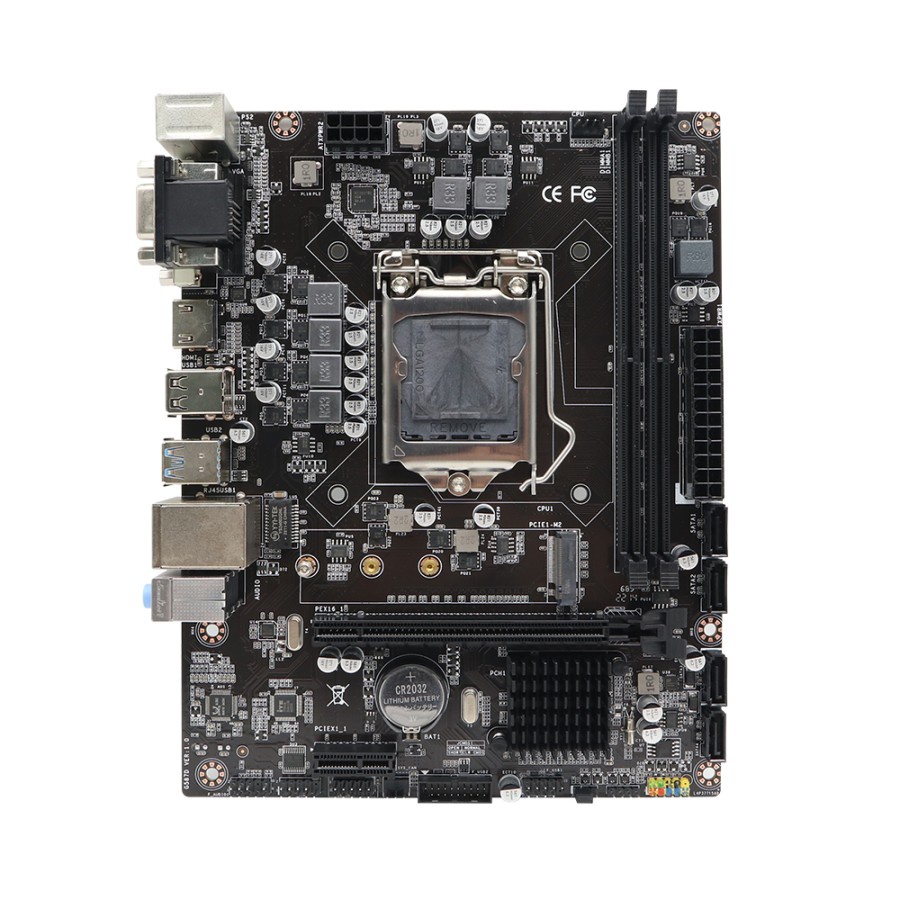

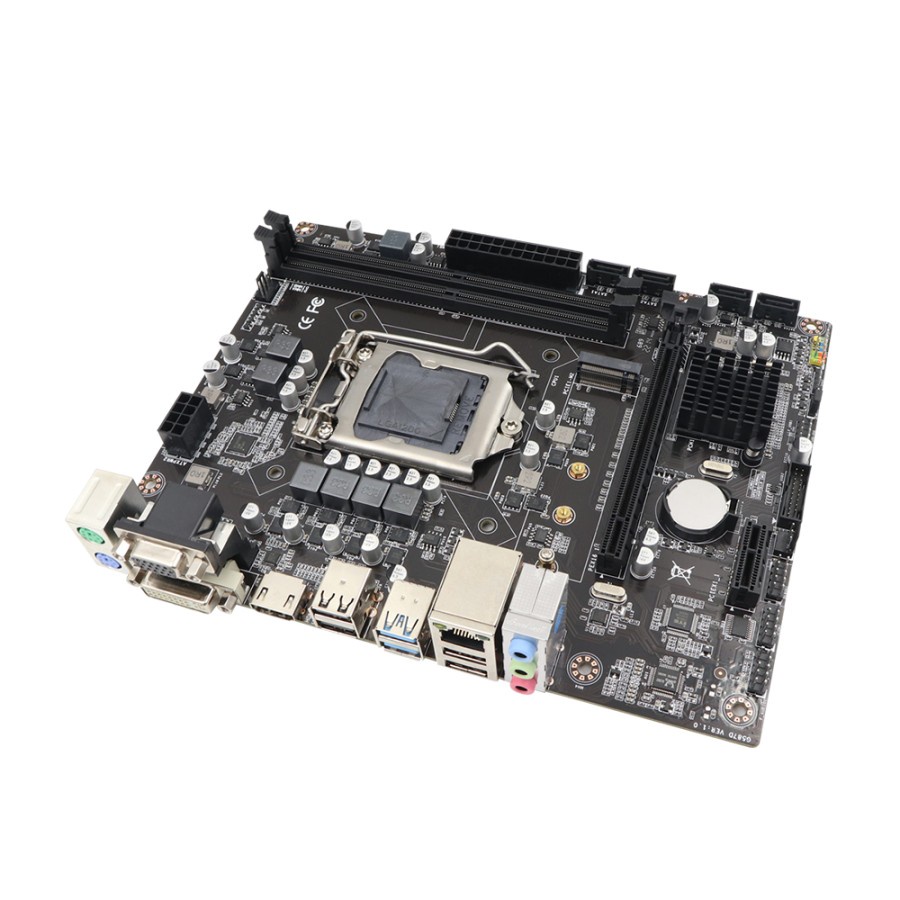

Motherboard KAIZEN H510 Socket LGA 1200 DDR4 Mobo H510 INTEL

Detail Motherboard KAIZEN H510 Socket LGA 1200 DDR4 Mobo H510 INTEL

SPESIFIKASI MOTHERBOARD:

Platform INTEL Socket 1200
Model Name H510
Chipset Intel® 510
CPU Supports Intel Core™ i3/ Core™ i5 / Core™ i7 / Core™ i9 Processors, Supports Intel 10/11th Generation
FSB 2133/2400/2666MHz
Memory Dual Channel DDR4 2133/2400/2666 (2 slots)
Dimm 2 x Memory Slots (Max. capacity of system memory 32GB)
Onboard Graphics Intel® HD Graphics
PCI / PCI-E Slots "1 x PCI Express 4.0 x16 slot,
1 x PCI Express 4.0 x1 slot"
Storage 4 x SATA III, 1 x M.2 (PCIe NVMe Gen3 )
IDE N/A
Audio Realtek ALC 6-channal HD Audio Codec onboard
LAN Realtek RTL8111 1000Mbps Ethernet on board

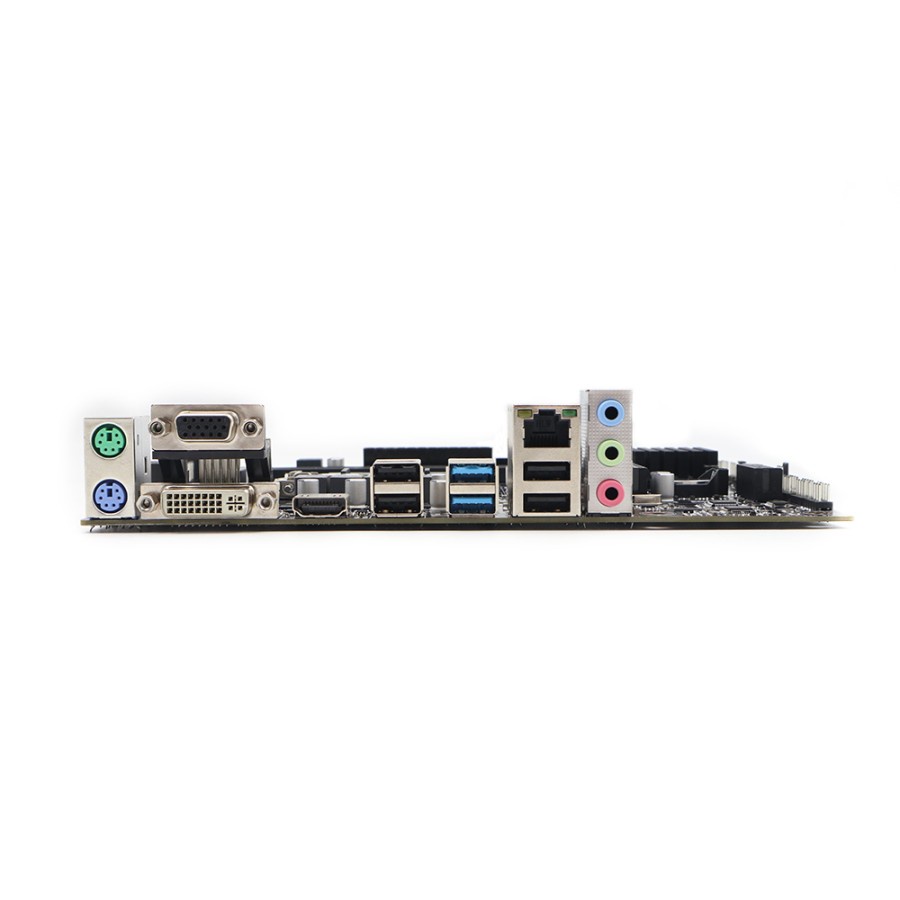

Back Panel I/Os 1 x DVI Port
1 x HDMI Port
1 x D-Sub (VGA) Port
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jack (Line in / Front Speaker / Microphone)
ON-Board Pinheaders / Connectors "1x USB 2.0 pinheader (supports additional 2 USB 2.0s),
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) "
1 x Front Panel Audio pinheader, 1 x Com
BIOS UEFI BIOS
Form Factor Micro-ATX (17*21cm)
Mounting 6 mounting holes
Accessories 1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
*Dimension: - Micro-ATX (17x21Cm)
*Warranty : 3 Years By KAIZEN INDONESIA

PAKET DENGAN RAM DAN SSD KAIZEN SILAHKAN CHAT TOKO KAMI , AKAN DAPAT DISKON LEBIH BANYAK LAGII

Gambar produk
