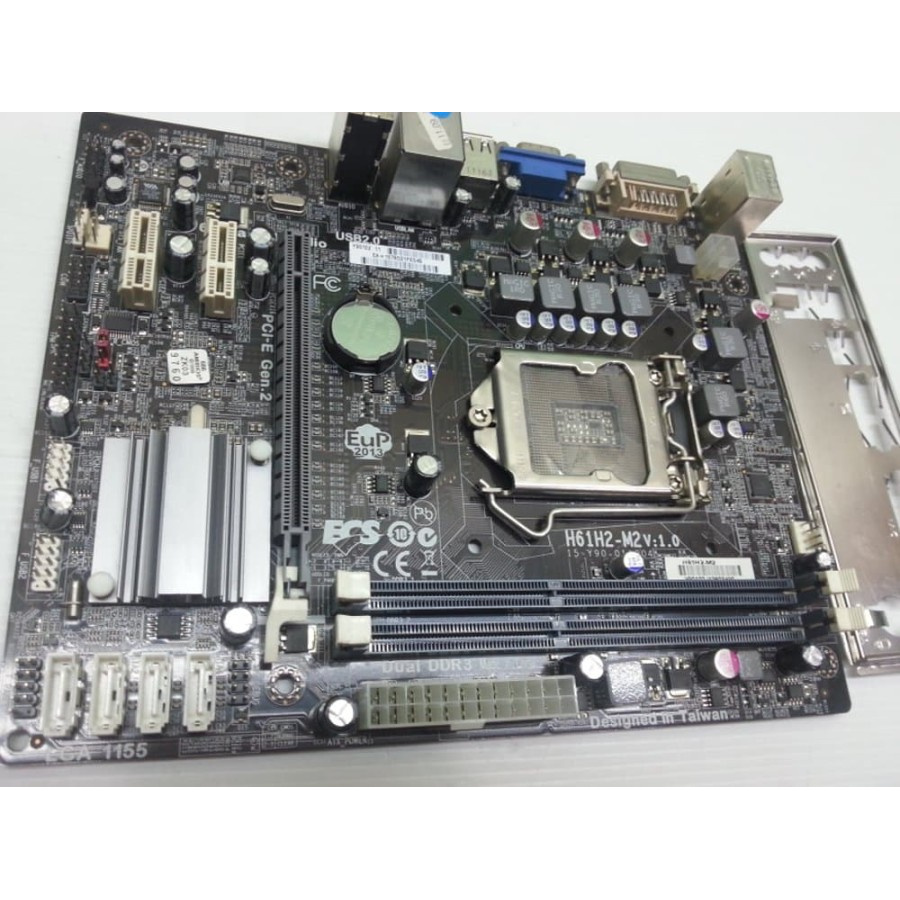

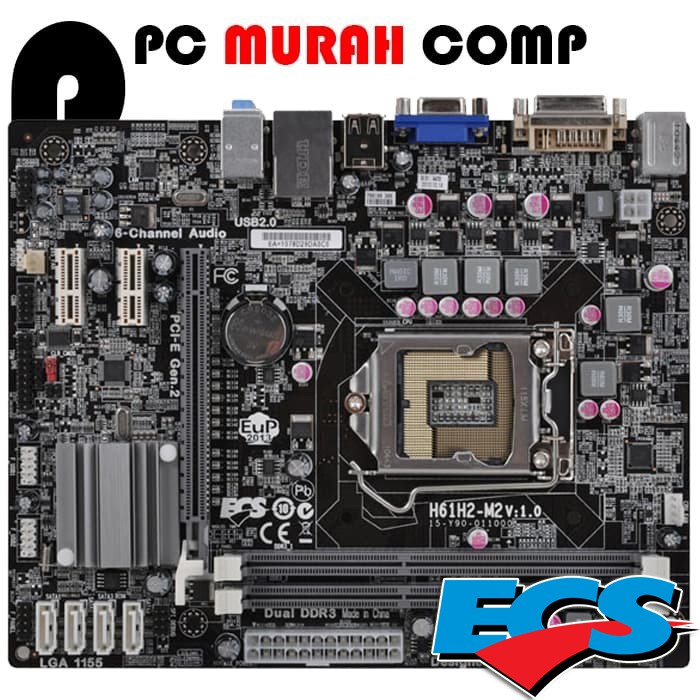

Motherboard Intel LGA 1155 H61 ONBOARD

Detail Motherboard Intel LGA 1155 H61 ONBOARD

Ready Motherboard H61

Supports new 2nd & 3rd gen Intel Core family, Pentium, Celeron series processors in LGA1155 socket
DMI 5.0GT/s
5 Phase Thermal Design Power
VRD 12.0
Solid Capacitor for CPU side
Supports Intel Turbo Boost 2.0 Technology
Supports Intel Hyper-Threading Technology

MEMORY
Dual-channel DDR3 Memory architecture
Supports DDR3 1600*/1333/1066 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*
Intel extreme Memory Profile (XMP) 1.3/1.2 Memory Modules
* Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation
* Intel Ivy Bridge CPU required

Storage
Support by Intel H61 Express Chipset
4 X Serial ATAII 3Gb/s
Supports NCQ, AHCI and "Hot Plug" functions

LAN
Atheros AR8152-B 10/100Mbps Fast Ethernet Controller
(Atheros AR8151-B Gigabit Fast Ethernet Controller optional)
Wake-On-LAN
USB
Support by Intel H61 Express Chipset
8 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 4 port(s)

SILAHKAN DI ORDER
GARANSI 2 MINGGU

Gambar produk
