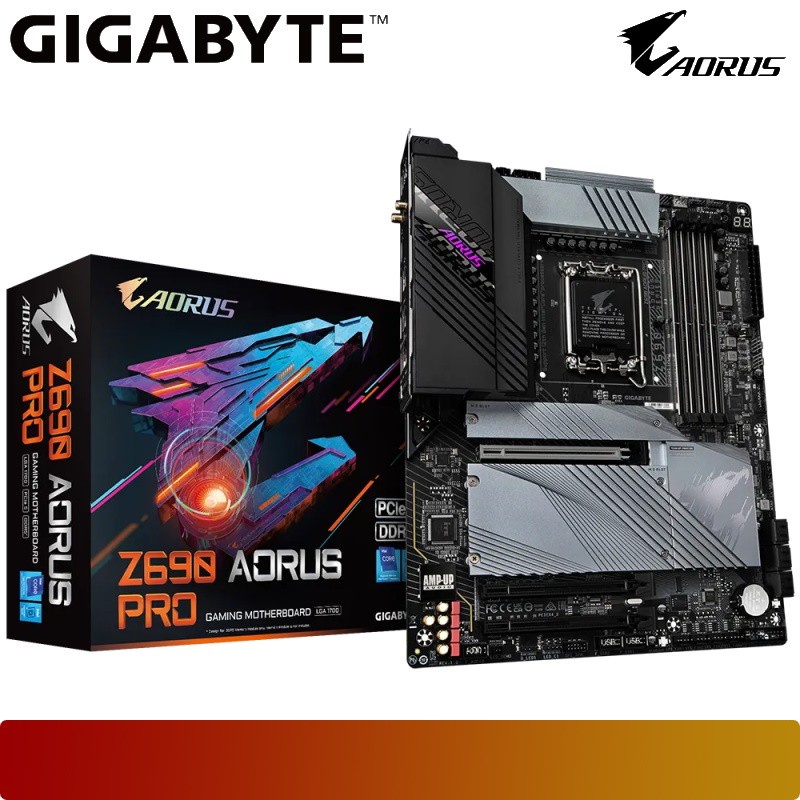

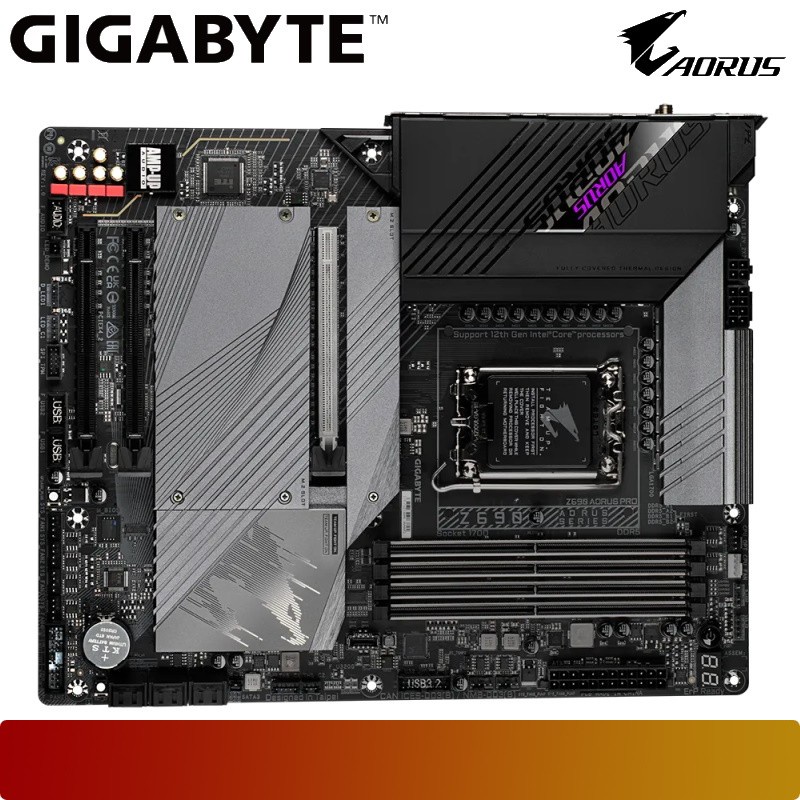

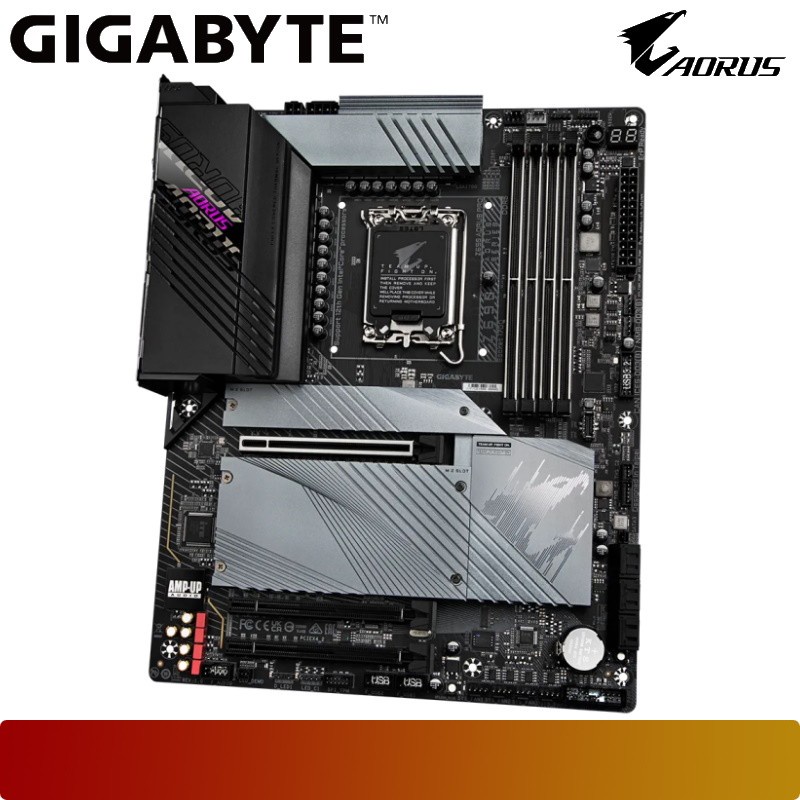

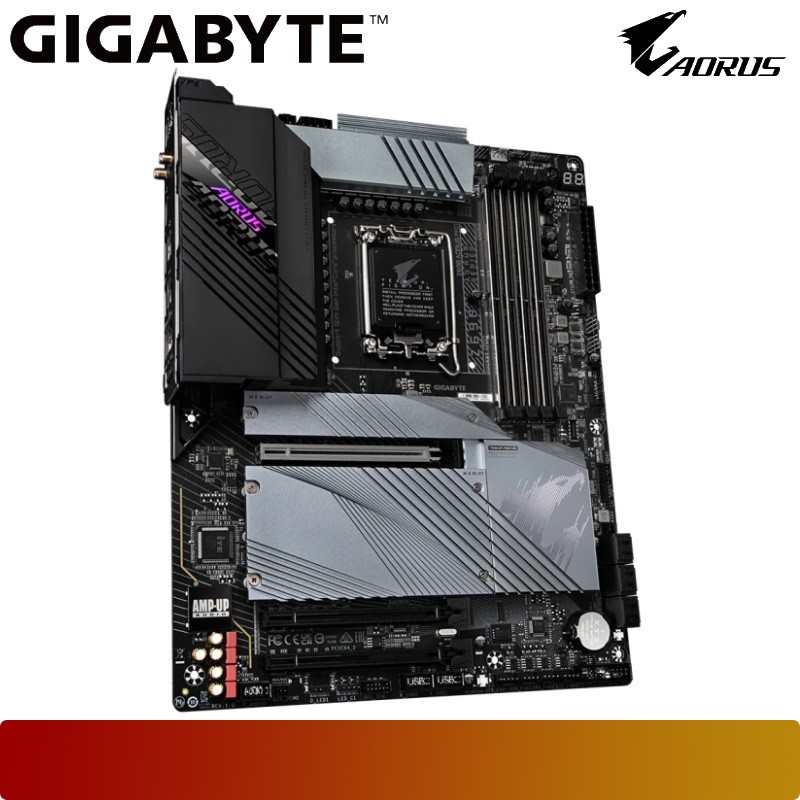

Motherboard Intel Gigabyte Z690 PRO LGA 1700 DDR5 ATX

Detail Motherboard Intel Gigabyte Z690 PRO LGA 1700 DDR5 ATX

CPU
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
- Intel Z690

Memory
4 x DIMM, Max. 128GB, DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules

Graphics
- 1 x DisplayPort
* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

Storage
- CPU:
* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
* 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
* 6 x SATA 6Gb/s connectors

Ethernet
- Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
- Intel® Wi-Fi 6 AX200:
* WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
* BLUETOOTH 5.2
* Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Form Factor
- ATX
- 30.5cm x 24.4cm
