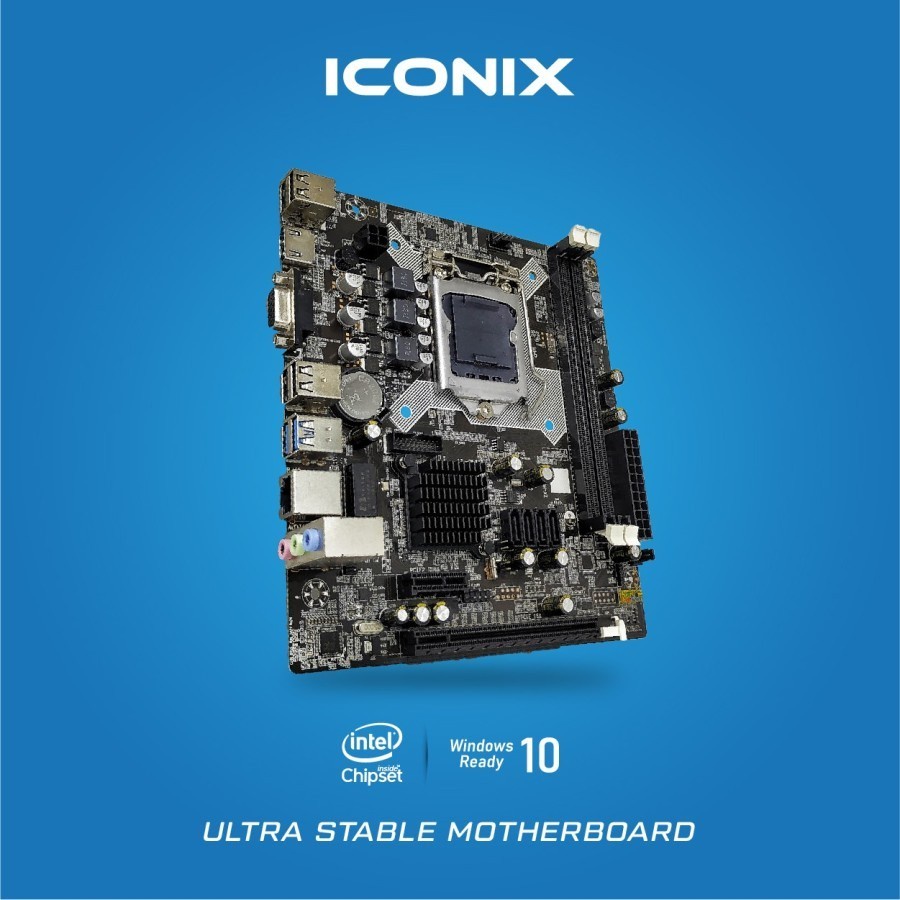

Motherboard Iconix H81 IT (LGA 1150) NEW

Detail Motherboard Iconix H81 IT (LGA 1150) NEW

-Supports 4th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket
-Supports DDR3-1600 Memory
-6 x USB 3.0 (4R/2F) + SATA 6Gb/s
-Military Class 4: Top Quality & Stability
-Military Class Essentials: Total Protection for Military Class Motherboards
-OC Genie 4: Overclock in 1 Second
-Click BIOS 4: Easily Fine-tune Your System
-4K UHD Support: Ultra-high Definition Visual Experience
-Command Center: Control & Customize Your PC Settings
-Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
-M-Flash: Simply Update & Backup Your BIOS
-Live Update 5: Easily Update The Latest BIOS & Drivers


CPU
4th Generation Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron processors for LGA 1150 socket

Chipset
Intel H81 Express

Main Memory
Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory

Slots
1 x PCIe 2.0 x16 slot
2 x PCIe 2.0 x1 slots
1 x PCI slot

On-Board SATA
SATAIII controller integrated in Intel H81 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1_2) by H81
SATAII controller integrated in Intel H81 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by H81

USB
Intel H81 Express Chipset
- 2 x USB 3.0 ports available through an onboard USB 3.0 connector
- 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through two onboard USB 2.0 connectors)
VIA VL805 Chipset
- 4x USB 3.0 ports on the back panel

Audio
Chip integrated by Realtek ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec

LAN
Supports Gb LAN 10/100/1000 by Realtek RTL8111G
