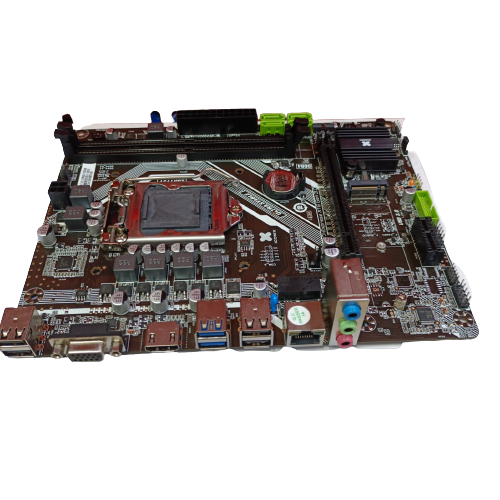

Motherboard Iconix H110 LGA 1151 Slot NVME

Detail Motherboard Iconix H110 LGA 1151 Slot NVME

Motherboard Iconix H110 LGA 1151 Slot NVME
Processor

Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0
Chipset Intel® H110 Chipset
Memory

Support
2 * DDR4 2133MHz DIMM ,Max. 64GB
Dual channel memory architecture


Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HD / VGA ports

Slots
1 x PCIe x16 3.0/2.0 slot
1 x PCIe x16 2.0 slot

Storage
1 x M.2 Socket, Supports 2260/2280 SSD
4 x SATA 6Gb/s Ports

LAN Realtek Chip, 1 x 100M（Optional 1000M）
Audio Realtek Chip, ALC 6-channel audio
USB 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)
6 * USB 2.0 port (2 at back panel, black, 2 at mid-board)


Back Panel I/O
1 x VGA Port
1 x HDMI Port
1 x LAN (RJ45) Port
2 x USB 3.1 Gen 1 Ports(Blue)
4 x USB 2.0 Ports
3 x flexible audio jacks

Internal I/O
1 x USB 3.1 Gen 1 connector（19pin)， supports 2*USB 3.1 Gen 1 ports
1 x USB 2.0 connector， supports 2*USB 2.0 ports
4 x SATA 6Gb/s Ports
2 x 4 -pin CPU_FAN/SYS_FAN connectors
1 x 24-pin ATX power connector
1 x 4-pin 12V ATX Power connectors
1 x F_Audio connector
1 x Internal Speaker connector
1 x F_Panel connector
Dimension 215 x 170mm
