MOTHERBOARD H81 VARRO AMTRON ESONIC POWERMAX INTEL LGA1150 DDR3/USB 3.0 GARANSI 1TH

Detail MOTHERBOARD H81 VARRO AMTRON ESONIC POWERMAX INTEL LGA1150 DDR3/USB 3.0 GARANSI 1TH

MOTHERBOARD H81 VARRO AMTRON ESONIC POWERMAX INTEL LGA1150 DDR3/USB 3.0 GARANSI 1TH Hoshitech computer

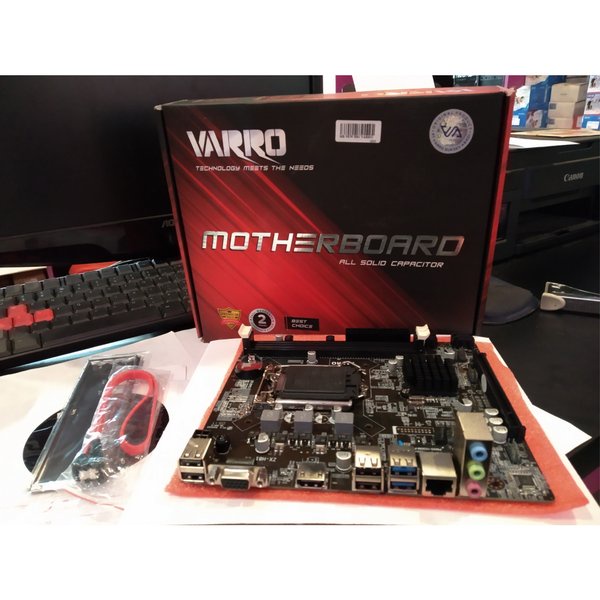

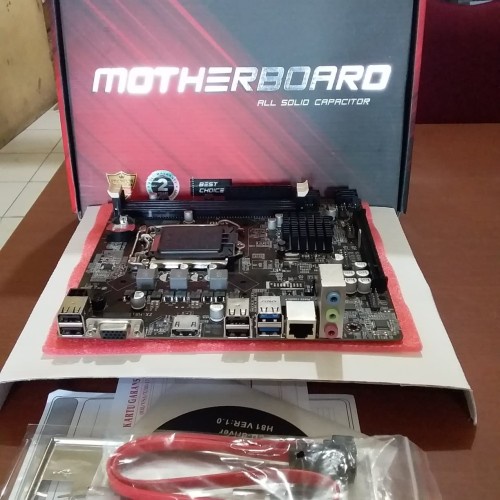

MOTHERBOARD VARRO H81 MAINBOARD SOCKET 1150 INTEL LGA 1150 DDR3
=============================
MOTHERBOARD H81 LGA1150 CPU
– Supports New 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors
– (Socket 1150)
– Intel® H81
Memory
– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
BIOS
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
Audio, Video and Networking
Graphics
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel®HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 1792MB

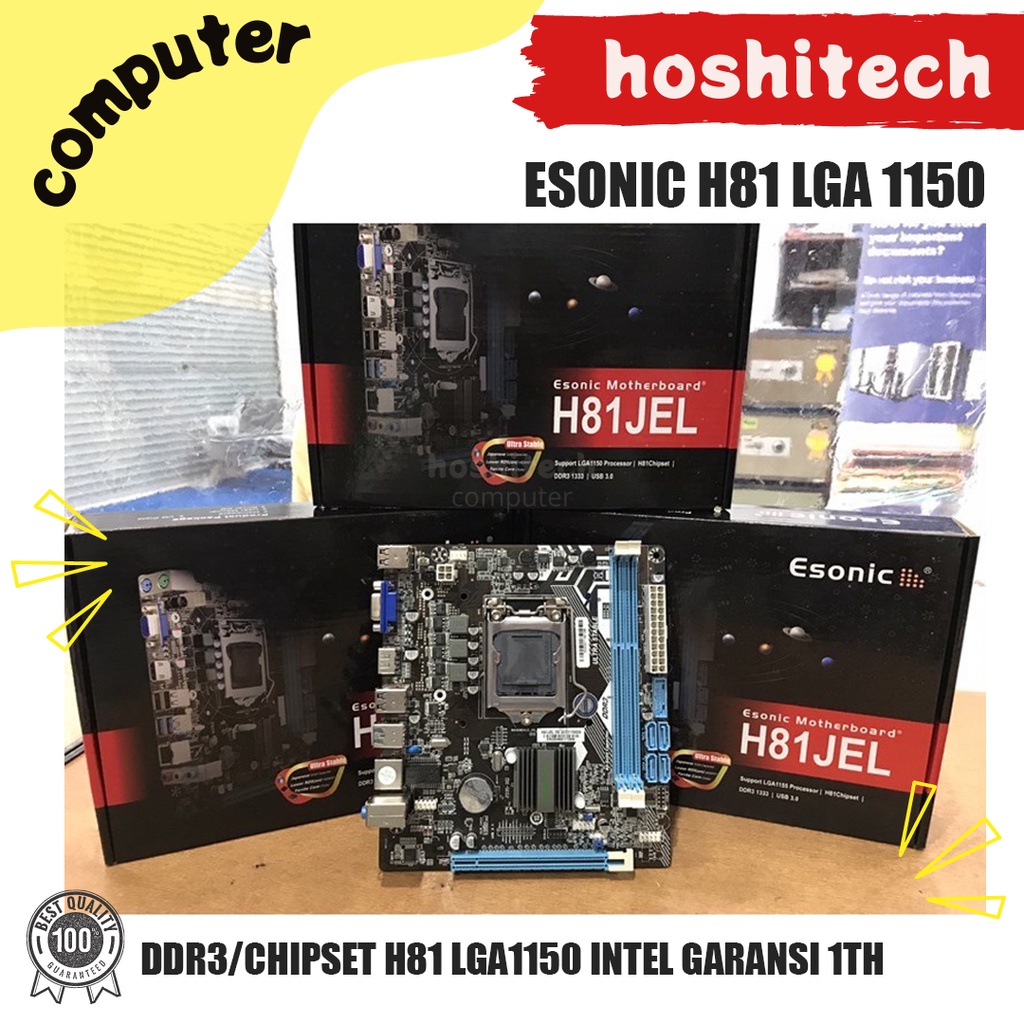

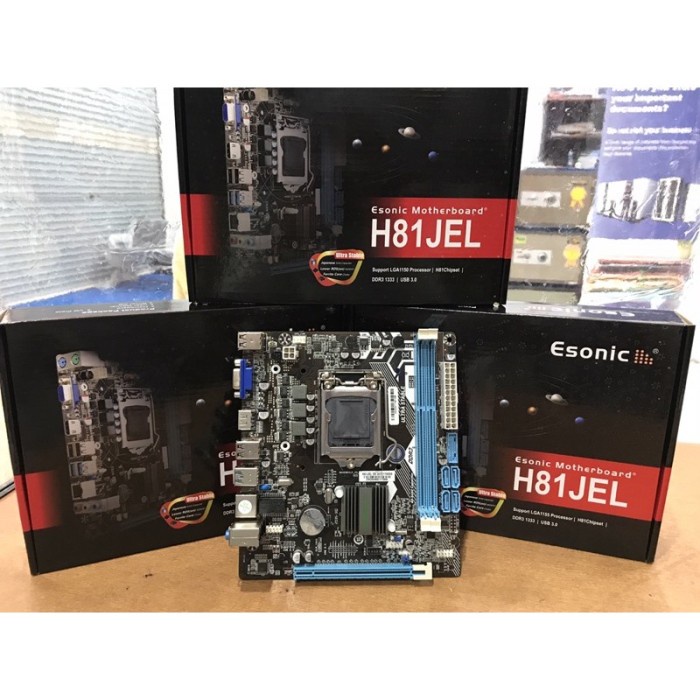

MOTHERBOARD ESONIC H81 JEL
============================
cpu (prosessor)
Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package.
L3 cache varies with CPU.
Chipset
Intel H81 Express Chipset
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Support for DDR3 1600/1333 MHz memory modules
Slots
- 1 * PCI Express
Storage
- 4* Serial ATA 2.0 devices
Internal I/O Connectors
- 1 * 24-pin ATX Power Connetor
- 1 * 4-pin ATX 12V Power Connetor
- 2 * USB connector support additional 4 USB ports
- 1 * LPC_DEBUG connector
- 1 * Front panel audio connector
- 1 * System Panel connector

Back Panel I/O Ports
- 1 * VGA
- 1 * HDMI
- 4 * USB 2.0
- 2 * USB 3.0
- 1 * RJ45(LAN) Port
- 1 * 3 Audio jacks

BIOS
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)

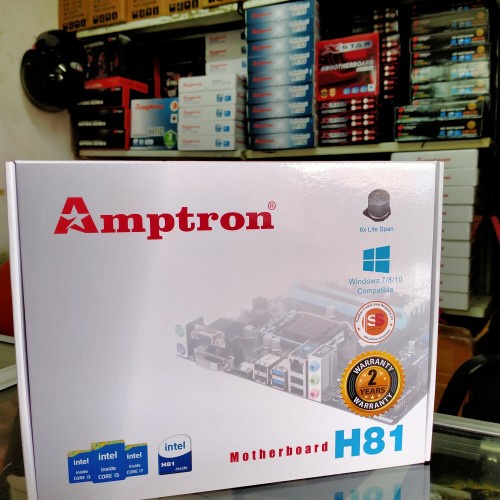

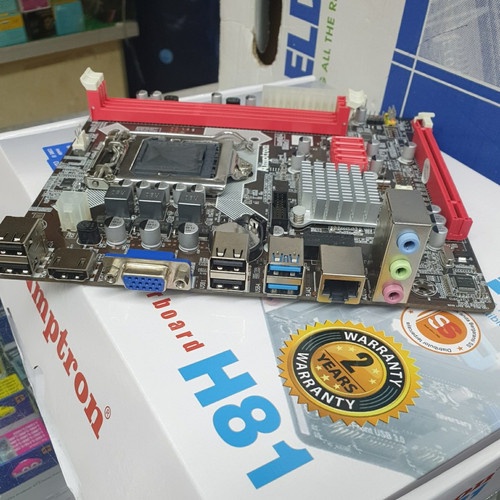

Motherboard Amptron Intel H81 (LGA1150, Intel H81, DDR3) Garansi 2 Tahun
==================================
Specifications:
Chipset: Intel H81
Memory :
- 2 x DIMM,Max.8GB,DDR3 1333/1066
- Dual channel Memory Architecture
Graphic: Integrated Graphics Processor Intel HD
Expantion Slots :
- 1xPCIe 2.0 x16
- 2xPCI
- 2x SATA 3Gb/s port (s)
LAN: Realtek 8105E
Audio: Realtek ALC 662 6-Channel Hight Definition Audio
USB Ports :
- 6 x USB 2.0 port (s) (2 at back panel,4 at mid-board)
- 1 x PS/2 keybord (purple)
- 1 x PS/2 mouse (green0)
- 1 x LAN (RJ45) port (s)
- 2 x USB 2.0
Back I/O Port :
- 1x VGA
- 1x HDMI
- 1x COM
- 1x LPT
- 3 x Audio jack(s)
- 2x USB 2.0 connector (s) support (s) additional 4 US
Internal I/O port :
- B 2.0 port(s)
- 2 x SATA 3Gb/s connector (s)
Audio
Chip integrated by Realtek ALC661, Supports 5.1-channel audio-out
Form Factor
- Micro ATX - 240*168 mm
