Motherboard H81 Mobo Gigabyte H81M-S2PH Socket 1150 ORI

Detail Motherboard H81 Mobo Gigabyte H81M-S2PH Socket 1150 ORI

100% Baru & Original GIGABYTE
👍 Ready Stok bisa diorder langsung
👍 Garansi RESMI GIGABYTE 3Tahun

Motherboard Gigabyte H81M-S2PH Socket 1150 cocok untuk Rakitan Haswell
Spesifikasi :
*Chipset : Intel" H81 Express Chipset
*Memory : 2 x Slot Mem DDR3 Maks. 16 GB
* LAN : Realtek" GbE LAN chip (10/100/1000 Mbit)
* Audio : Realtek" ALC887 codec, High Definition Audio 2/4/5.1/7.1-channel
* Expand Slot :1 x PCI Express x16 slot, running at x16, 1 x PCI Express x1 slot, 2 x PCI slots
*SATA : 2 x SATA 6Gb/s connectors (SATA3 0/1), 2 x SATA 3Gb/s connectors (SATA2 2/3)
* Konektor I/O Internal :
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 header
- 1 x serial port header
- 1 x Clear CMOS jumper
* Rear Connector :
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x parallel port
- 1 x serial port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)

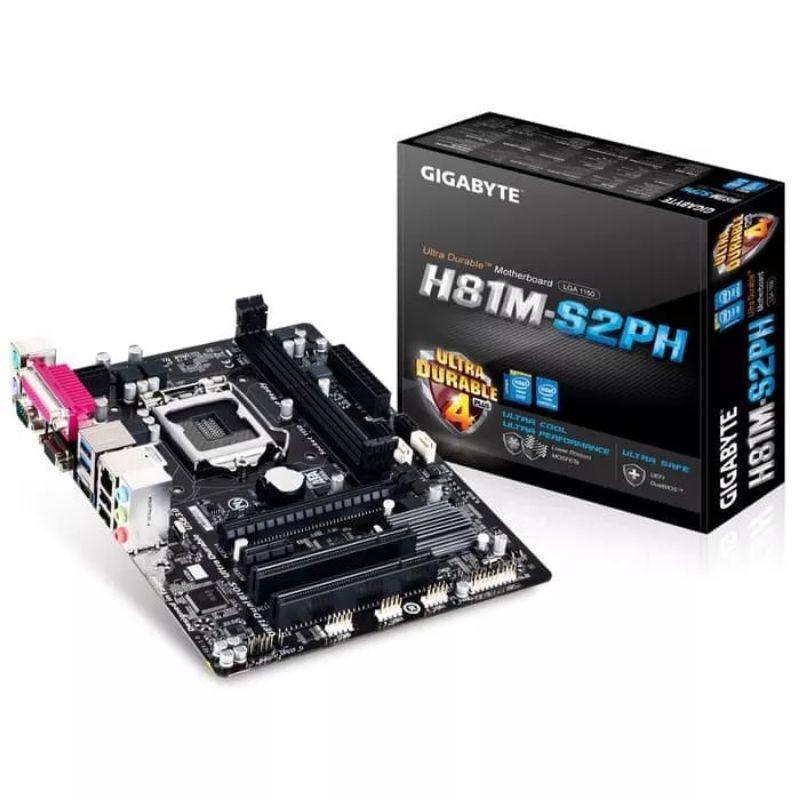

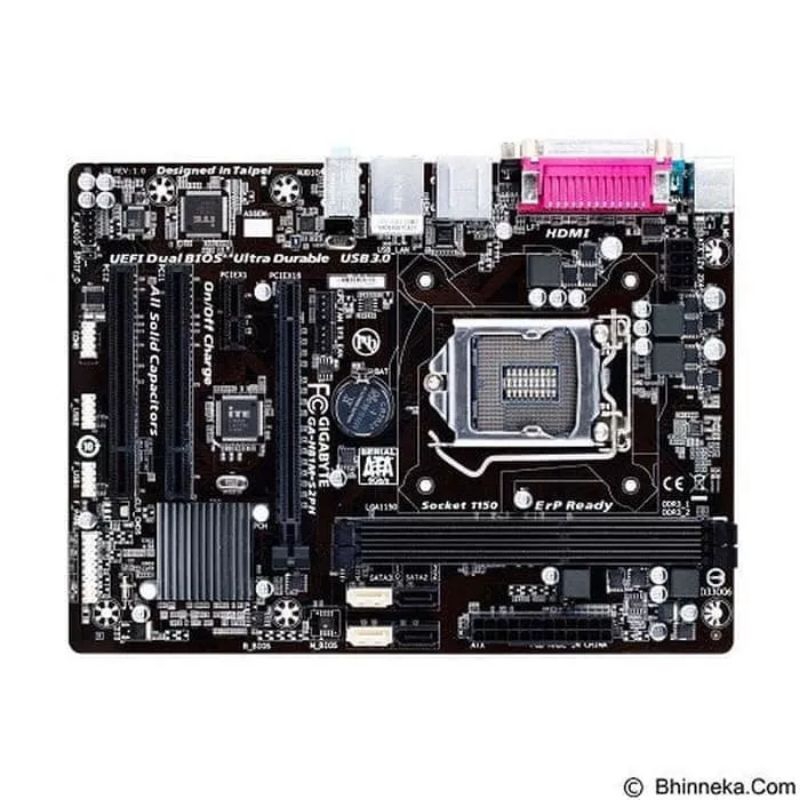

Gambar produk
