MOTHERBOARD H61 SUPPORT GEN 3 IVYBRIDGE USB 3.0 up to CORE I7 LGA 1155 POWERMAX/ESONIC

Merek: Intel | Lihat selengkapnya produk Komputer & Aksesoris dari Intel
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > MOTHERBOARD H61 SUPPORT GEN 3 IVYBRIDGE USB 3.0 up to CORE I7 LGA 1155 POWERMAX/ESONIC
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Kadal Gaming by Macro-XLihat semua produk Komputer & Aksesoris oleh Kadal Gaming by Macro-X
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail MOTHERBOARD H61 SUPPORT GEN 3 IVYBRIDGE USB 3.0 up to CORE I7 LGA 1155 POWERMAX/ESONIC

Processor: Intel® Socket 1155 for 3rd / 2nd generation i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron® processors. Supports Intel® 22nm CPU. Supports Intel® 32nm CPU. Supports Intel® Turbo Boost Technology 2.0
Chipset: Intel® H61 Chipset
Memory Support: DDR3 1066/1333 / SDRAM 2 * DDR3 DIMMs (240 pin / 1.5V)
LAN: Supports Realtek® 8105E 10 / 100M Mbps
Audio: Realtek® 661 Integrated Chip Flexible 6-channel audio with jack sensor Vista Premium compatible
Storage: 4 * SATA 3Gb / s ports
USB: 8 * USB 2.0 ports (6 on black back panel, 2 in the middle of card) 1 * 19-pin USB pin, for 2 USB ports

Rear panel

1 HDMI port
6 USB 2.0 ports
1 VGA port
1 LAN jack
3 flexible audio jacks

Integrated pin headers / connectors

1 USB 2.0 pin connector
1 19-pin USB pin connector
1 pin COM connector

Slots
1 PCI Express x16 slot
1 PCI Express x1 slot

Form factor
Micro-ATX (21.1 cm x 16.8 cm)

Assembly
6 mounting holes

Accessories
SATA data cable (optional)
1X I / O Backboard
1X User manual
1X Drives installed CD

GARANSI RESMI 1 TAHUN

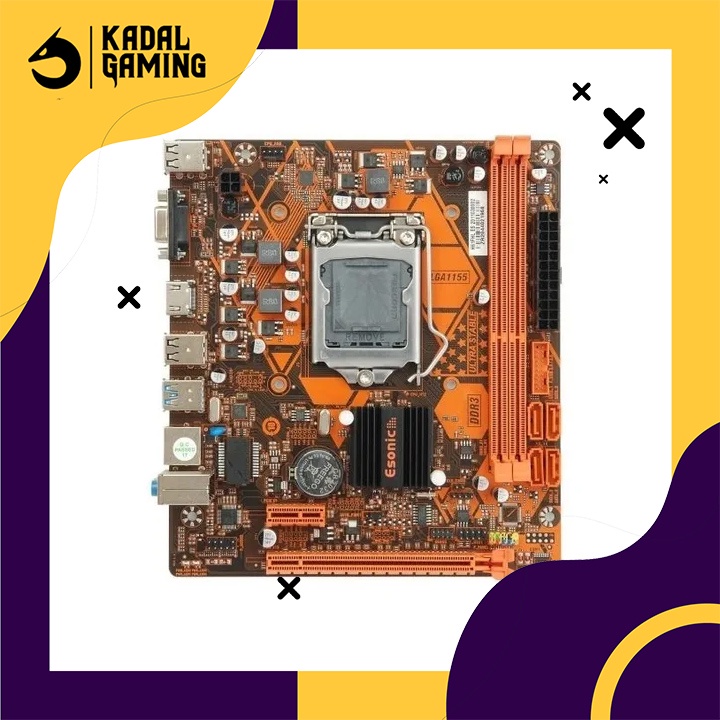

Gambar produk
