Detail Motherboard H310MHC

Supports 8th Generation Intel® Core™ Processor
Intel H310 single chip architecture
Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
Support USB 3.1 Gen1
Support HDMI display port
Support GbE LA
Chipset Intel H310
CPU SUPPORT 8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR4 1866/2133/2400/2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA3 Connectors
LAN Realtek RTL8111H - 10/100/1000Mb/s Controller
CODEC Realtek ALC887 8-Channel HD Audio
USB 4 x USB 3.1 Gen1 Ports (2 on rear I/Os and 2 via internal header)
6 x USB 2.0 Port(2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot
2 x PCI-E 2.0 x1 Slot

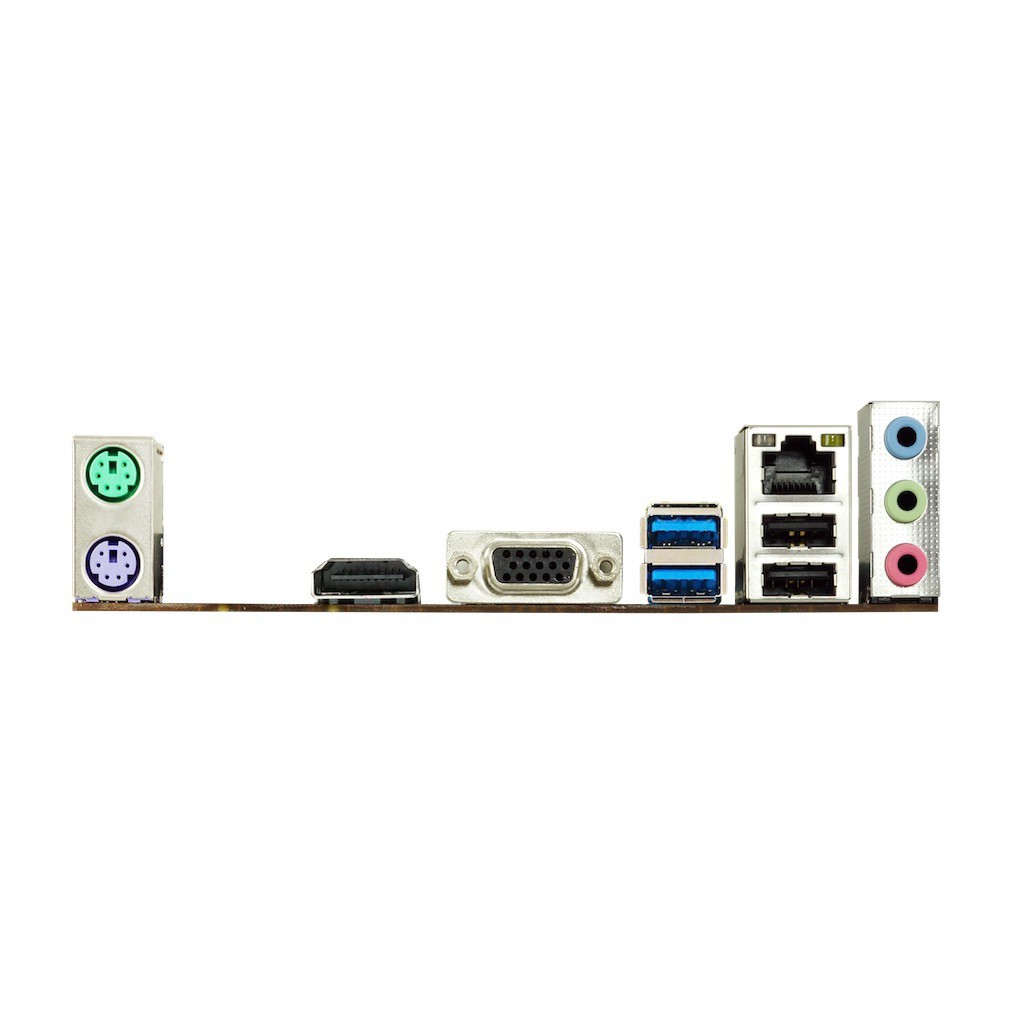

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @20Hz
1 x VGA Port
1 x LAN port
3 x Audio Jacks
INTERNAL I/O 1 x USB 3.1 Gen1 Header (each header support 2 USB 3.1 Gen1 ports)
2 x USB 2.0 Headers (each header support 2 USB 2.0 ports)
4 x SATA3 6Gb/s Connectors
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 22.6 cm x 17.1 cm ( W x L )
OS SUPPORT Support Windows 10(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

Gambar produk

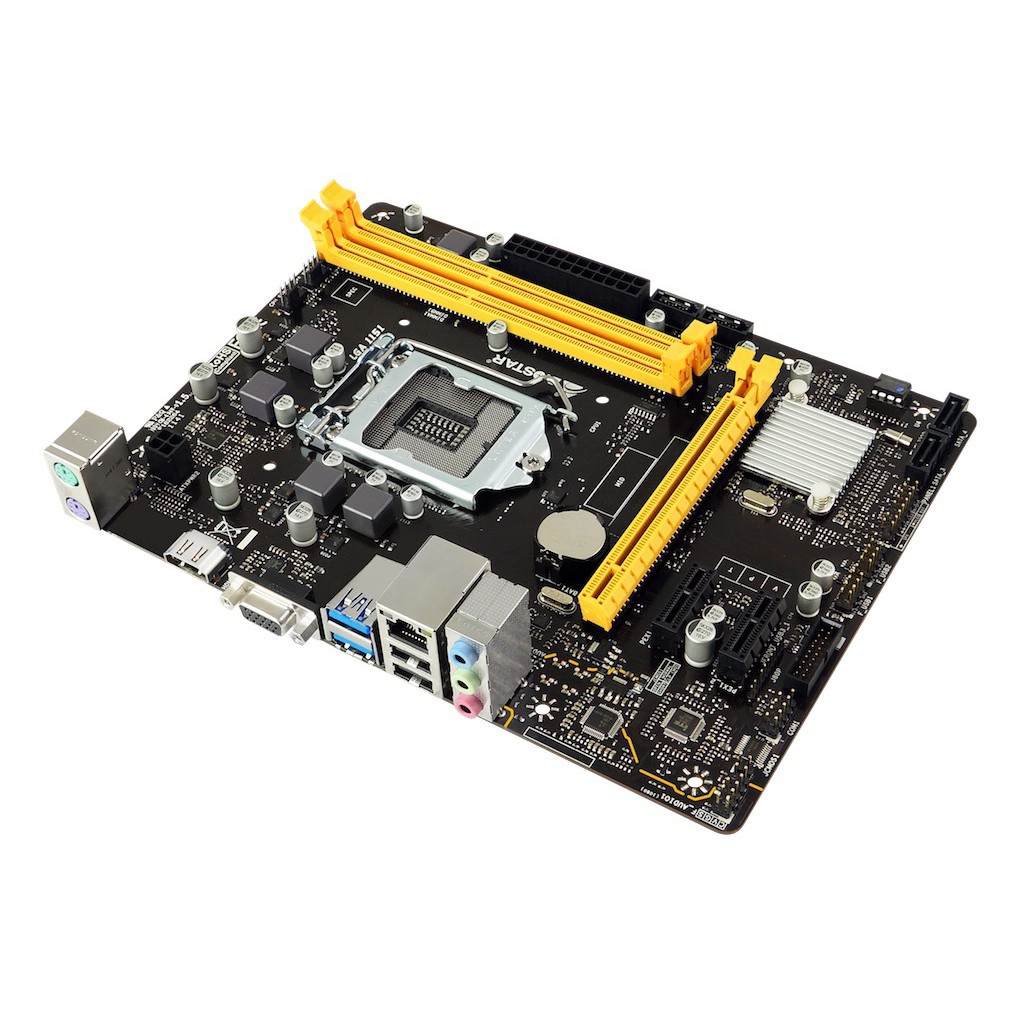

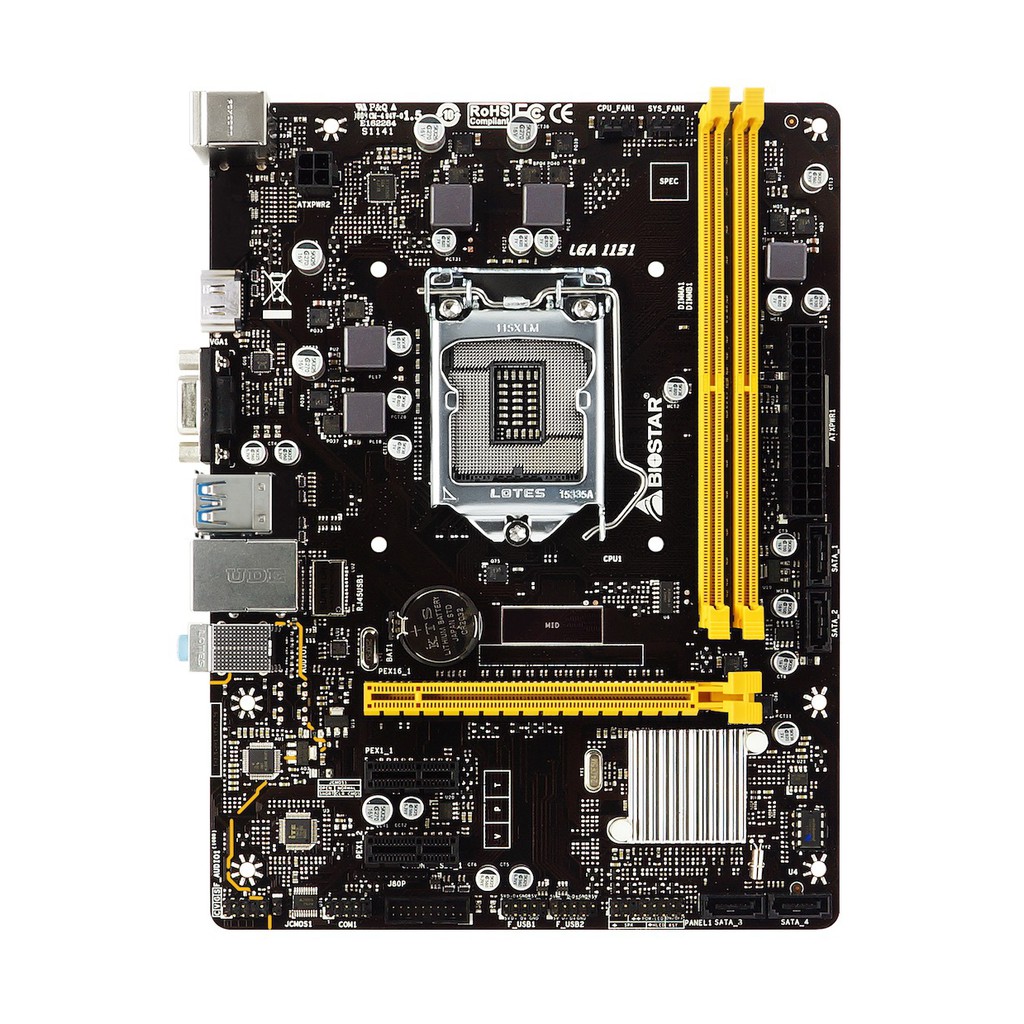

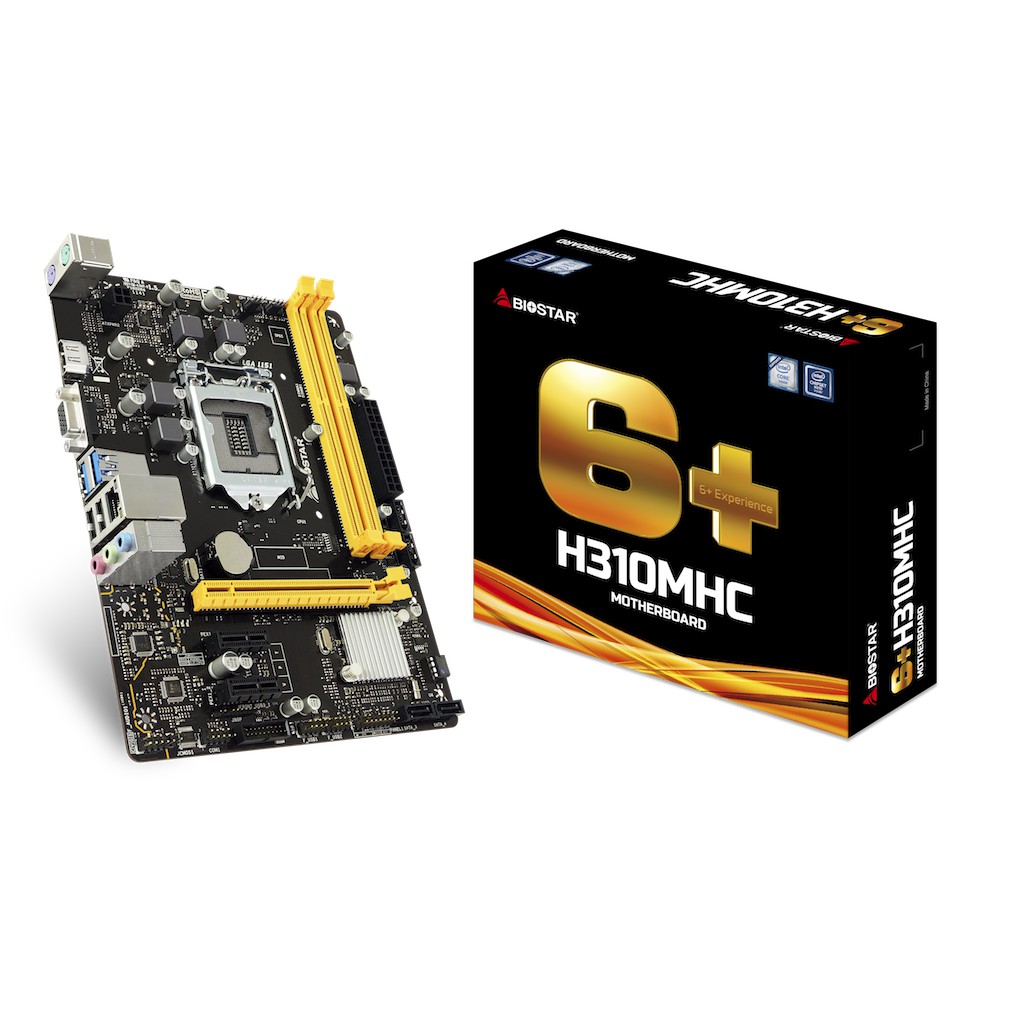

Motherboard H310MHC
