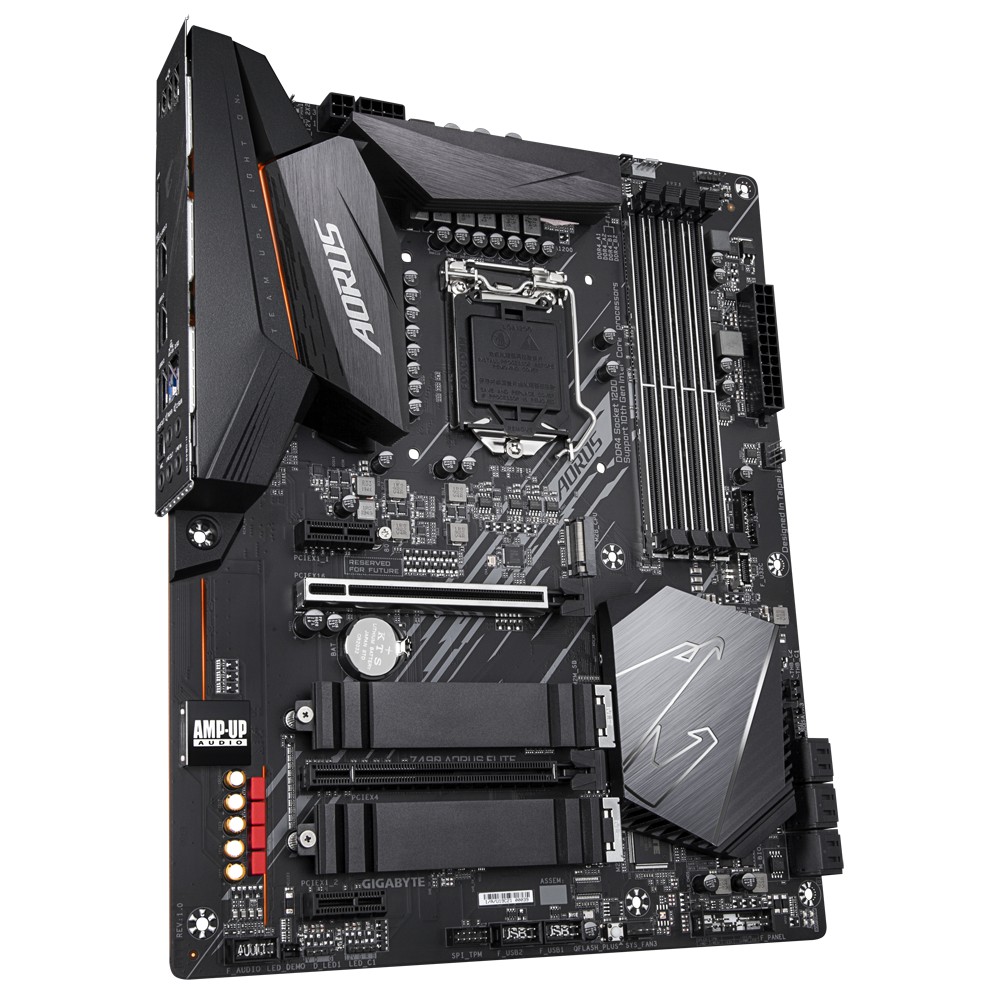

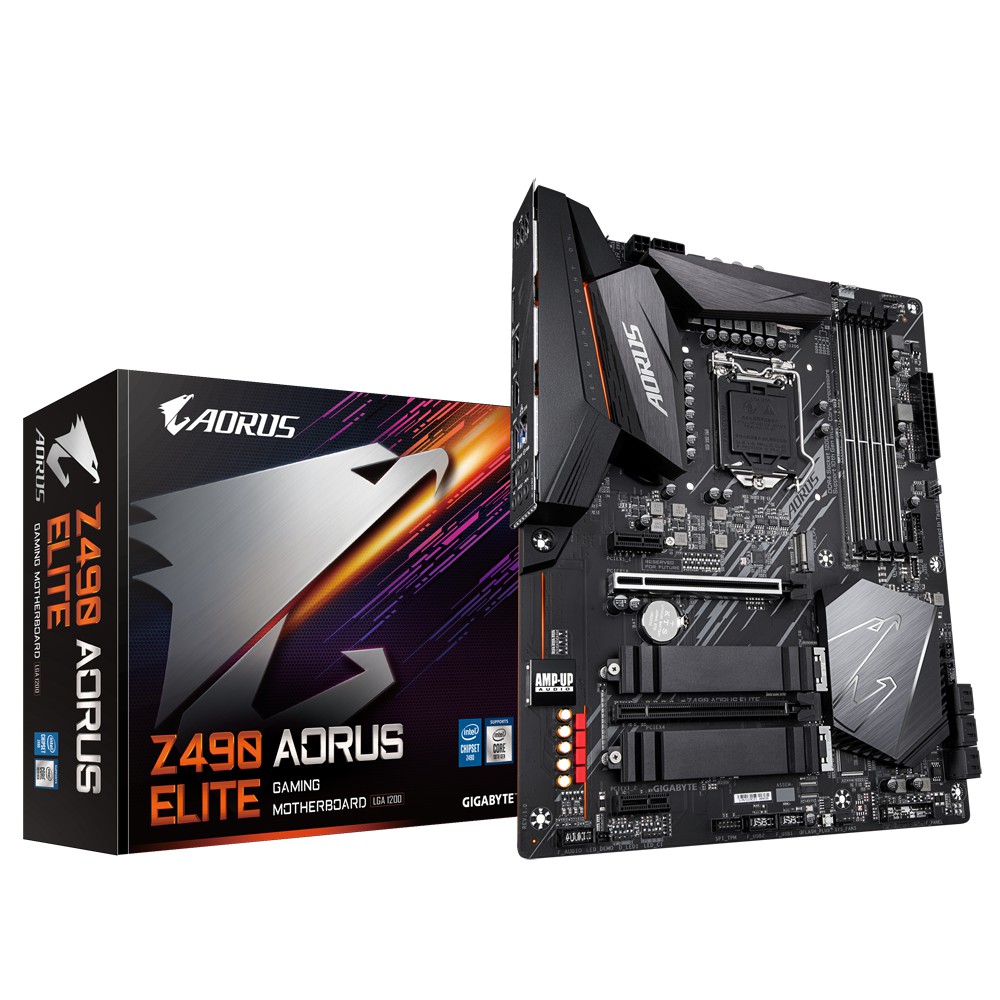

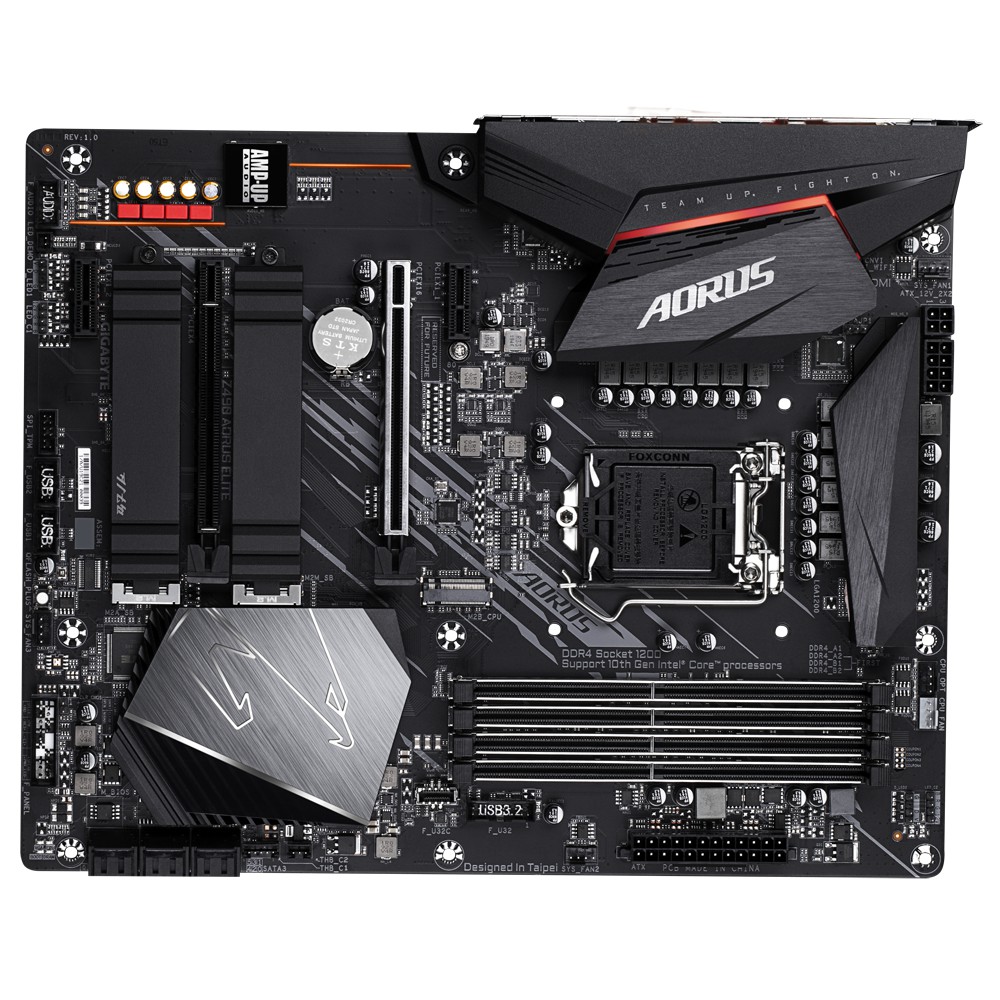

Motherboard Gigabyte Z490 AORUS ELITE

Detail Motherboard Gigabyte Z490 AORUS ELITE

Intel® Z490 AORUS Motherboard with Direct 12 Phase Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, 2.5GbE LAN, RGB FUSION 2.0

Supports 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel® Optane™ Memory Ready
Direct 12 Phases Digital VRM Solution with 50A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Advanced Thermal Design with Enlarged Surface Heatsink
AMP-UP Audio with ALC1200 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
Pre-installed IO Shield for Easy and Quick Installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Spesifikasi
Prosesor
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z490 Express Chipset
Memori
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
* To support 3200 MHz, you must use XMP memory.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Kartu Grafis Terintegrasi
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Slot Tambahan
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Teknologi Multi Grafis
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Fitur Unik
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game
