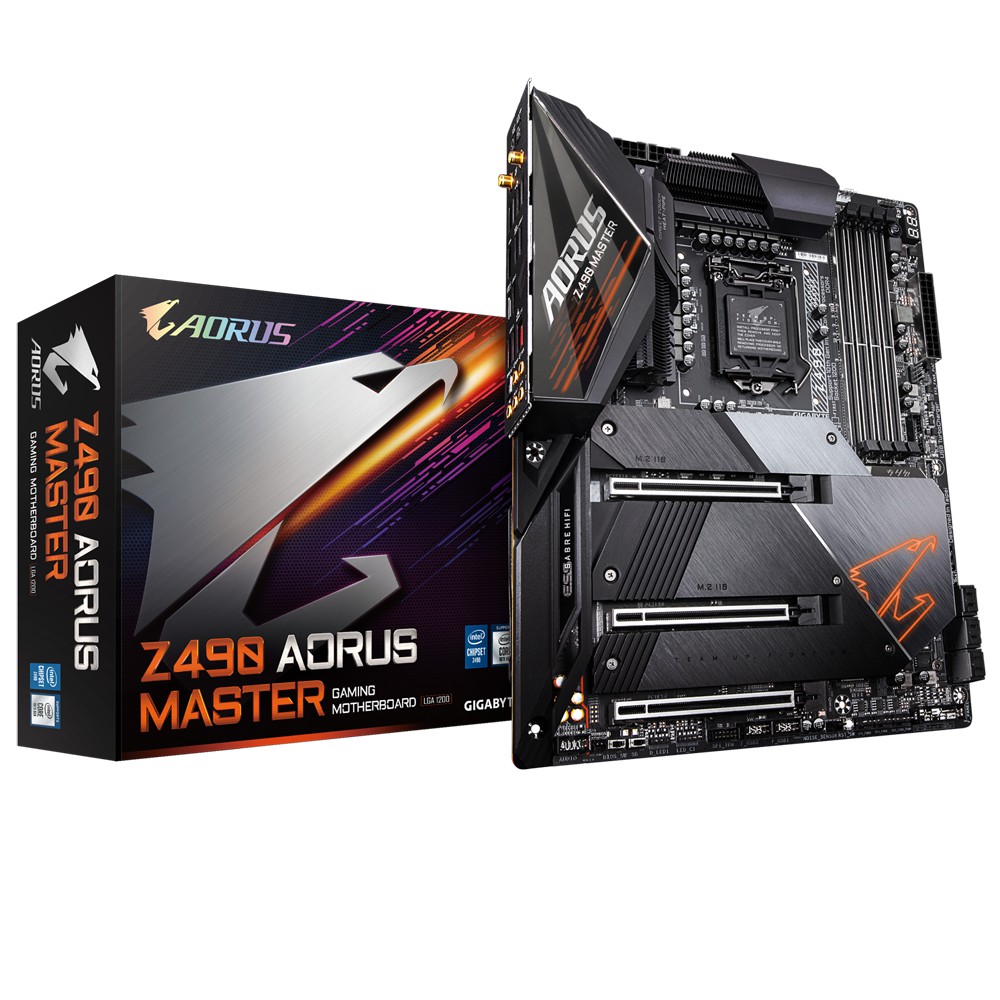

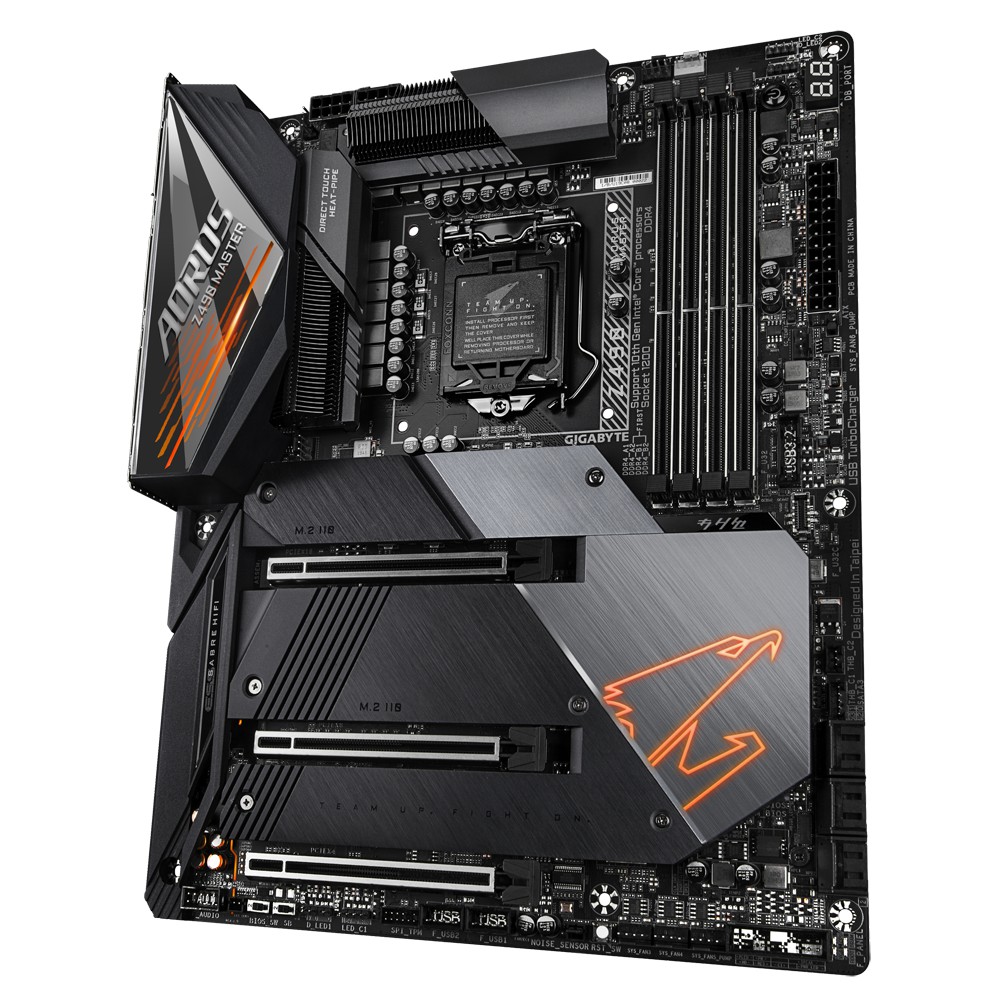

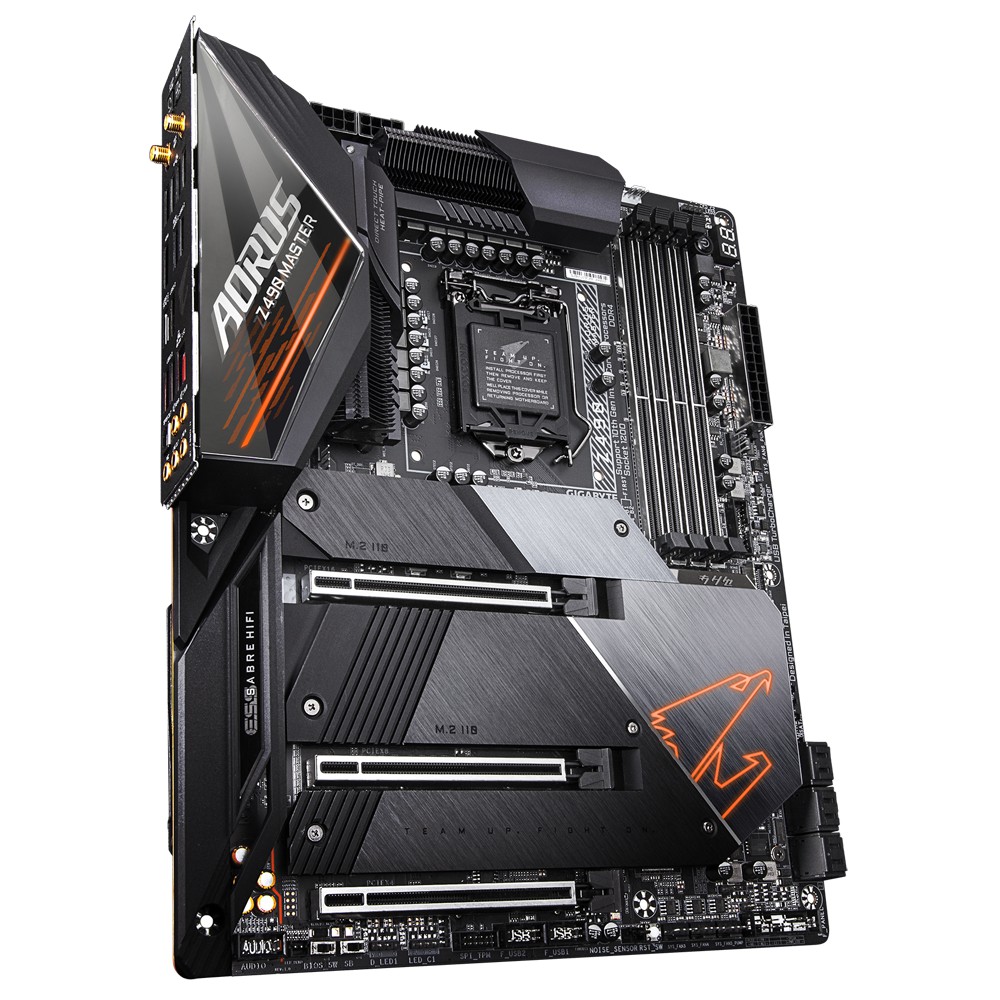

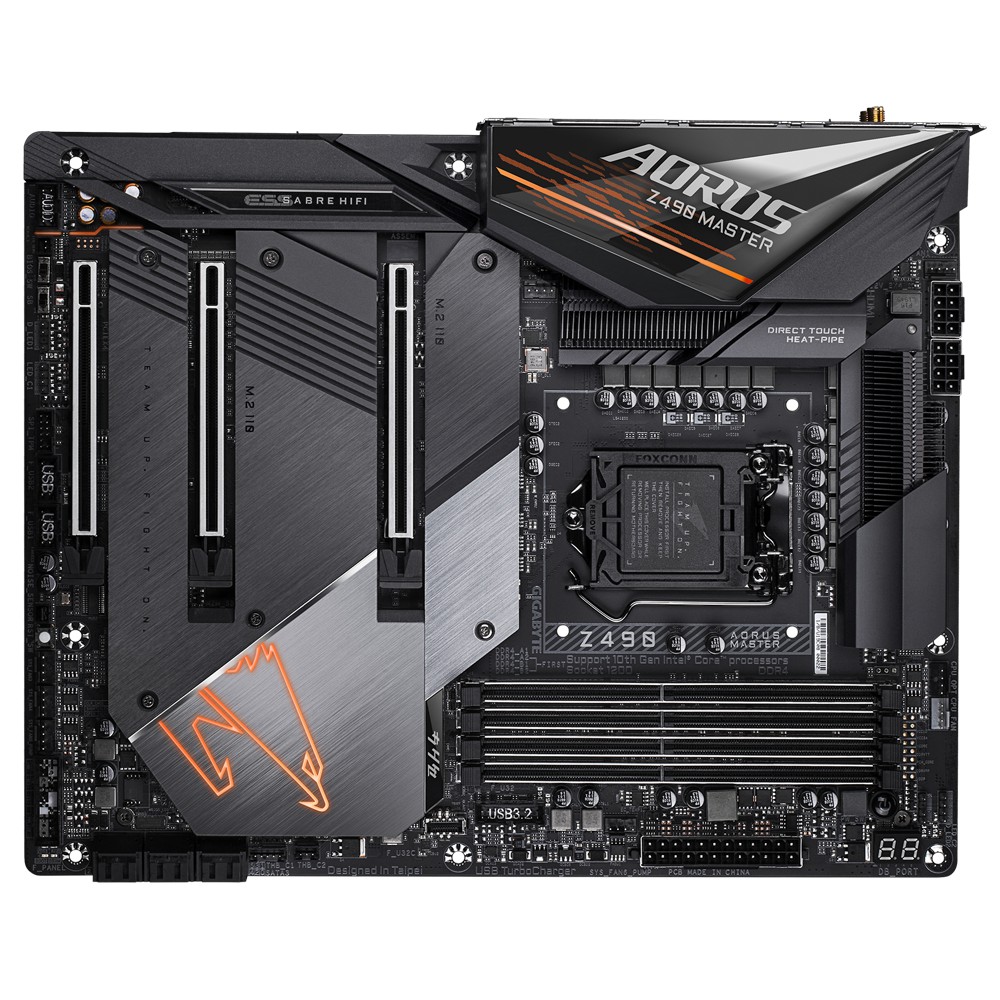

Motherboard Gigabyte Z490 AORUS MASTER

Detail Motherboard Gigabyte Z490 AORUS MASTER

Intel® Z490 AORUS Motherboard with 14 Phase Digital VRM, Fins-Array II, Direct-Touch Heatpipe II, Intel® WiFi 6 802.11ax, Intel® 2.5GbE LAN, ESS SABRE HiFi 9118 DAC, RGB FUSION 2.0, USB TurboCharger

Supports 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel® Optane™ Memory Ready
14 Phase Digital VRM Solution with 90A Smart Power Stage and Tantalum Polymer Capacitors Array
Shielded Memory Routing for Better Memory Overclocking
Newly Invented Thermal Design with Fins-Array II Heatsink and Direct Touch Heatpipe II
Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220 and WIMA Audio Capacitors
Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
USB TurboCharger for Mobile Device Fast Charge Support
Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Spesifikasi
Prosesor
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel® Z490 Express Chipset
Memori
Intel® Core™ i9/i7 processors:
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Kartu Grafis Terintegrasi
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Prosesor
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel® Z490 Express Chipset
Memori
Intel® Core™ i9/i7 processors:
Support fo
