Motherboard Gigabyte Z490 AORUS PRO AX

Detail Motherboard Gigabyte Z490 AORUS PRO AX

Intel® Z490 AORUS Motherboard with Direct 12 Phases Digital VRM Design, Comprehensive Thermal Solution with Fins-Array II, Intel® WiFi 6 802.11ax, Intel® 2.5GbE LAN, RGB FUSION 2.0

Supports 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel® Optane™ Memory Ready
Direct 12 Phases Digital VRM Solution with 55A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fins-Array II Heatsink and Direct Touch Heatpipe II
Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220-VB and WIMA for Rear 120dB SNR
Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Spesifikasi
CPU
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
Intel® Z490 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
* To support 3200 MHz, you must use XMP memory.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm

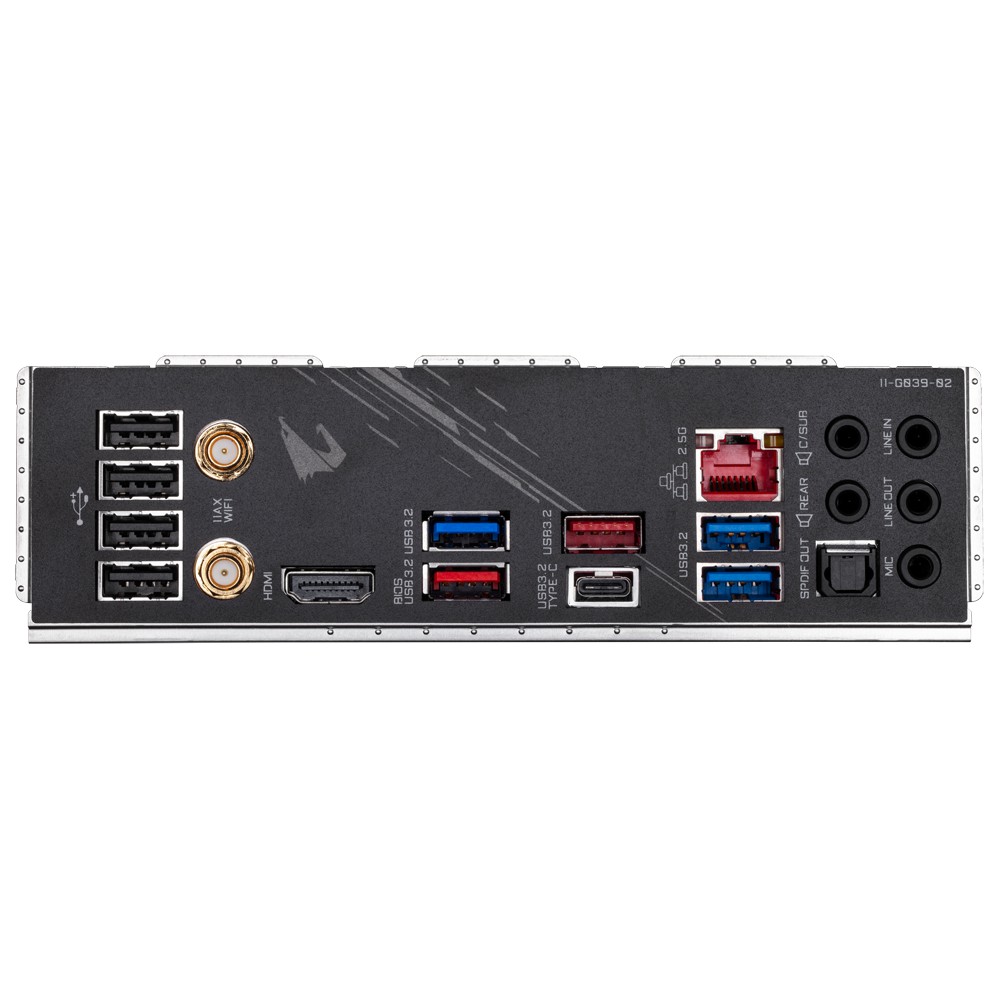

Back Panel Connectors
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

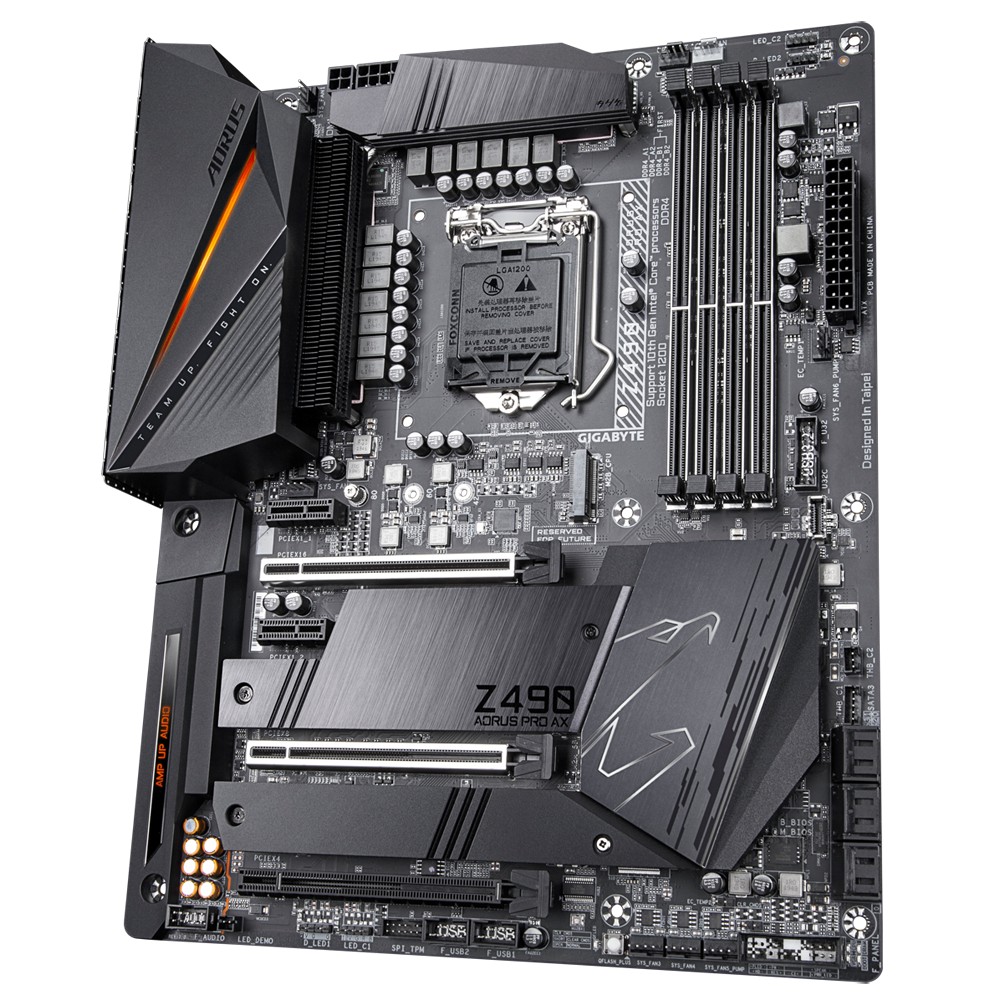

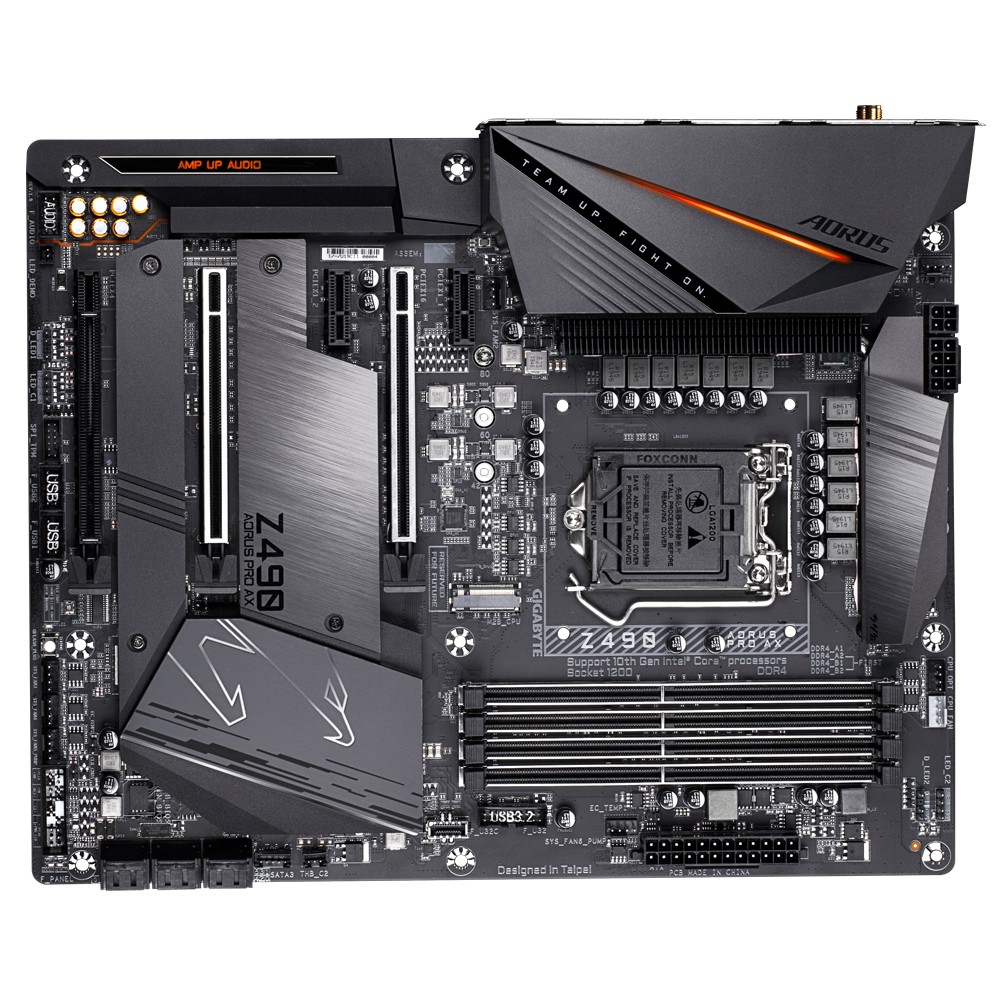

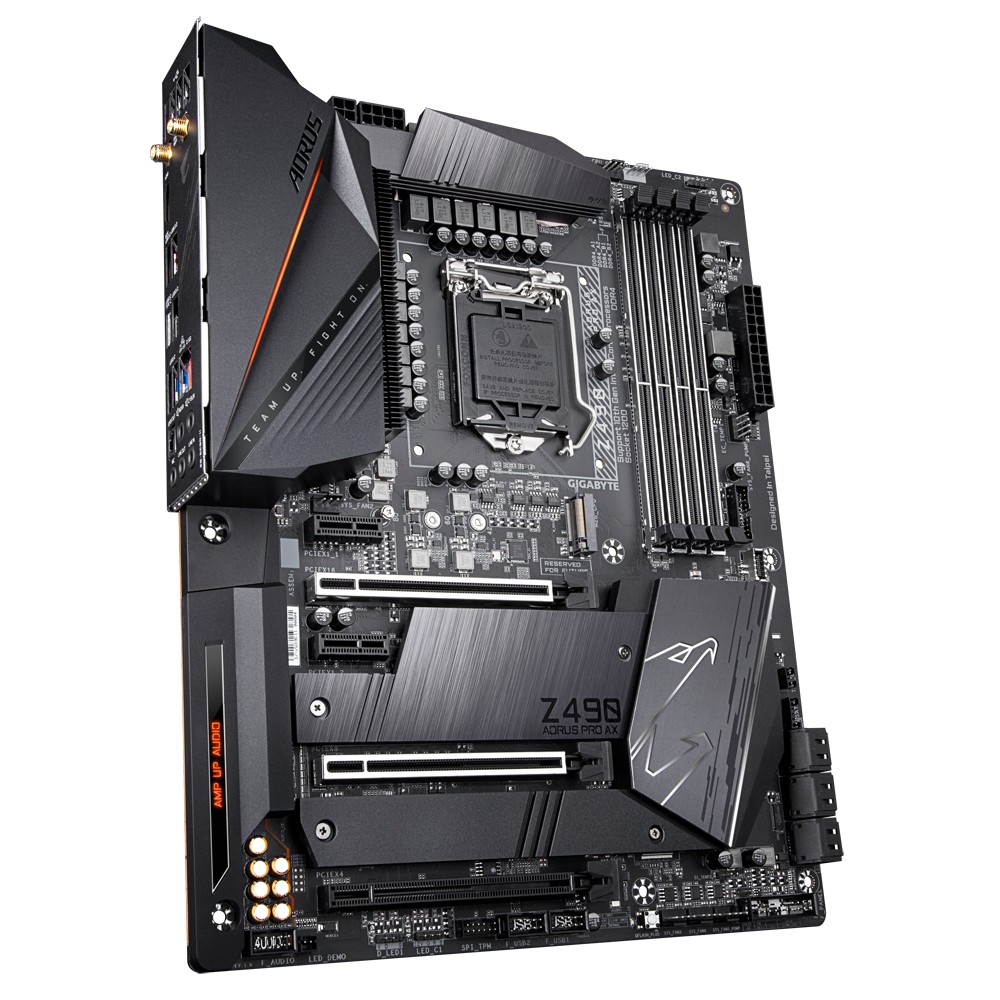

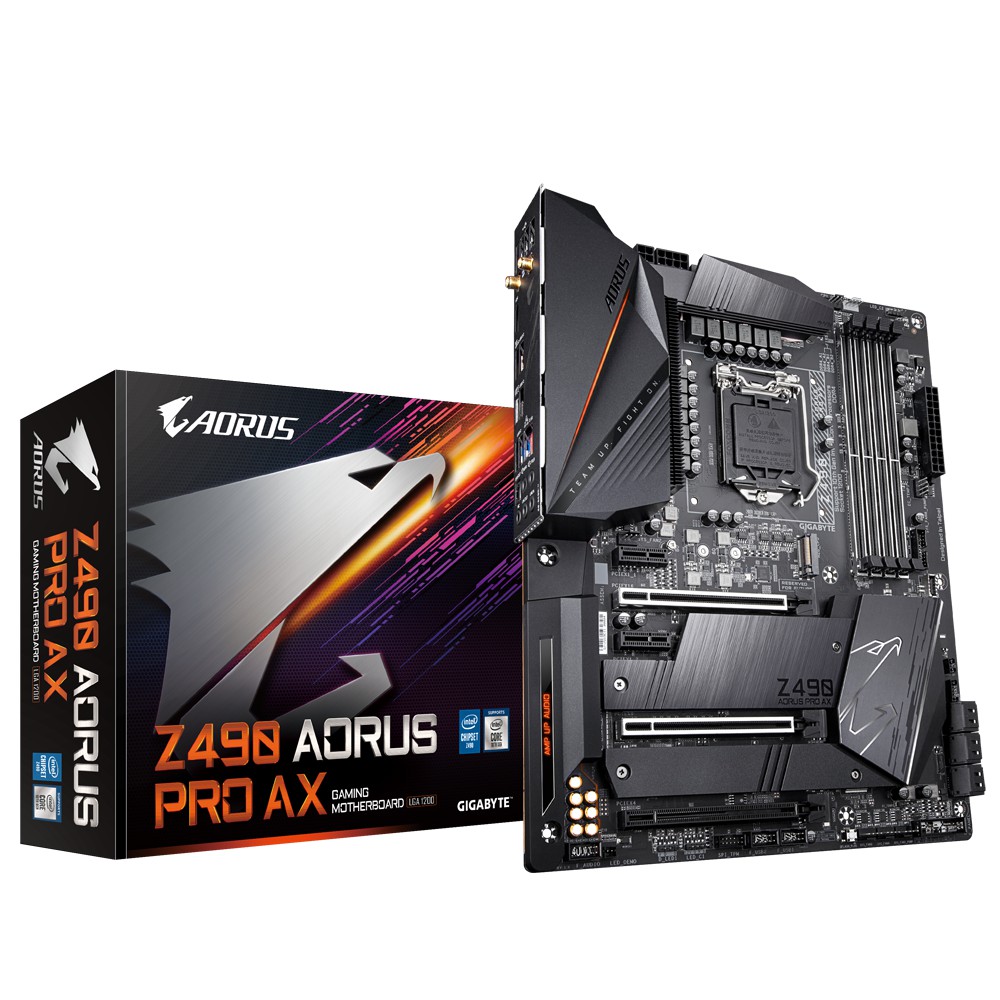

Gambar produk
