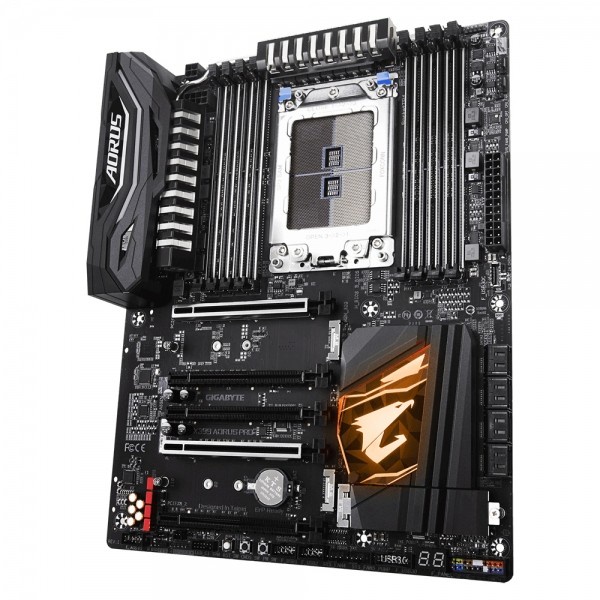

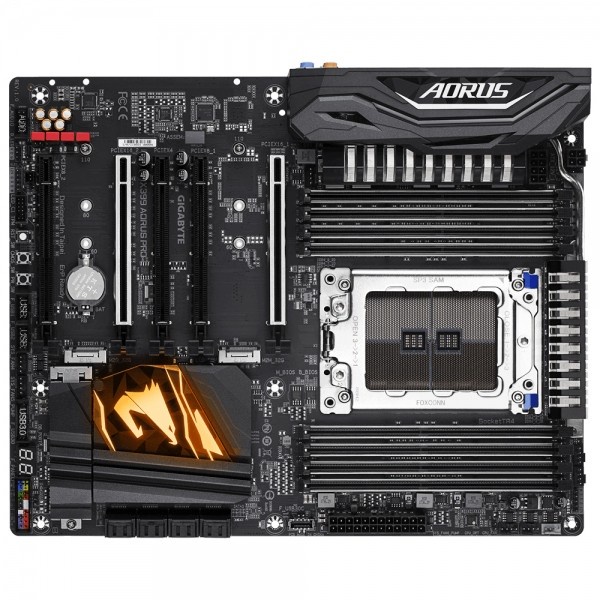

Motherboard GIGABYTE X399 AORUS Pro (Socket TR4, X399, 8xDDR4)

Detail Motherboard GIGABYTE X399 AORUS Pro (Socket TR4, X399, 8xDDR4)

SocketTR4:
Prosesor : AMD Ryzen Threadripper processor
(Please refer "CPU Support List" for more information.)

Chipset : AMD X399
Memori :
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
Quad channel memory architecture
Support for DDR4 3600+*(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2800(O.C)/ 2667/ 2400/ 2133 MHz memory modules
* Recommend to use a 1st Gen. Ryzen Threadripper processor to achieve 3600MHz (O.C.) speed.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Audio :
Realtek ALC1220 codec
High Definition Audio

LAN :Intel GbE LAN chip (10/100/1000 Mbit)

Slot Tambahan :
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)

Teknologi Multi Grafis :
Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies
Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies

Antarmuka Penyimpanan :
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

USB :

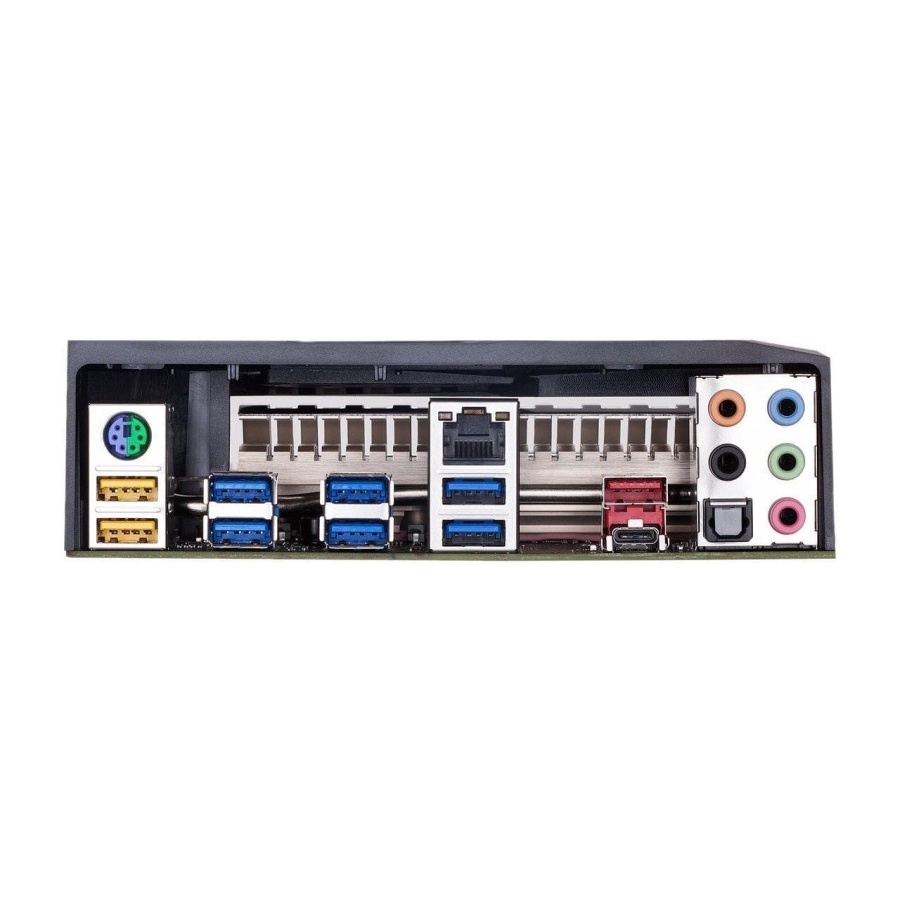

CPU: 8 x USB 3.1 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C port with USB 3.1 Gen 1 support, available through the internal USB header
2 x USB 3.1 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 port

Gambar produk
