Motherboard Gigabyte Intel GA H81M-DS2 (LGA1150 H81 DDR3 SATA3 USB3)

Detail Motherboard Gigabyte Intel GA H81M-DS2 (LGA1150 H81 DDR3 SATA3 USB3)

Prosesor :
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
- L3 cache varies with CPU
Chipset : Intel® H81 Express Chipset
Memori :
- 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
- Dual channel memory architecture
- Support for DDR3 1600/1333 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Kartu Grafis Terintegrasi :
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200
- Maximum shared memory of 1 GB
Audio :
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN : Realtek® GbE LAN chip (10/100/1000 Mbit)
Slot Tambahan :
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots
Antarmuka Penyimpanan
Chipset:
- 2 x SATA 6Gb/s connectors (SATA3 0/1)
- 2 x SATA 3Gb/s connectors (SATA2 2/3)
USB :
- 2 x USB 3.0/2.0 ports on the back panel
- 6 x USB 2.0/1.1 ports
Konektor I/O Internal :
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 2 x USB 2.0/1.1 headers
- 1 x Clear CMOS jumper
Konektor Panel Belakang :
- 1 x PS/2 mouse port
- 1 x PS/2 Keyboard port
- 1 x parallel port
- 1 x serial port
- 1 x D-Sub port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
Pengontrol I/O : iTE® I/O Controller Chip
Paket Sofware : Norton® Internet Security (OEM version)
Sistem Operasi : Support for Windows 10/8.1/8/7
Form Factor : Micro ATX Form Factor; 22.6cm x 17cm

Garansi 3 Tahun

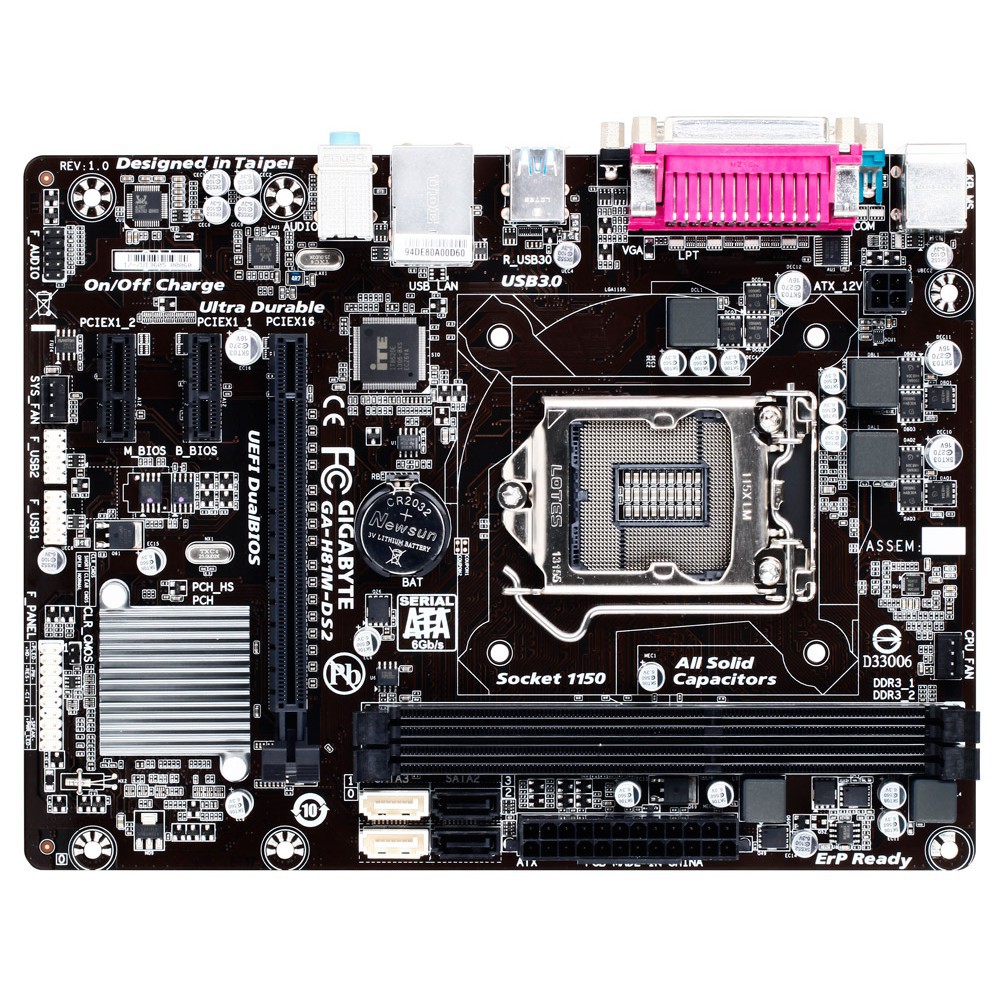

Gambar produk
