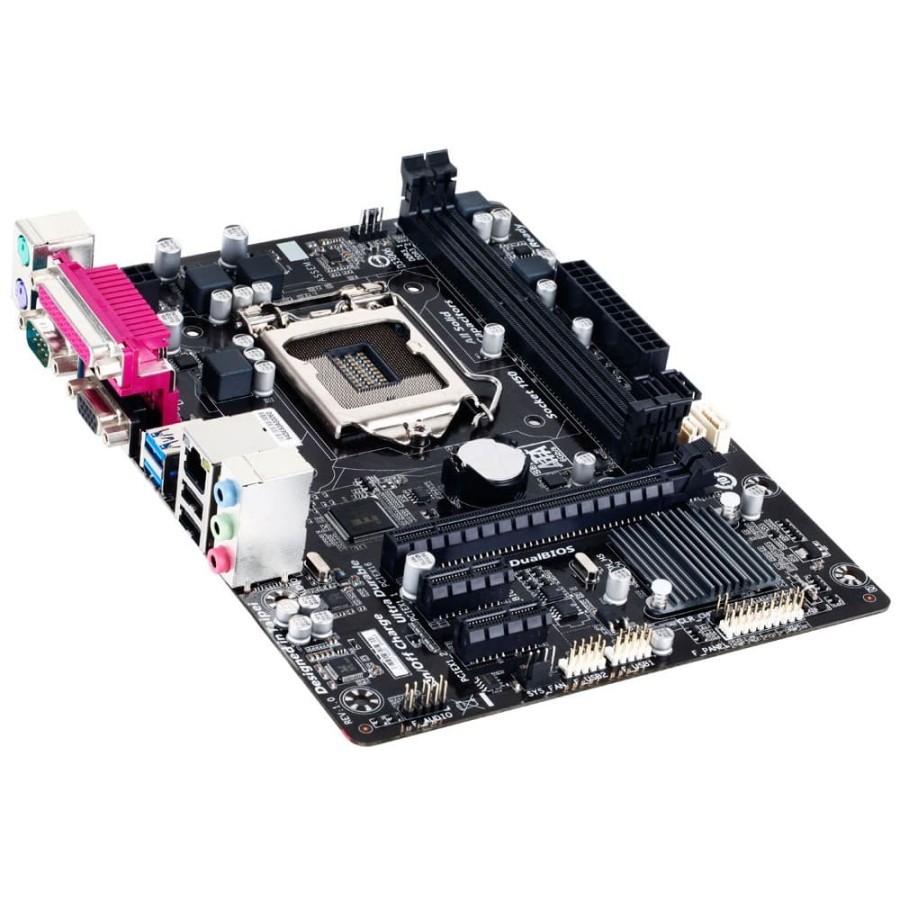

Motherboard GIGABYTE H81M-DS2

Detail Motherboard GIGABYTE H81M-DS2

*Notes
Untuk keamanan produk silahkan tambahkan buble ya
https://shopee.co.id/product/28339531/6732702209/

*Untuk keamanan produk yang cukup besar disarankan menggunakan packing kayu, untuk produk monitor, pc aio, pc build up, dan laptop wajib menggunakan packing kayu

*Silahkan menambah packing kayu di
https://shopee.co.id/product/28339531/6174009421/

*Selalu tanyakan stok terlebih dahulu karena stok sangat terbatas

❏ Features & Specs :

Prosesor

Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU

Memori

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
Kartu Grafis Terintegrasi
Integrated Graphics Processor - Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 1 GB

Audio

Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN

Realtek GbE LAN chip (10/100/1000 Mbit)

Slot Tambahan

1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

Antarmuka Penyimpanan
Chipset:

2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

USB
Chipset:

Up to 2 USB 3.0/2.0 ports on the back panel
Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Konektor I/O Internal

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x C

Gambar produk
