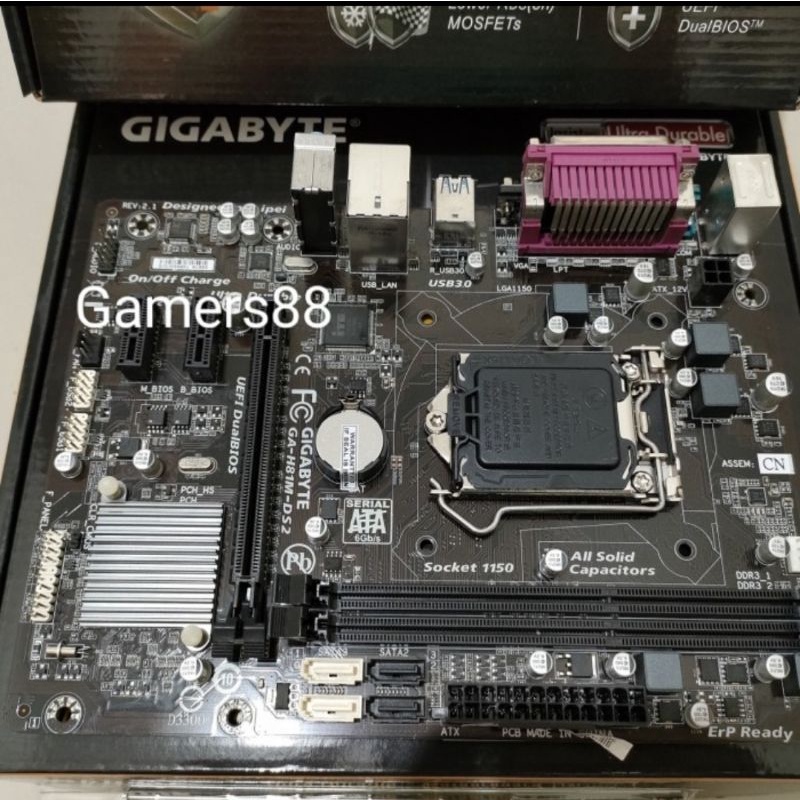

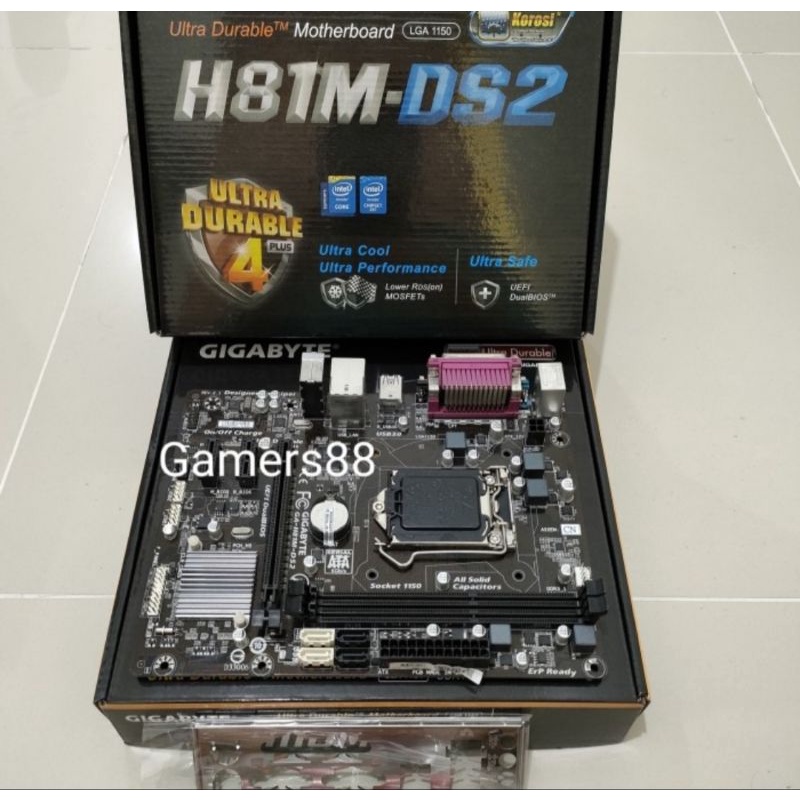

Motherboard Gigabyte H81M-Ds2 Mainboard Mobo LGA 1150

Detail Motherboard Gigabyte H81M-Ds2 Mainboard Mobo LGA 1150

MB Motherboard GIGABYTE GA H81M-DS2 - Mainboard Mobo H81M

-Supports 4th Generation Intel Core processors
-GIGABYTE Ultra Durable 4 Plus Technology
-GIGABYTE UEFI DualBIOS
-USB 3.0 ports with GIGABYTE 3x USB power
-GIGABYTE On/Off Charge for USB devices
-LAN with high ESD Protection

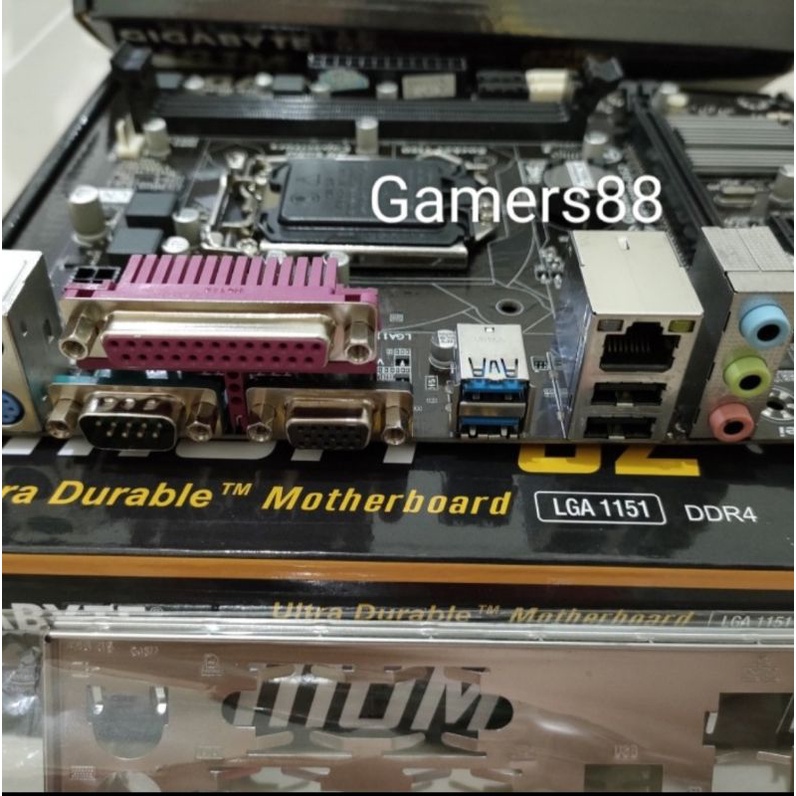

-LPT, COM, D-SUB port on rear panel
-All solid capacitors design

CPU
-Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
-L3 cache varies with CPU

Chipset
Intel H81 Express Chipset

Memory
-2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
-Dual channel memory architecture
-Support for DDR3 1600/1333 MHz memory modules
-Support for non-ECC memory modules
-Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
-1 x D-Sub port, supporting a maximum resolution of 1920x1200
-Maximum shared memory of 1 GB

Audio
-Realtek ALC887 codec
-High Definition Audio
-2/4/5.1/7.1-channel

LAN
Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
-1 x PCI Express x16 slot, running at x16
-2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

Internal I/O Connectors
-1 x 24-pin ATX main power connector
-1 x 4-pin ATX 12V power connector
-2 x SATA 6Gb/s connectors
-2 x SATA 3Gb/s connectors
-1 x CPU fan header
-1 x system fan header
-1 x front panel header
-1 x front panel audio header
-2 x USB 2.0/1.1 headers
-1 x Clear CMOS jumper

Garansi Distributor 1Tahun

penting !!!!!

penting !!!
Syarat retur motherboard :
Tidak bs mengembalikan motherboard dgn keadaan kaki processor patah/ bengkok dgn alasan dan kondisi apapun

NB : Jika mengembalikan motherboard dalam keadaan kaki2 processor dalam keadaan bengkok dan rusak akibat kelalaian pembeli dalam memasang dan mencabut proccesor" TIDAK BISA DIRETUR ATAU REFUND MESKI BARU DIBELI PAKE TEST KARENA MOTHERBOARD DIRUSAK PEMBELI WAKTU PERTAMA TERIMA DALAM KEADAAN BAGUS.
TIDAK BS RETUR WALAU BARU DI BELI
UNTUK CLAIM VIDEO HARUS DISERTAKAN MULAI DR SEBELUM PAKET DI BUKA YG ADA LABEL INV TOPED DARI PENJUAL SAMPE KAKI PROCESSORNYA TANPA TERPENGGAL HARUS SAMBUNG
CONTOH RUSAK DI SLIDE FOTO TERAKHIR

jgn lupa video unboxing
agar pin prosesor tidak rusak / bengkok
karena klo bengkok garansi hangus
dan harap hati-hati dalam memasang dan melepas processor

Gambar produk
