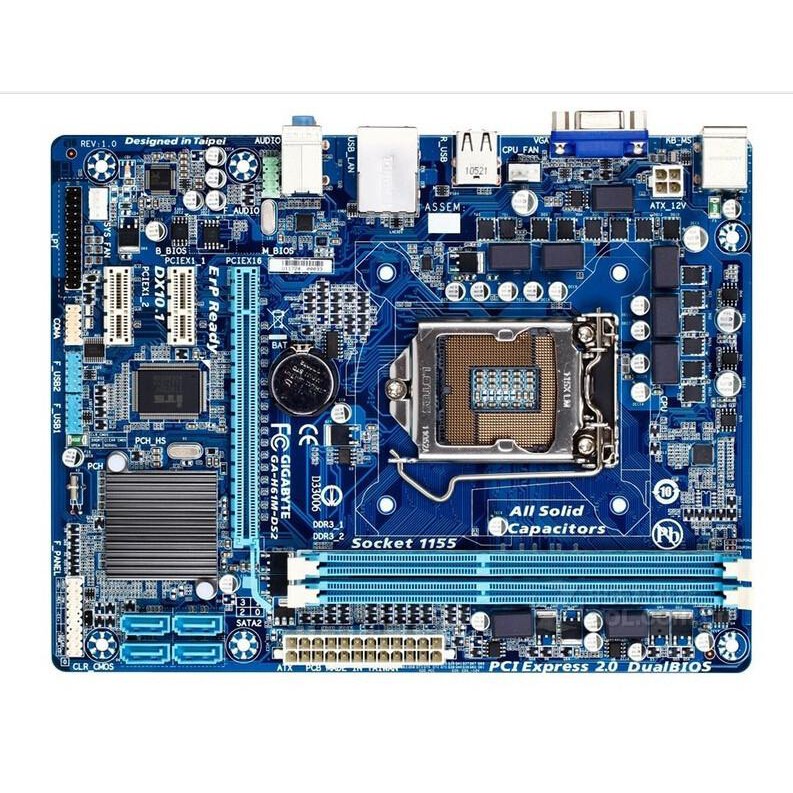

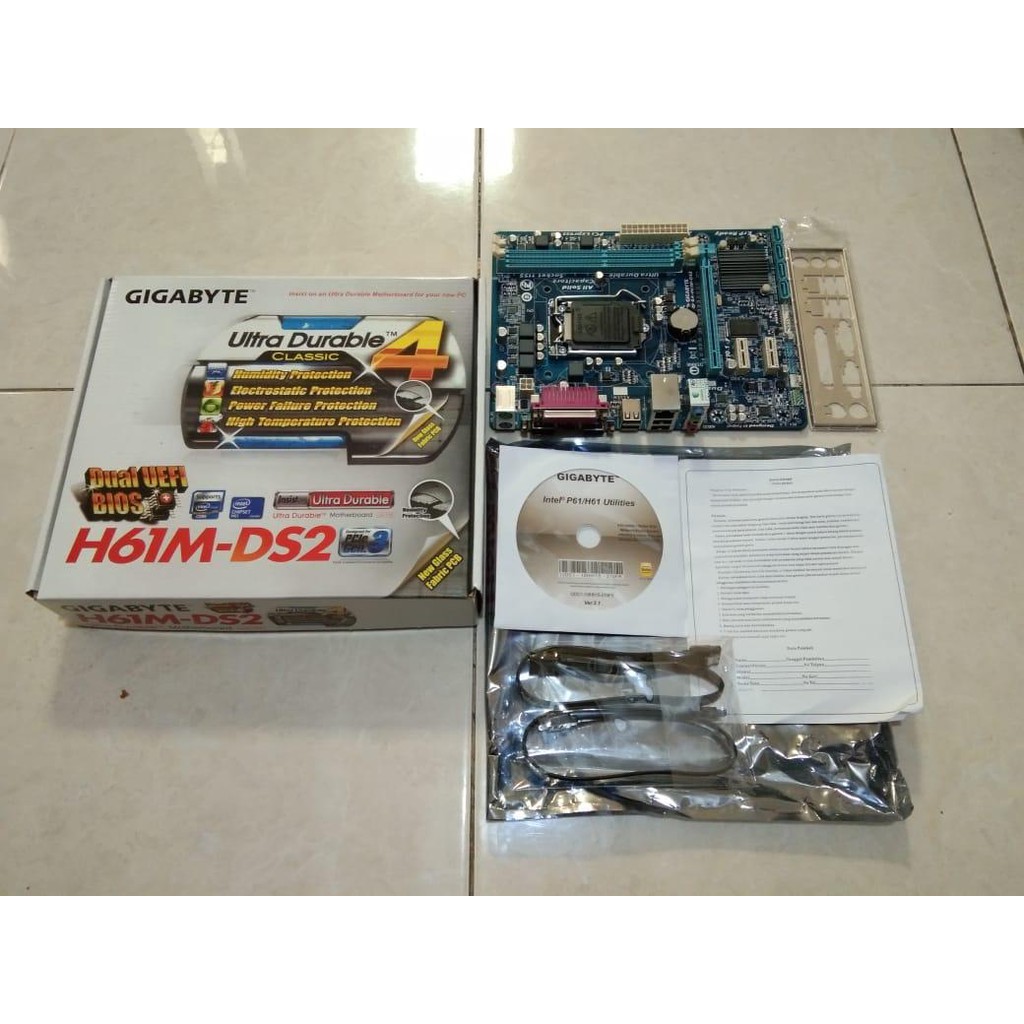

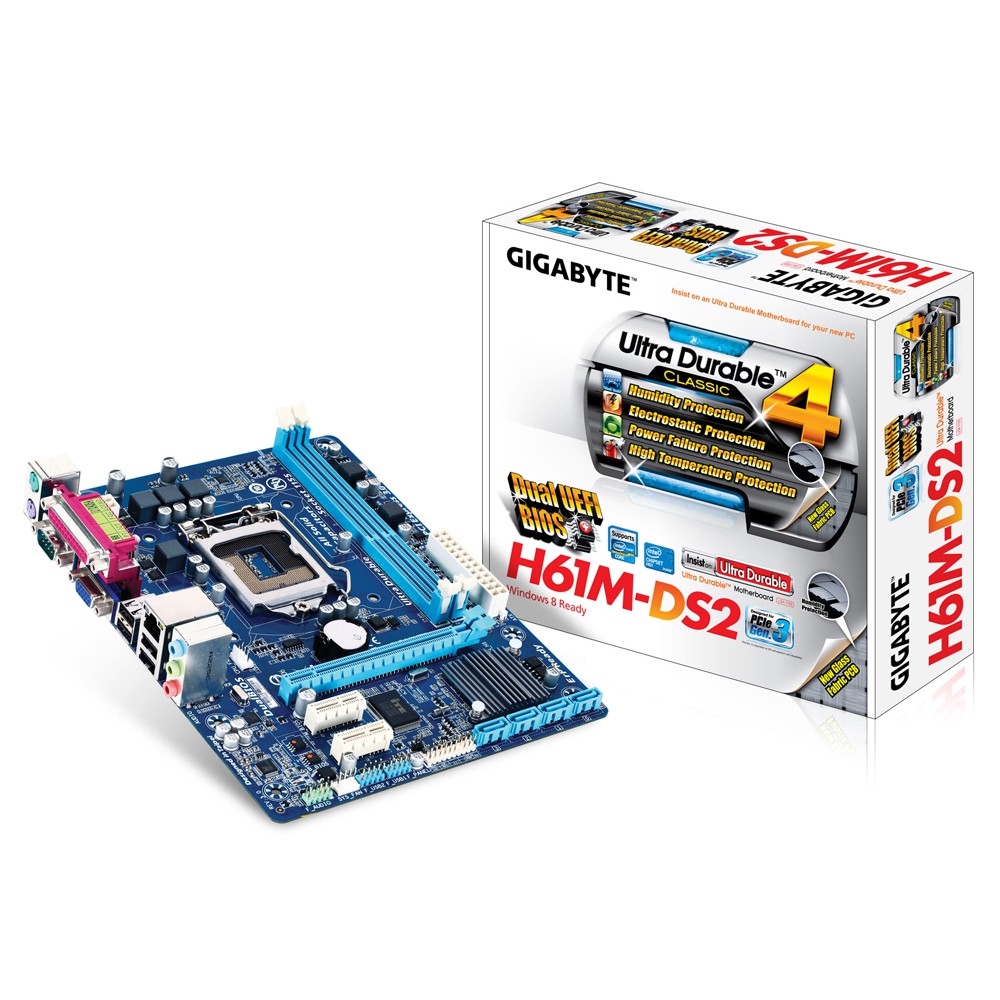

MOTHERBOARD GIGABYTE H61M-DS2 DDR3 1155

Detail MOTHERBOARD GIGABYTE H61M-DS2 DDR3 1155

Integrated chip card / card
Chip makers Intel
Main chipset Intel H61
Describe the use of chipset Intel H61 Chipset
Built-in display graphics chip CPU chip (requires CPU support)
Audio chip integrated 8-channel audio chip
LAN chip onboard Realtek RTL8111E Gigabit Ethernet

Processor Specifications

Intel CPU platform
CPU Type Core i7 / Core i5 / Core i3 / Pentium / Celeron
CPU socket LGA 1155
Description CPU supports Intel 22 / 32nm processors
Support CPU number 1

Memory Specification

Memory Type DDR3
2 × DDR3 DIMM memory slots
The maximum memory capacity of 16GB
Description support dual channel memory DDR3 1333/1066 / 800MHz Memory

Expansion slots

Graphics slot PCI-E 2.0 standard
PCI-E slot 1 × PCI-E X16 graphics slot
2 × PCI-E X1 slot
SATA interface 4 × SATA II interface

I / O interface

USB interface 4 × USB2.0 interface
External ports 1 × VGA Interface
PS / 2 port PS / 2 mouse, PS / 2 keyboard interface
Other interfaces 1 × RJ45 network interface
Audio Interface

Plate

Micro ATX motherboard plate plate

Other parameters

A 4-pin power socket, a 24-pin power connector
Power mode five
