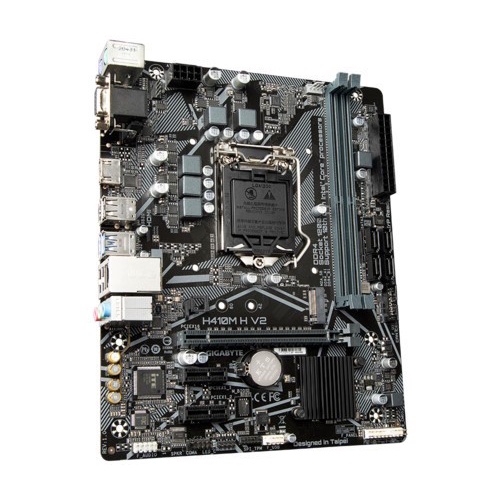

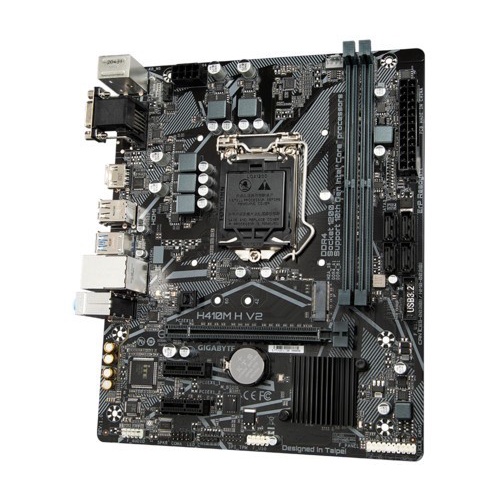

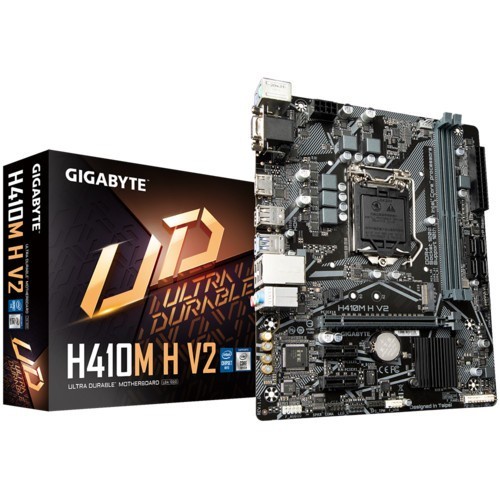

Motherboard Gigabyte H410M H V2 LGA1200 H470 DDR4 USB3.2 SATA3

Detail Motherboard Gigabyte H410M H V2 LGA1200 H470 DDR4 USB3.2 SATA3

Motherboard Gigabyte H410M H V2 LGA1200 H470 DDR4 USB3.2 SATA3

Spesifikasi :
CPU :
• Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
Chipset : Intel® H470 Express Chipset

Memory :
• Intel® Core™ i9/i7 processors:
• Support for DDR4 2933/2666/2400/2133 MHz memory modules
• Intel® Core™ i5/i3/Pentium®/Celeron® processors:
• Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
(Graphics specifications may vary depending on CPU support.)

Audio :
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
LAN : Intel® GbE LAN chip (1 Gbit/100 Mbit)

Expansion Slots :
• 1 x PCI Express x16 slot, running at x16
• 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.

Storage Interface :
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors

Garansi Resmi 3 Tahun

Gambar produk
