Motherboard Gigabyte H310M-DS2 (LGA1151, H310, DDR4, USB3.1, SATA3)

Detail Motherboard Gigabyte H310M-DS2 (LGA1151, H310, DDR4, USB3.1, SATA3)

GARANSI RESMI
KONFIRMASI STOCK terlebih dahulu sebelum melakukan pembelian.
Terima kasih.

Support for 8th Generation Intel" Core' i7 processors/Intel" Core' i5 processors/Intel" Core' i3 processors/Intel" Pentium" processors/Intel" Celeron" processors in the LGA1151 package
Intel" H310 Express Chipset
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel" Core' i7/i5 processor.
Integrated Graphics Processor-Intel" HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Realtek" ALC887 codec High Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Realtek" GbE LAN chip (10/100/1000 Mbit)
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
4 x SATA 6Gb/s connectors
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB heade
1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors

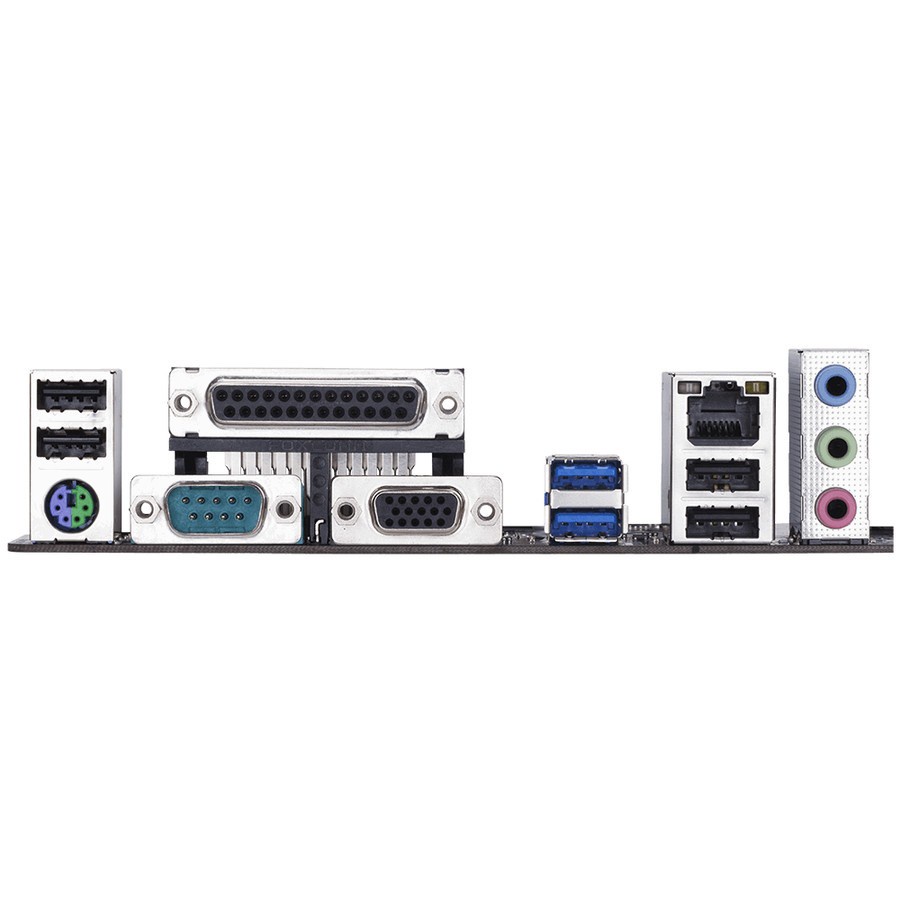

1 x PS/2 keyboard/mouse port, 1 x parallel port, 1 x serial port, 1 x RJ-45 port, 3 x audio jacks
Support for Windows 10 64-bit
1 x UMicro ATX Form Factor; 22.6cm x 17.4cmSB 3.1 Gen 1 header
1 x Clear CMOS jumper

Gambar produk
