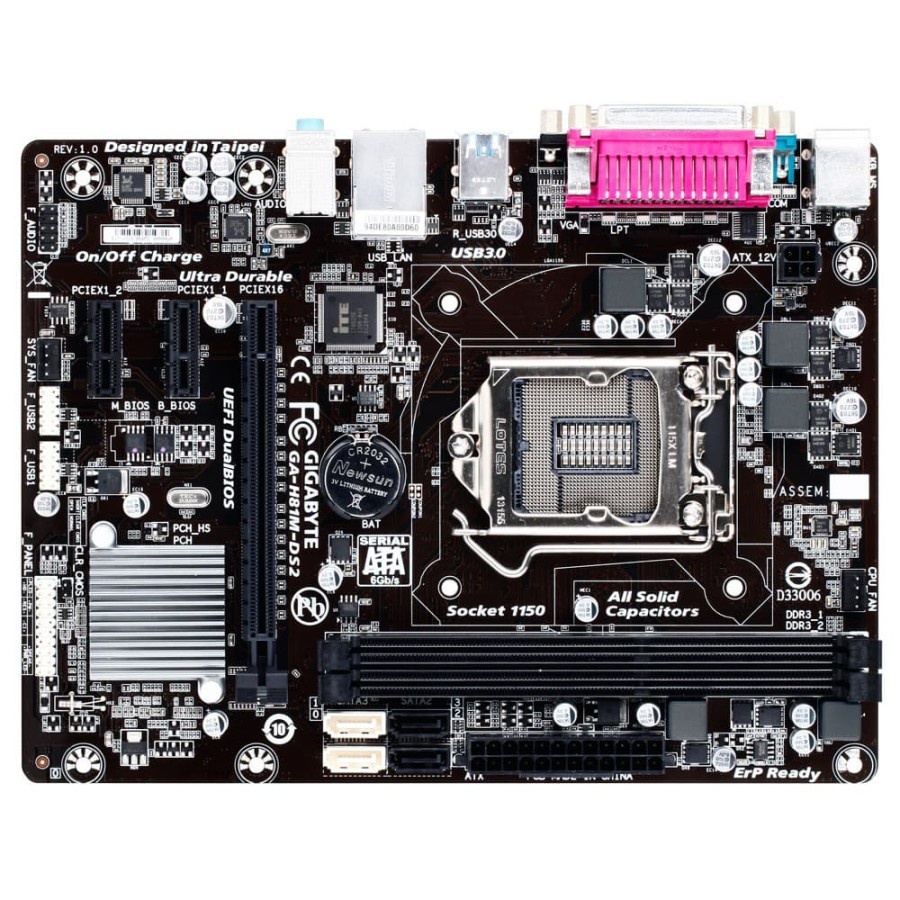

Motherboard Gigabyte GA H81M-DS2 LGA 1150 DDR3

Detail Motherboard Gigabyte GA H81M-DS2 LGA 1150 DDR3

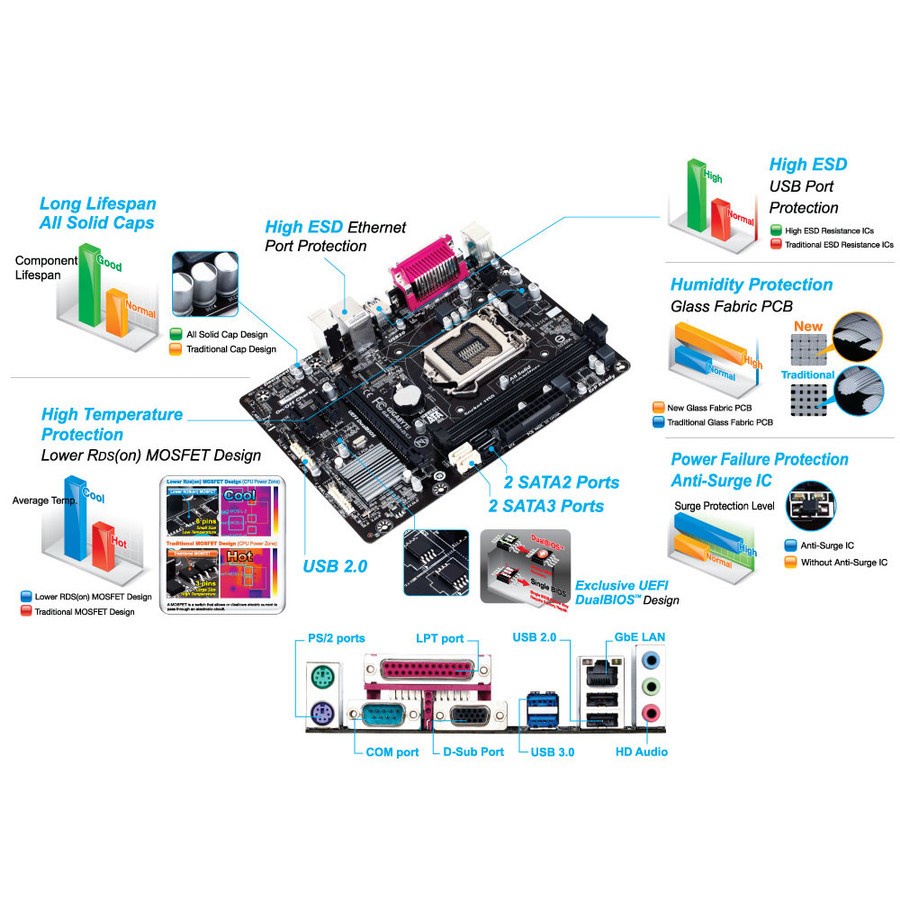

Feature :
Supports 4th Generation Intel® Core™ processors
GIGABYTE Ultra Durable™ 4 Plus Technology
Audio Noise Guard with High Quality Audio Capacitors
GIGABYTE UEFI DualBIOS™
GIGABYTE On/Off Charge™ for USB devices
LAN with high ESD Protection

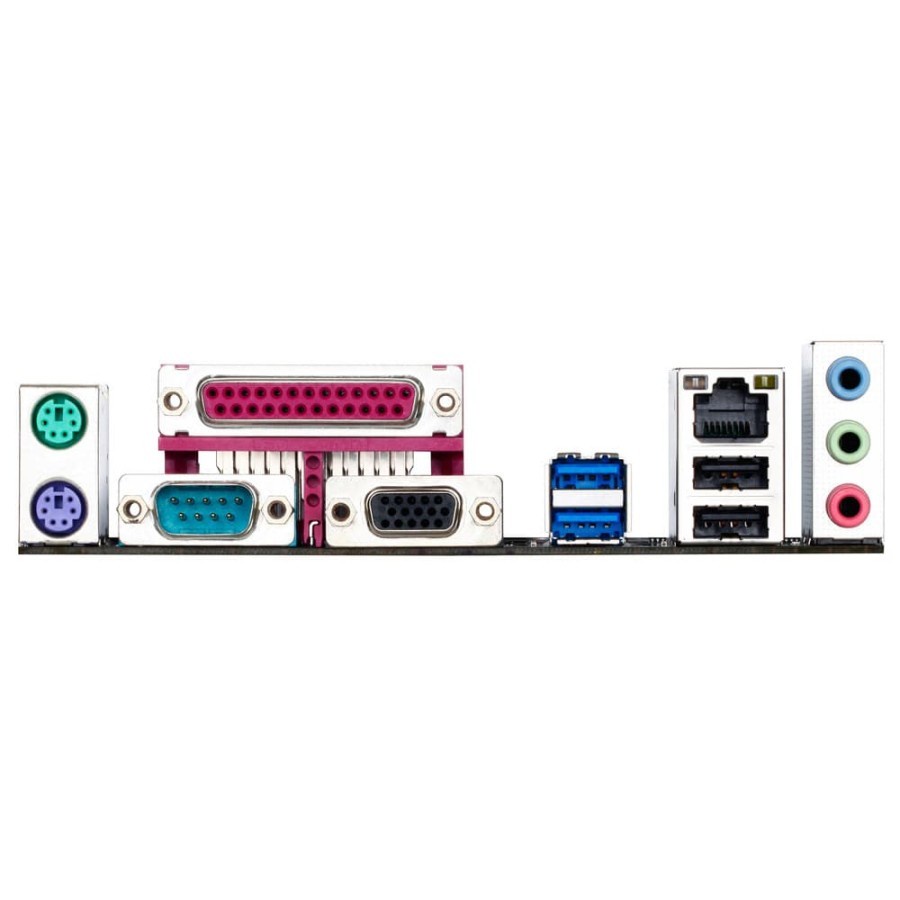

LPT, COM, D-SUB port on rear panel
All solid capacitors design

Specification :
Prosesor
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset
Intel® H81 Express Chipset

Kartu Grafis Terintegrasi
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 1 GB

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Slot Tambahan
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

Antarmuka Penyimpanan
Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)

USB
Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Paket Sofware
Norton® Internet Security (OEM version)

Sistem Operasi
Support for Windows 10/8.1/8/7

Form Factor
Micro ATX Form Factor; 22.6cm x 17cm

Garansi Resmi 3 Tahun Gigabyte Indonesia

Gambar produk
