Motherboard Gigabyte GA H61M-DS2 LGA 1155 DDR3

Detail Motherboard Gigabyte GA H61M-DS2 LGA 1155 DDR3

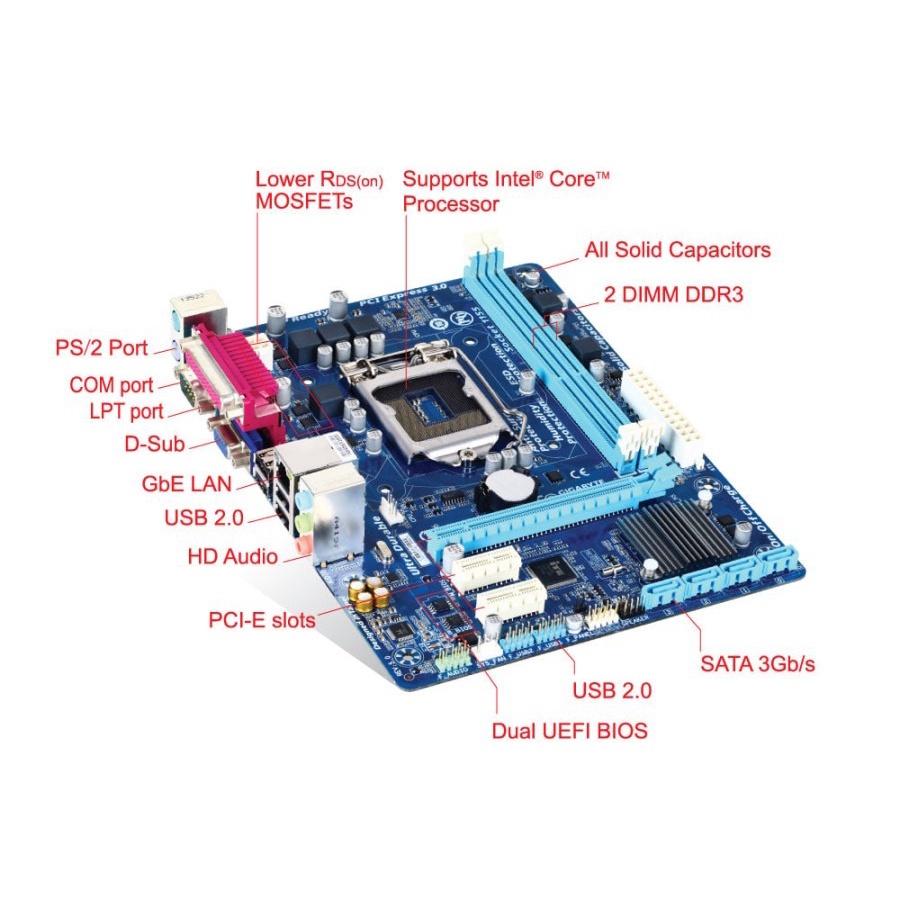

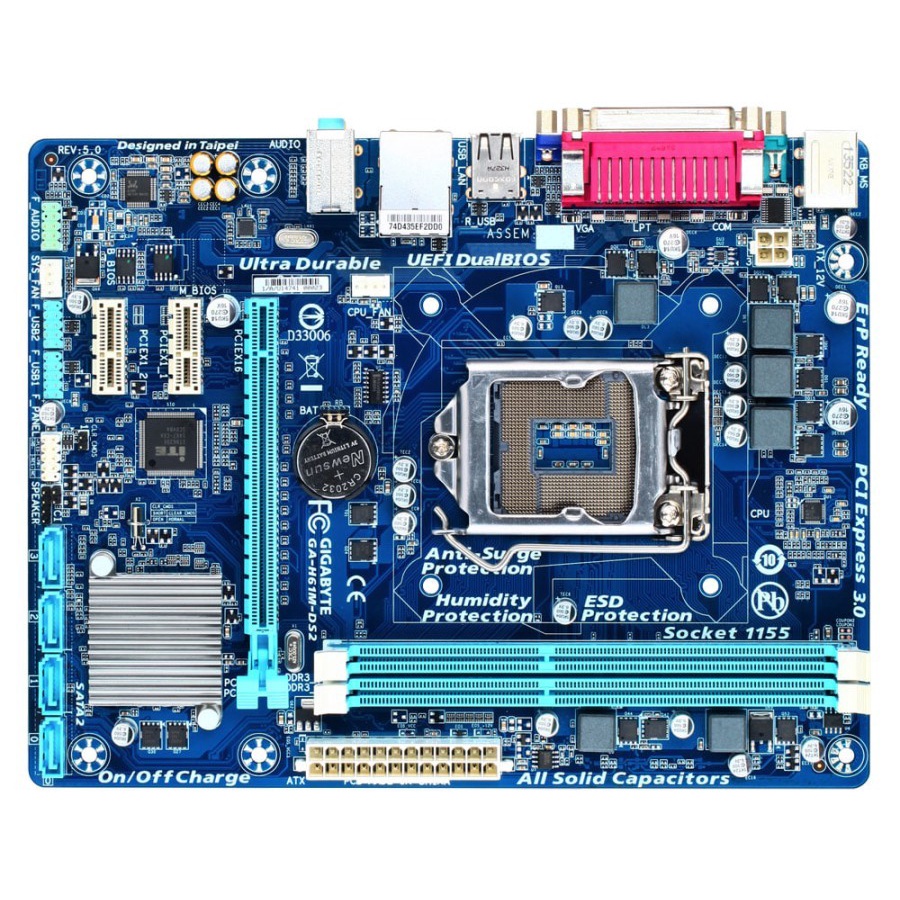

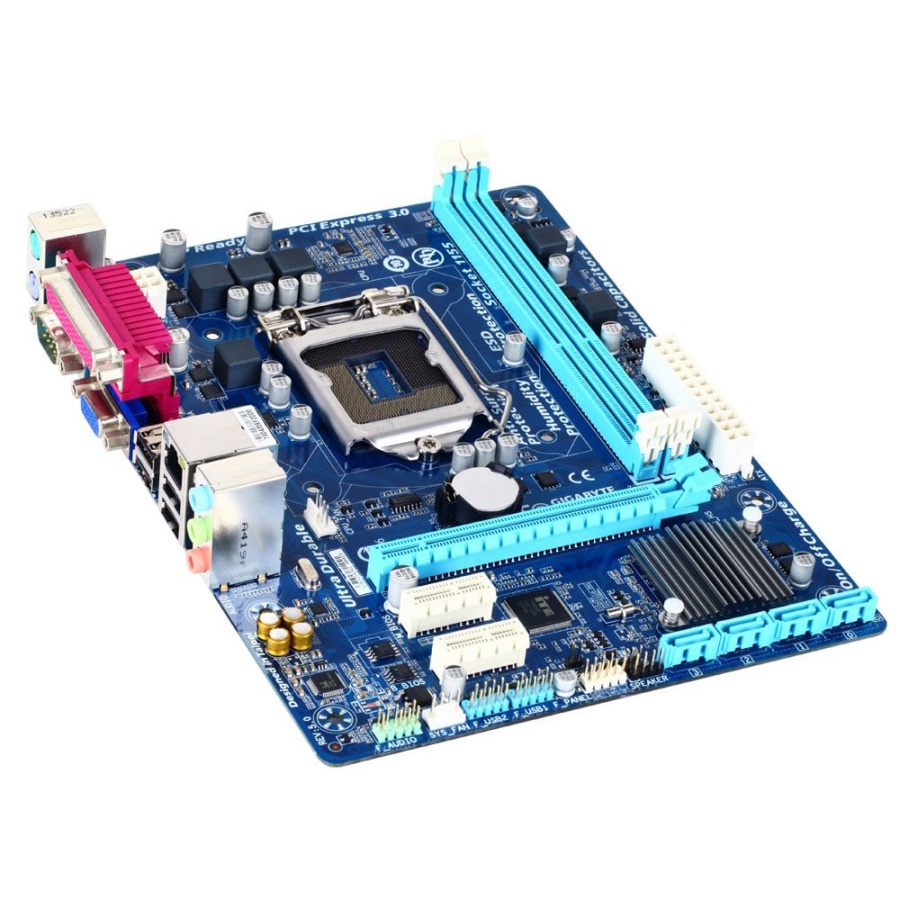

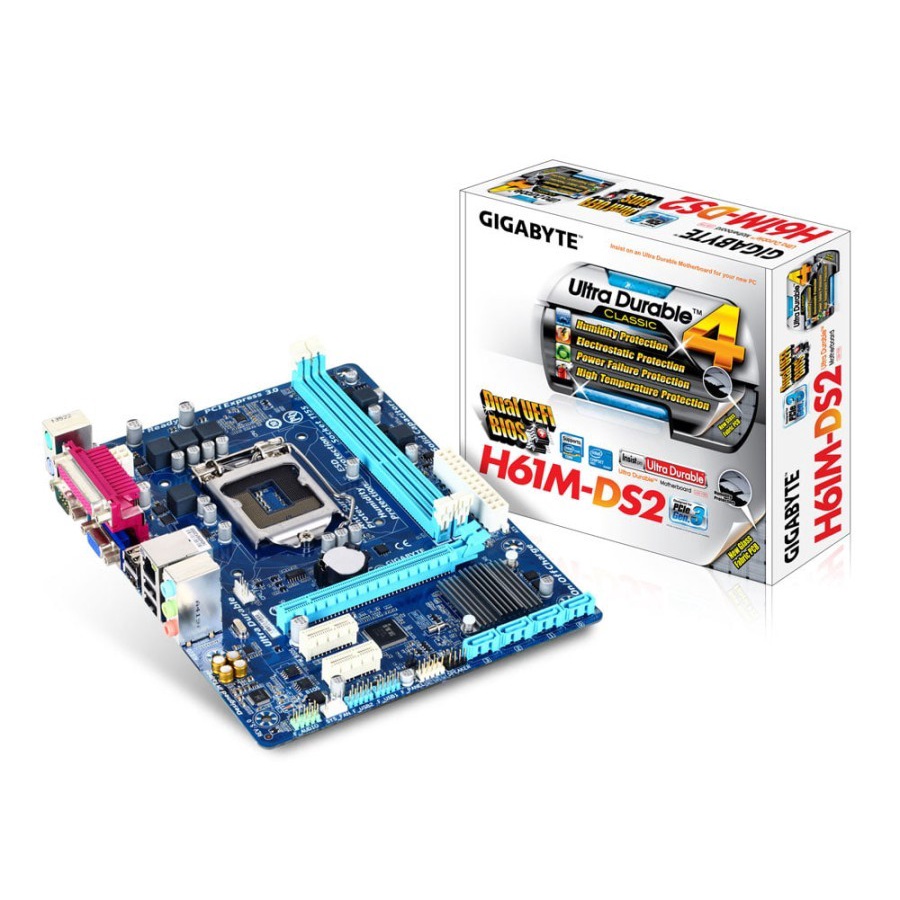

Motherboard Gigabyte H61M-DS2 R3 intel socket 1155

*Konfirmasi stok sebelum pemesanan

All new design of Ultra Durable 4 classic
Supports 3rd Gen. Intel 22nm CPUs and 2nd Gen. Intel Core CPUs (LGA1155 socket)
Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
Supports 3rd generation PCI-Express interface
Industry's Leading All Solid Capacitor Design
Touch BIOS delivers No Need for Reboot to more easily modify BIOS settings
Enhanced Intel HD Graphics 2000/3000 integrated with the processor
Innovative Smart 6 technology for smarter PC management
DualBIOS protection with 3TB+ HDD boot up capability

Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package
L3 cache varies with CPU
Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 1333/1066/800 MHz memory modules
Support for non-ECC memory modules

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x clearing CMOS jumper

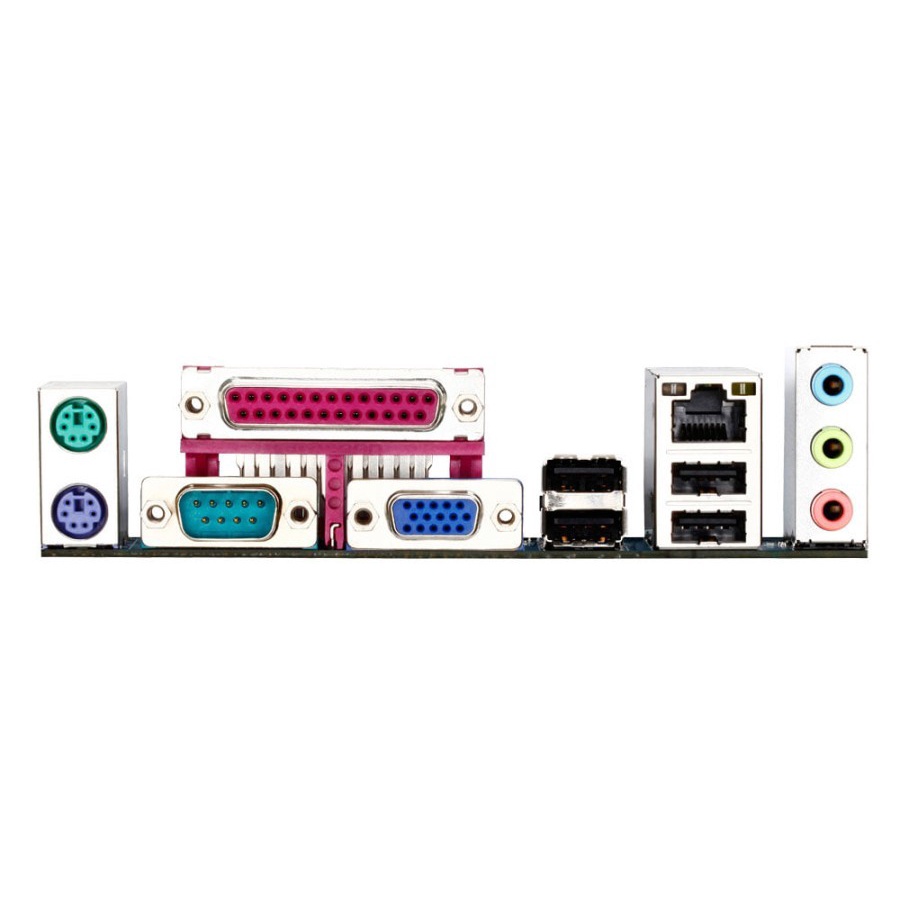

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
Micro ATX Form Factor; 22.6cm x 17.4cm

Garansi 3 tahun

Gambar produk
