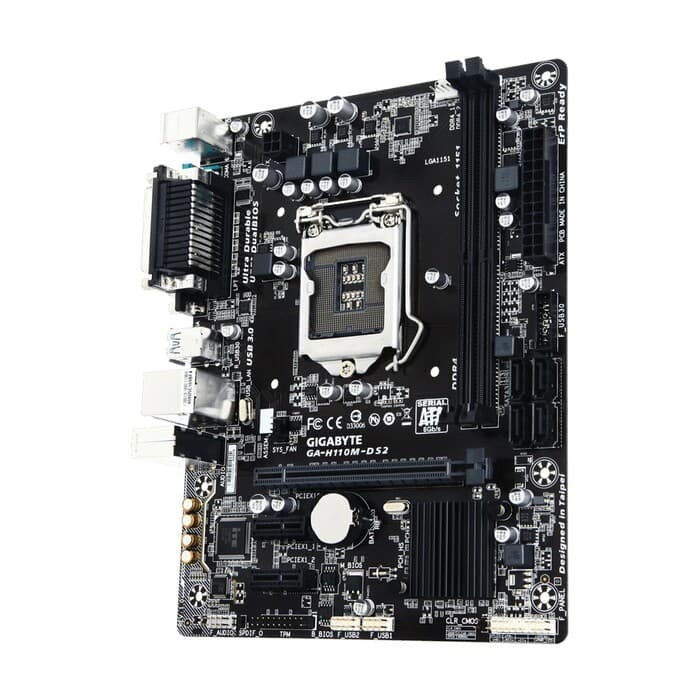

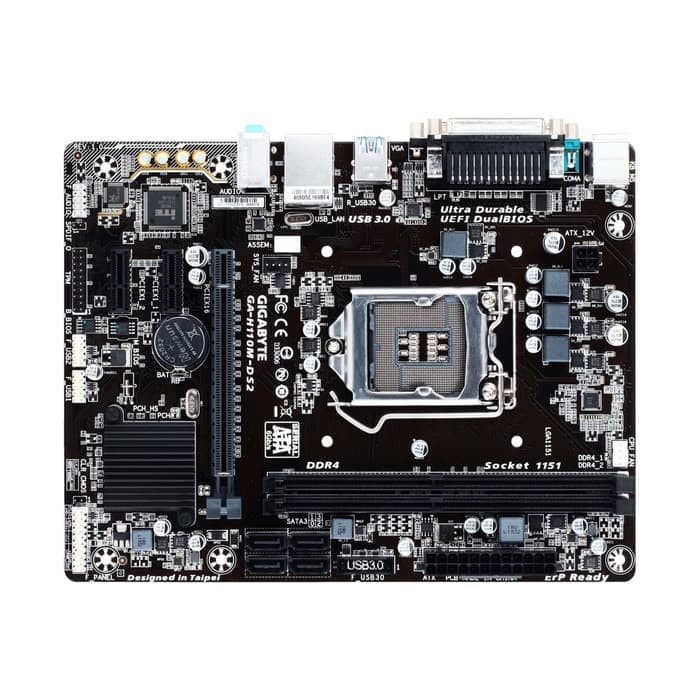

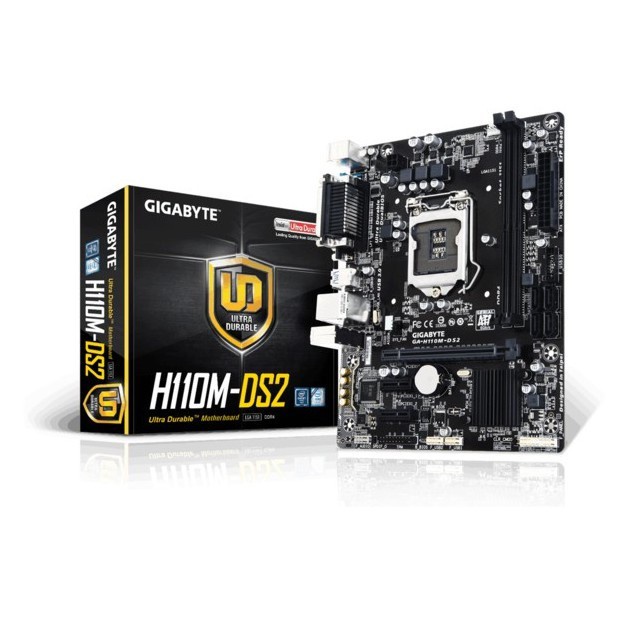

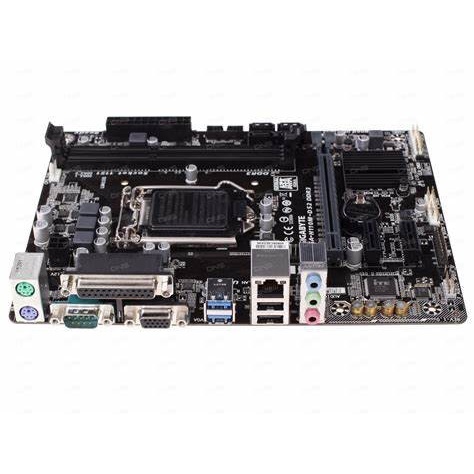

Motherboard Gigabyte GA H110M-DS2 LGA 1151 DDR4

Detail Motherboard Gigabyte GA H110M-DS2 LGA 1151 DDR4

GIGABYTE GA-H110M-DS2 DDR4 MOTHERBOARD SKYLAKE LGA 1151

-Supports 6th Generation Intel Core Processor
-Dual Channel DDR4, 2 DIMMs
-Fast USB 3.1 with USB Type-C -The Worlds Next Universal Connector
-8-channel HD Audio with High Quality Audio Capacitors
-Audio Noise Guard with LED Trace Path Lighting
-Realtek GbE LAN with cFosSpeed Internet Accelerator Software
-All new GIGABYTE APP Center, simple and easy use
-Support Intel Small Business Basics


CPU
-Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
-L3 cache varies with CPU

Chipset
Intel H110 Express Chipset

Memory
-2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
-Dual channel memory architecture
-Support for DDR4 2133 MHz memory modules
-Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics
-Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
-Support for up to 2 displays at the same time
-Maximum shared memory of 512MB

LAN
Realtek GbE LAN chip (10/100/1000 Mbit)

BIOS
-1 x 64 Mbit flash
-Use of licensed AMI UEFI BIOS
-PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
