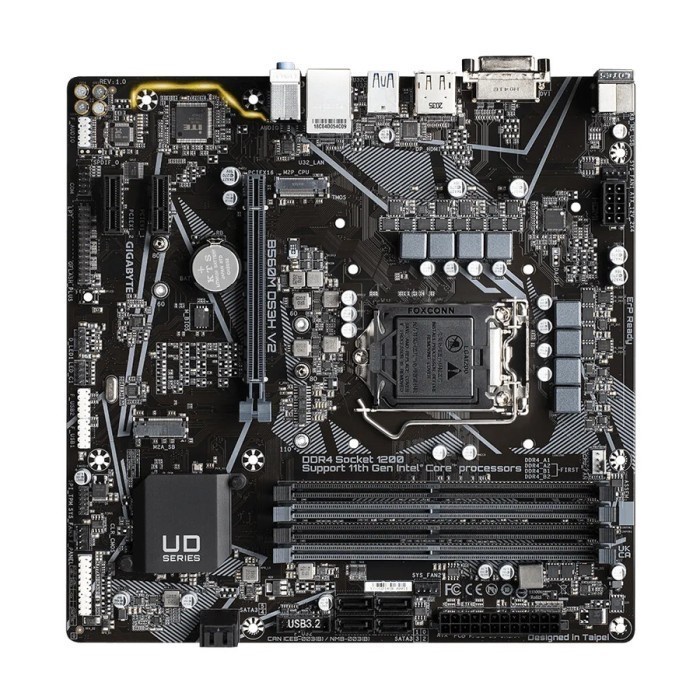

Motherboard Gigabyte B560M DS3H V2 B560 LGA 1200 DDR4 USB3.2 SATA3

Detail Motherboard Gigabyte B560M DS3H V2 B560 LGA 1200 DDR4 USB3.2 SATA3

Motherboard Gigabyte B560M DS3H V2 B560 LGA1200 DDR4 USB3.2 SATA3

CPU : 11th Generation
Intel Core i9 processors

Intel Core i7 processors
Intel Core i5 processors

10th Generation
Intel Core i9 processors
Intel Core i7 processors
Intel Core i5 processors
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors

Memory :
• 11th Generation Intel Core i9/i7/i5 processors:Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
• 10th Generation Intel Core i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel Core i5/i3/Pentium/Celeron processors:
• Support for DDR4 2666/2400/2133 MHz memory modules
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics :
• 1 x DVI-D
• 1 x DisplayPort
• 1 x HDMI port

Audio :
• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
LAN :
• Realtek GbE LAN chip (1 Gbps/100 Mbps)

BIOS :
• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System :
Support for Windows 10 64-bit

Form Factor : Micro ATX Form Factor; 24.4cm x 24.4cm

Garansi Resmi 3 Tahun

Gambar produk
