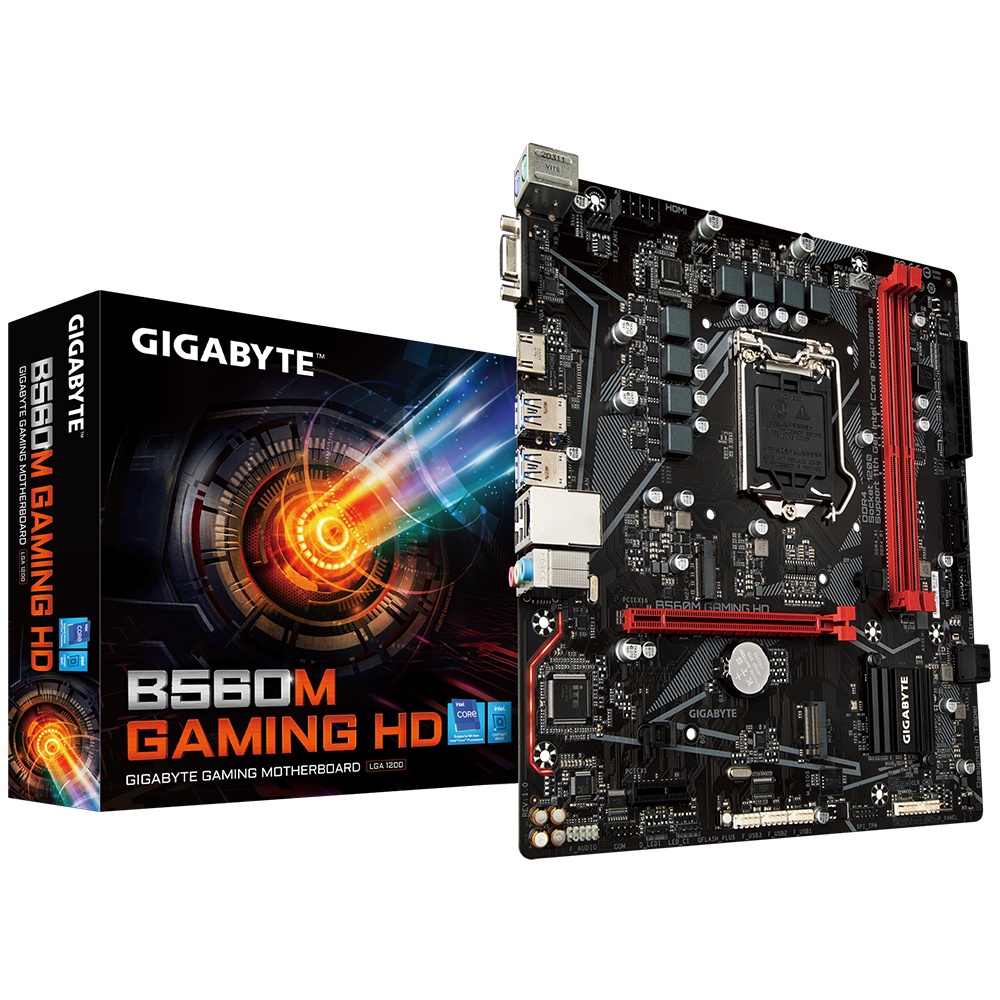

Motherboard Gigabyte B560M Gaming HD LGA1200 B560 DDR4 USB3.2 SATA3

Detail Motherboard Gigabyte B560M Gaming HD LGA1200 B560 DDR4 USB3.2 SATA3

Motherboard Gigabyte B560M Gaming HD LGA1200 B560 DDR4 USB3.2 SATA3

Spesifikasi:
CPU
LGA 1200 package:
11th Generation
Intel Core i9 processors
Intel Core i7 processors
Intel Core i5 processors

10th Generation
Intel Core i9 processors
Intel Core i7 processors
Intel Core i5 processors
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors

Chipset :Intel B560 Express Chipset

Memory :
• 11th Generation Intel Core i9/i7/i5 processors:Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel Core i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel Core i5/i3/Pentium/Celeron processors:Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics :
• 1 x D-Sub port
• 1 x HDMI port

Audio :
• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channe
LAN :
Realtek GbE LAN chip (1 Gbit/100 Mbit)

Expansion Slots :
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• 1 x PCI Express x1 slot (PCIEX1)

Storage Interface :
CPU:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2PCPU)(Note)
Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2ASB)
• 4 x SATA 6Gb/s connectors

USB :
• 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Operating System :
• Support for Windows 10 64-bit

Form Factor :
• Micro ATX Form Factor; 24.4cm x 22.5cm

Garansi Resmi 3 Tahun

Gambar produk
