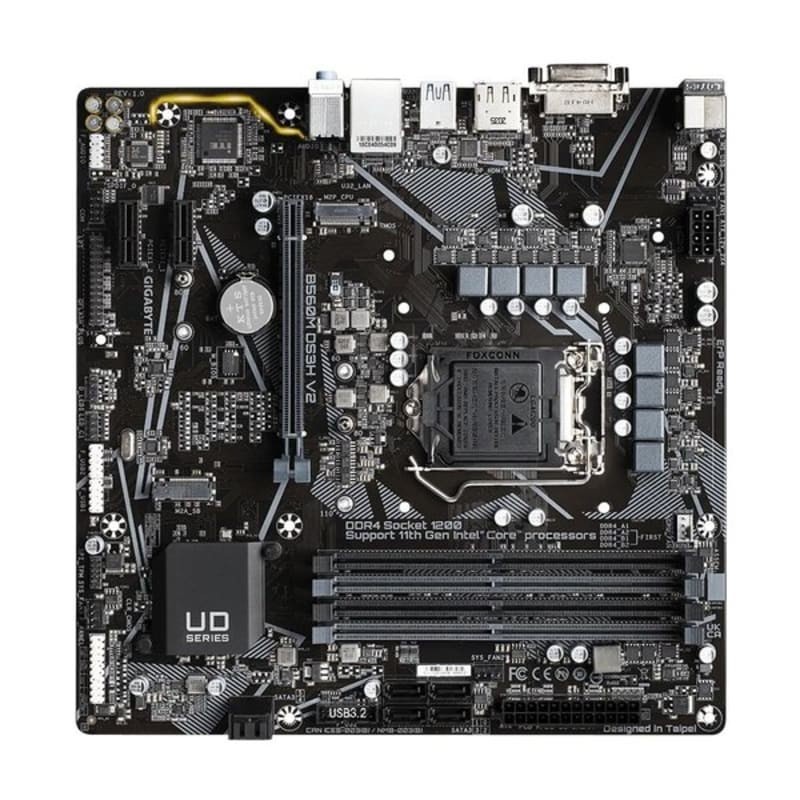

MOTHERBOARD GIGABYTE B560M DS3H V2 INTEL LGA 1200

Detail MOTHERBOARD GIGABYTE B560M DS3H V2 INTEL LGA 1200

Intel B560 Ultra Durae Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C , RGB FUSION 2.0, Q-Flash Plus
Supports 11th and 10th Gen Intel Core Series ProcessorsDual Channel Non-ECC Unbuffered DDR4, 4 DIMMsDirect 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETsDual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth ManagementUSB 3.2 Gen1 Type-C for Fast and Versatile ConnectionsHigh Quality Audio Capacitors and Audio Noise Guard with LED Trace Path LightingRGB FUSION 2.0 Supports Addressae LED & RGB LED StripsSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU
LGA1200 package

11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
Chipset

Intel B560 Express Chipse
Memory

11th Generation Intel Core i9/i7/i5 processors:

Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation
