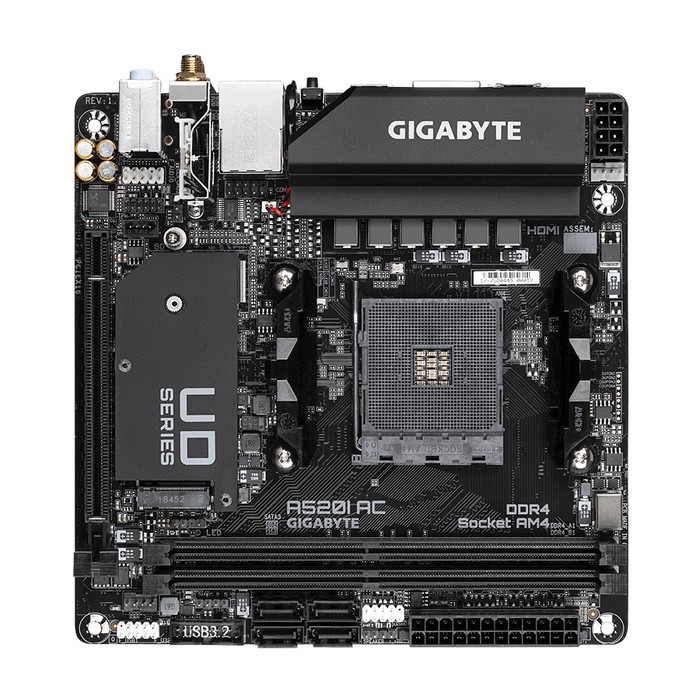

Motherboard Gigabyte AMD A520I AC AMD Socket AM4 Ryzen

Detail Motherboard Gigabyte AMD A520I AC AMD Socket AM4 Ryzen

Deskripsi Motherboard Gigabyte AMD A520I AC Socket AM4 Ryzen:

CPU AMD Socket AM4 :
-support for: 3rd Generation AMD Ryzen™ processors/
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Chipset : AMD A520
Memory :
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- 3rd Gen AMD Ryzen™ Processors:
- Support for DDR4 5100(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
- Support for DDR4 5300(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics :
- 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
- 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
Audio :
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN : Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module :
- WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 4.2
- Support for 11ac wireless standard and up to 433 Mbps data rate
Expansion Slots : 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Storage Interface : 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
USB : 4 x USB 3.2 Gen 1 ports on the back panel
Operating System : Support for Windows 10 64-bit
Form Factor : Mini-ITX Form Factor; 17.0cm x 17.0cm


Garansi 3 Tahun
