MOTHERBOARD ECS SOCKET 1155-H61H2-MV

Detail MOTHERBOARD ECS SOCKET 1155-H61H2-MV

SPESIFIKASI :
CPU
- Supports new 2nd & 3rd gen Intel Core family, Pentium, Celeron series processors in LGA1155 socket
- DMI 5.0GT/s
- VRD 12.0
- Solid Capacitor for CPU side
CHIPSET
- Intel H61 Express Chipset
GRAPHICS
- Support Intel HD Graphics 2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU)
- Supports DirectX 11
- Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology,
MEMORY
- Dual-channel DDR3 Memory architecture
- Supports DDR3 1600*/1333/1066 non-ECC, Un-buffered SDRAM Memory
- 2 X 240-pin DDR3 DIMM socket
- Support up to 16 GB
- Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation
- * Intel Ivy Bridge CPU required
EXPANSION SLOT
- 1 X PCI Express X16 Gen 3.0 slot(s)
- 1 X PCI Express X 1 Gen 2.0slot(s)
STORAGE
- 4 X Serial ATAII 3Gb/s
AUDIO
- Realtek ALC662
- Realtek ALC662 6-channel High Definition audio CODEC
- Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
- Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
- Emulation of 26 sound environments to enhance gaming experience
- Voice Cancellation and Key Shifting in Karaoke mode
- Compatible with Direct Sound 3D, A3D, I3DL2
LAN
- Realtek 8111E Gigabit Fast Ethernet Controller
- (8105E 10/100Mbps Fast Ethernet Controller optional)
- Wake-On-LAN
USB
- Support by H61 Express Chipset
- 8 X USB2.0 port(s) Up to 480 Mb/s
REAR PANEL I/O
- 1 X PS/2 Keyboard & PS/2 mouse connectors
- 1 X Audio port (Line Out/Line I

NB : Sebelum melakukan pemesanan barang .. diusahakan untuk tanya stock barang terlebih dahulu

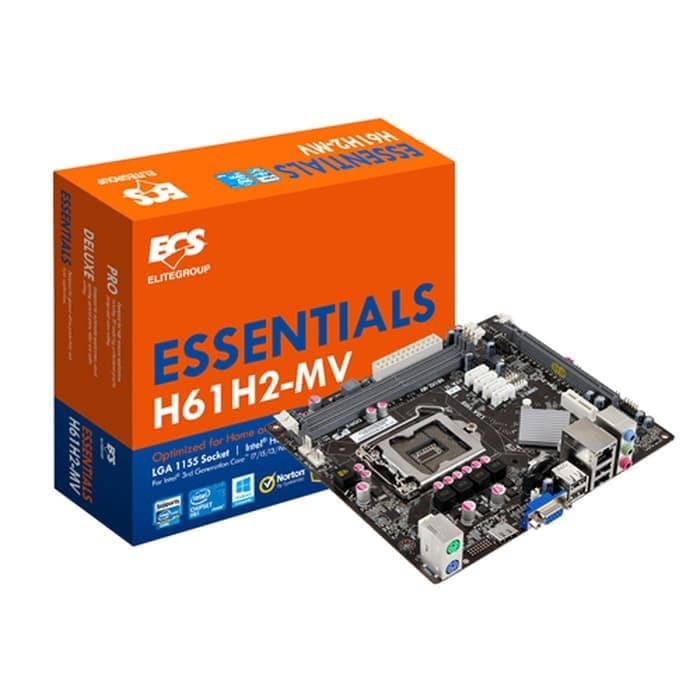

Gambar produk
