Motherboard ECS H510H6-M2 - (LGA1200, H510, DDR4, USB3.2, SATA3)

Merek: ECS | Lihat selengkapnya produk Komputer & Aksesoris dari ECS
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Motherboard ECS H510H6-M2 - (LGA1200, H510, DDR4, USB3.2, SATA3)
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Motherboard ECS H510H6-M2 - (LGA1200, H510, DDR4, USB3.2, SATA3)

spesifikasi

CPU
Supports 11th Gen and 10th Intel® Core™ family/ Pentium / Celeron series processors for LGA 1200 socket
5+2 Phase Thermal Design Power
CHIPSET
Intel® H510 Express Chipset
GRAPHICS
Integrated Intel UHD Graphics
MEMORY
Dual-Channel DDR4 Memory architecture
2 X 288-pin DDR4 DIMM socket
∟ Support up to 64 GB*
EXPANSION SLOT
1 X PCI Express X16 Gen 4.0 slot(s)
1 X PCI Express X 1 Gen 3.0 slot(s)
STORAGE
4 X Serial ATAIII 6Gb/s
AUDIO
6-Channel HD audio CODEC
Realtek ALC897 6-channel High Definition audio CODEC
LAN
Other chip: Realtek RT8111H Gigabit Controllerr LAN
Wake-On-LAN
USB
4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
---- Back Panel 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
---- Back Panel 4 port(s)
REAR PANEL I/O
1 X PS/2 combo connector
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
1 X Display port
2 X USB 3.2 Gen 1x1 Type A port(s)
4 X USB2.0 port(s)
CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 8-pin ATX 12V Power Connector
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Speaker header
1 X USB 3.2 Gen 1x1 header
1 X USB 2.0 header
∟ Support additional 2 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
1 X Chassis intrusion header
SYSTEM BIOS
AMI BIOS with 16 MB SPI Flash ROM
ACPI & DMI
F7 hot key for boot up devices option
Dual Display
Support ECS EZ BIOS
Support GUI UEFI BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey
Dual-Monitor function
FORM FACTOR
mATX Form Factor
220*200 mm
OS SUPPORT
Windows 10 64-bit
BUNDLED SOFTWARE
ECS Intelligent EZ Utility : eDLU, eSF

Gambar produk

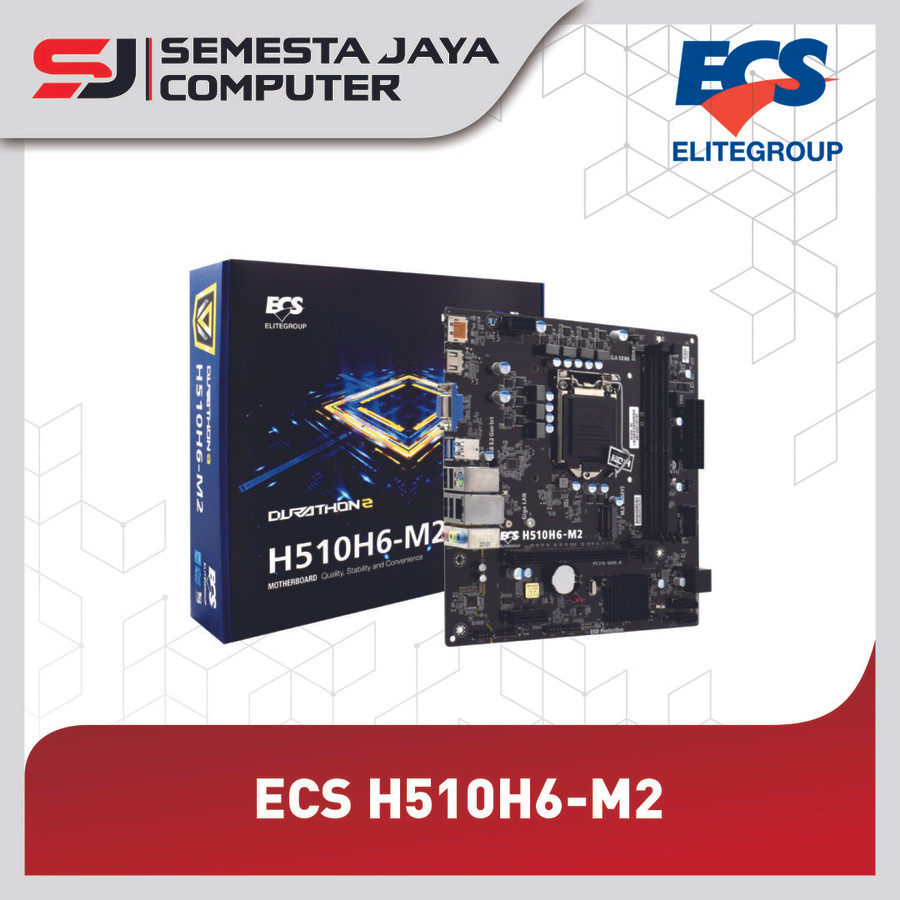

Motherboard ECS H510H6-M2 - (LGA1200, H510, DDR4, USB3.2, SATA3)

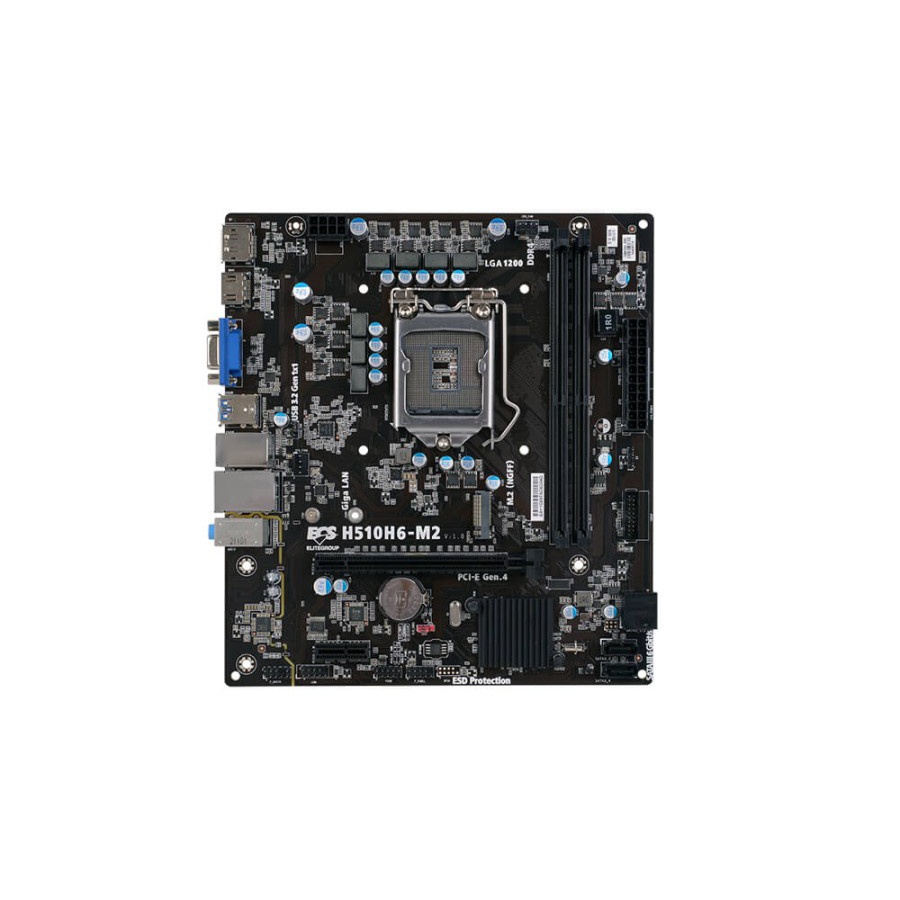

Motherboard ECS H510H6-M2 - (LGA1200, H510, DDR4, USB3.2, SATA3)

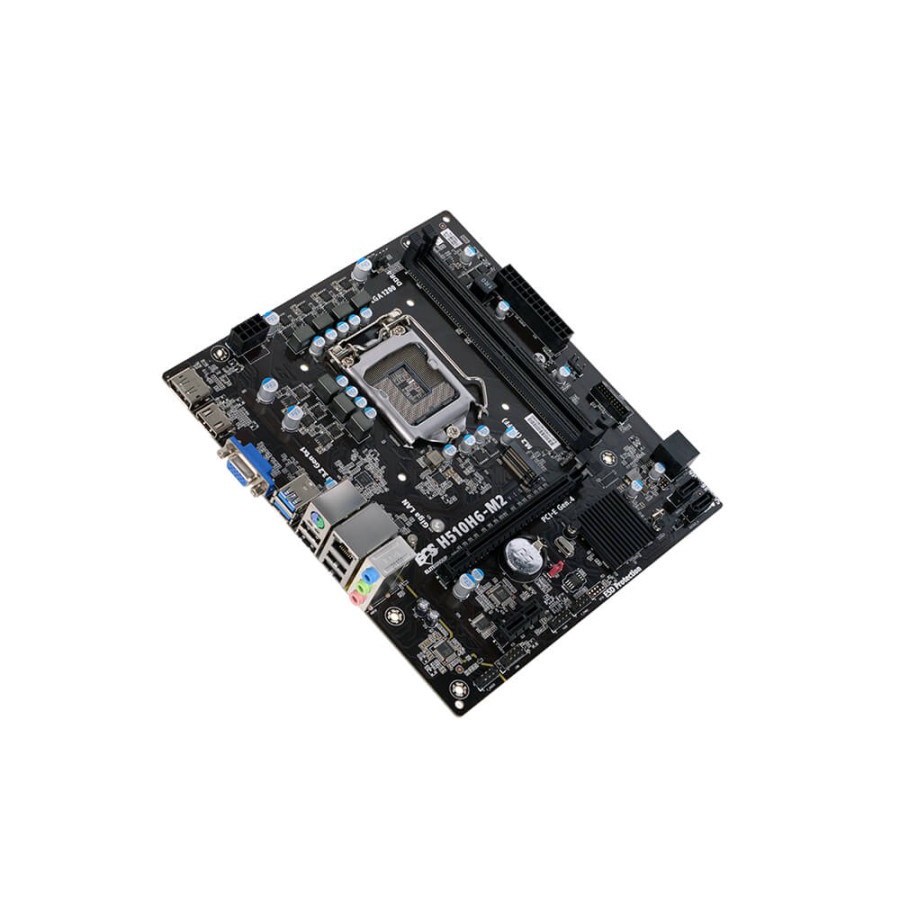

Motherboard ECS H510H6-M2 - (LGA1200, H510, DDR4, USB3.2, SATA3)
