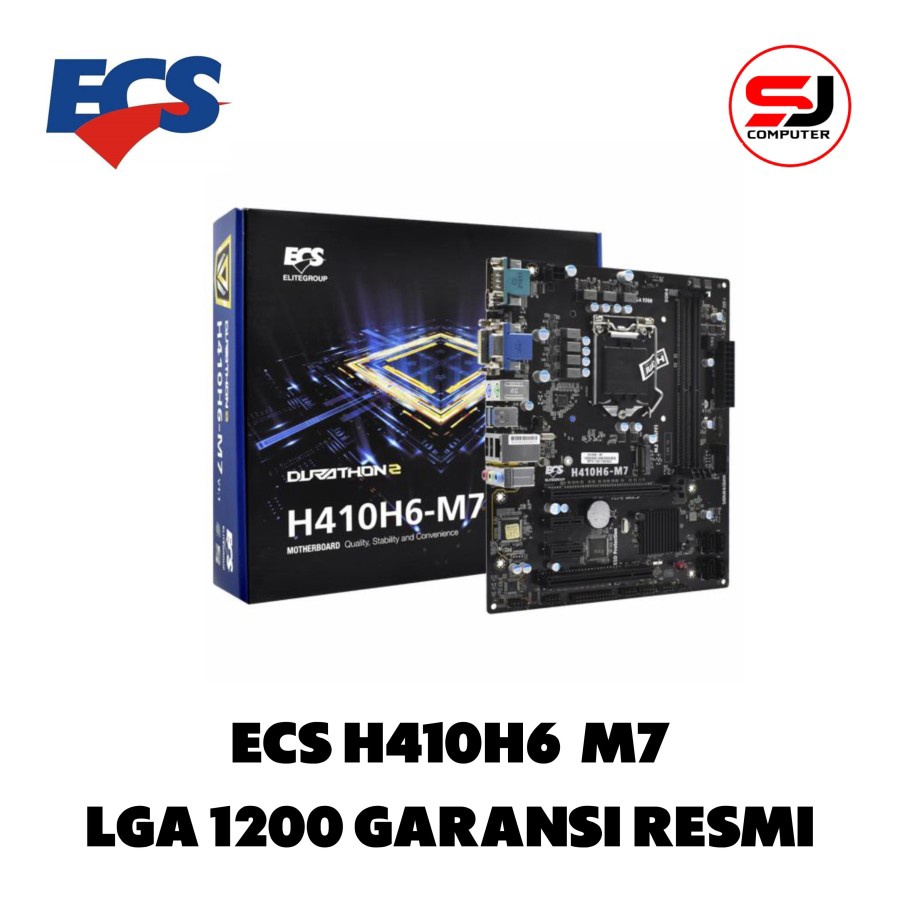

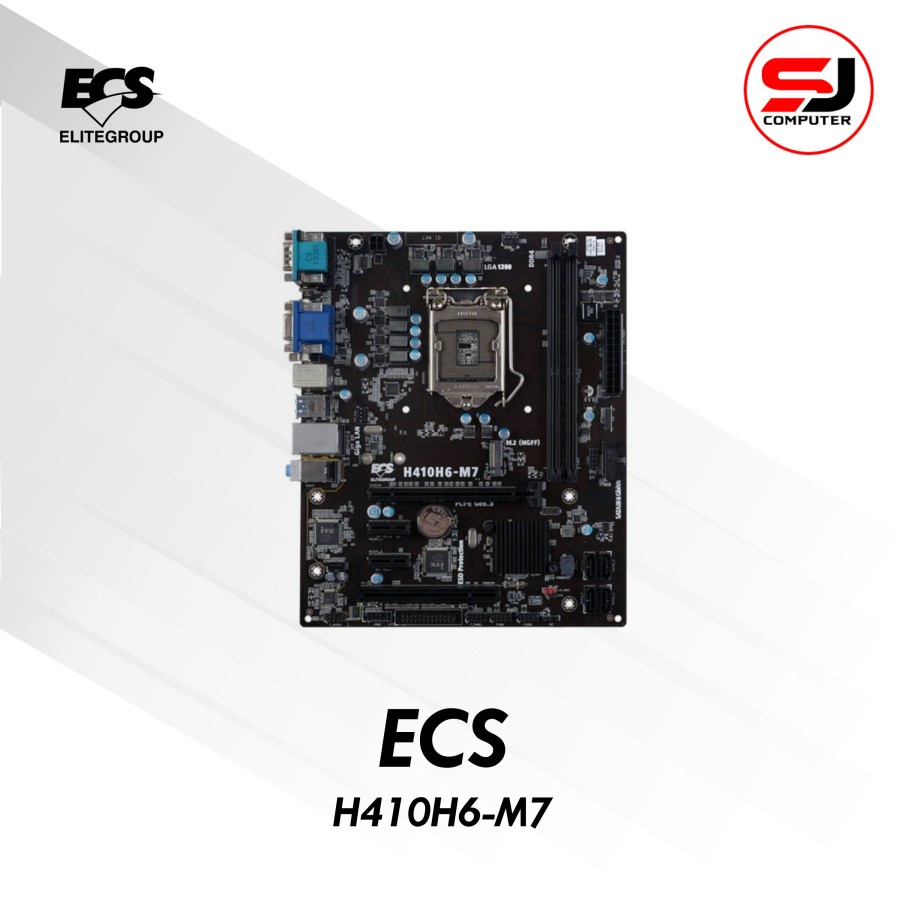

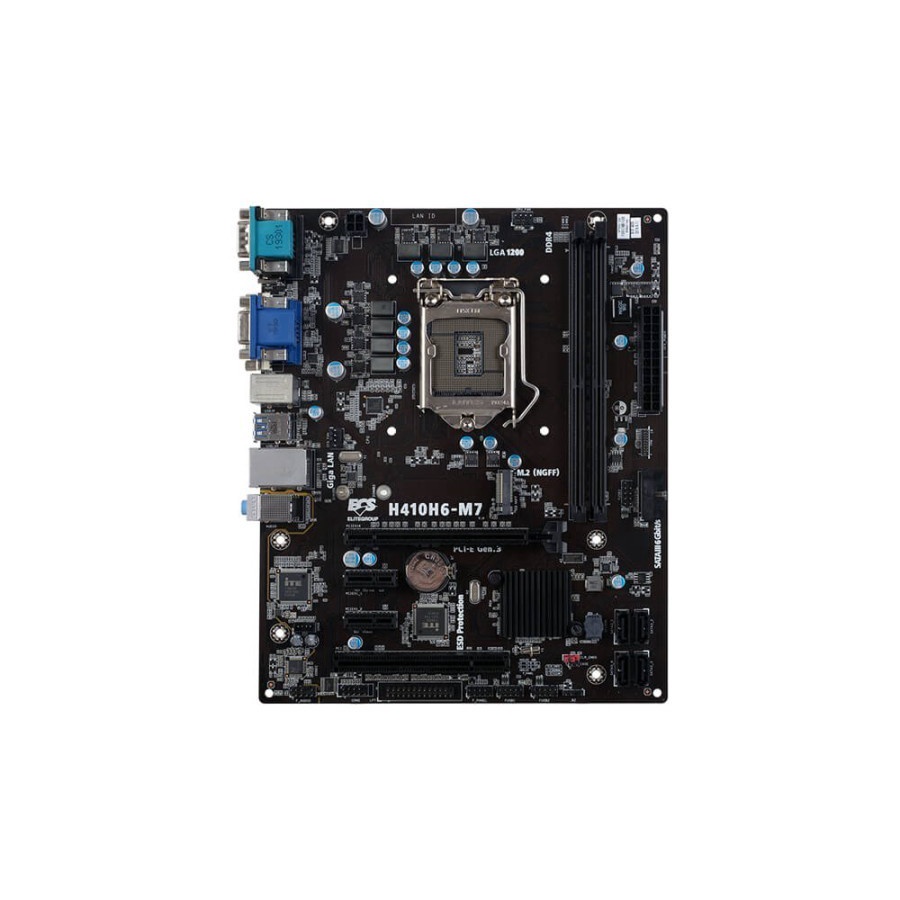

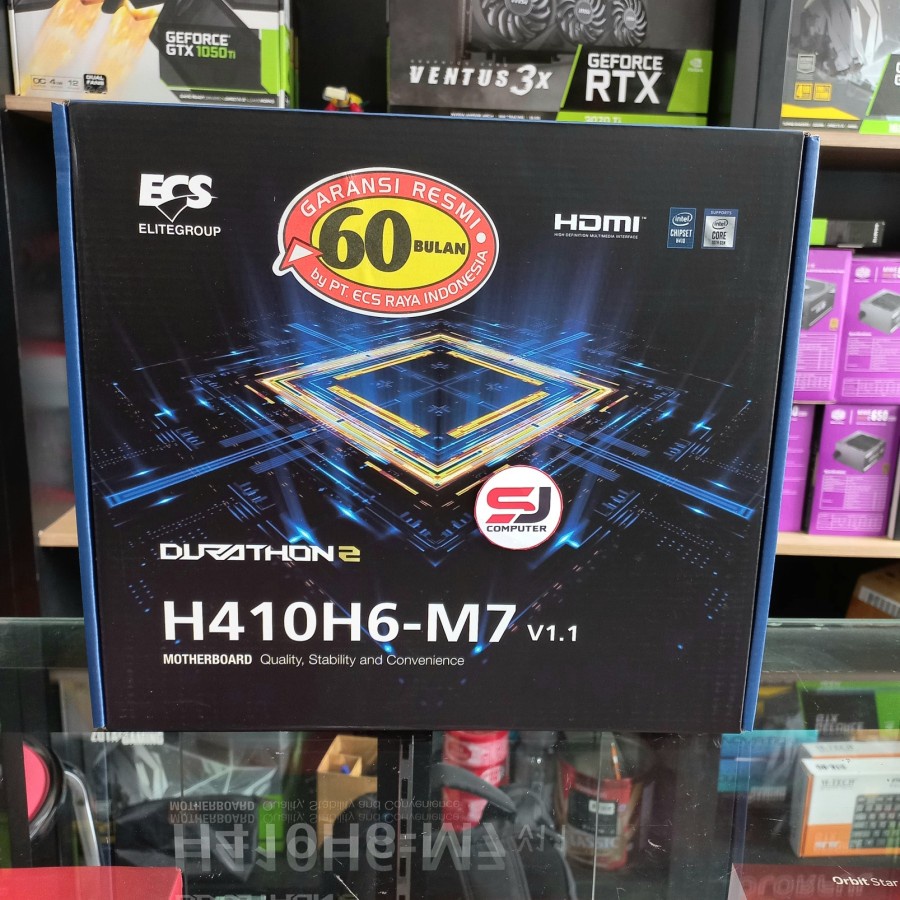

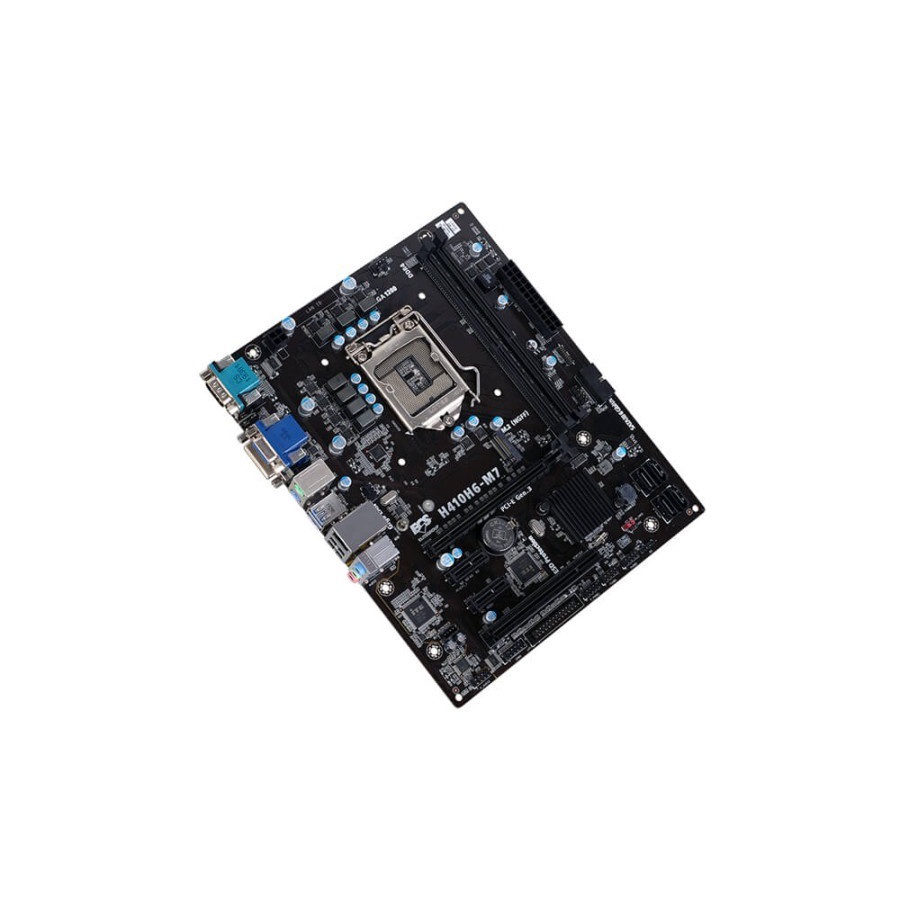

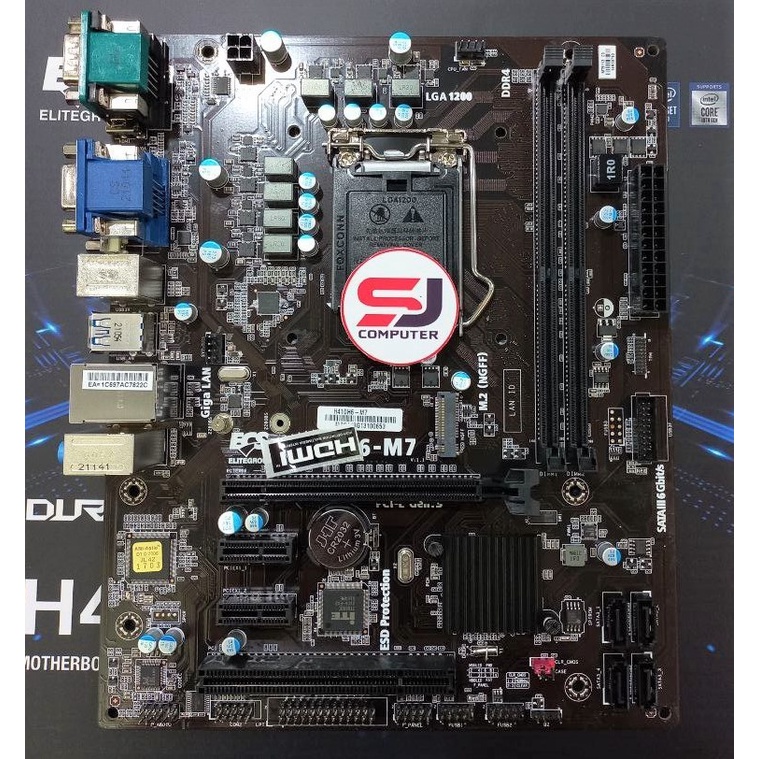

MOTHERBOARD ECS H410H6-M7 LGA 1200, H410, DDR4, SATAIII, GBLan, USB3.2

Detail MOTHERBOARD ECS H410H6-M7 LGA 1200, H410, DDR4, SATAIII, GBLan, USB3.2

Garansi Resmi ECS Indonesia

Supports 10th Gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1200 socket
6+1 Phase Thermal Design Power
100% Solid capacitor design
CHIPSET
Intel® H410 Express Chipset
Supports DirectX® 12
Dual-channelDDR4 Memory architecture
Supports DDR4 2933/2666/2400 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
Support up to 64 GB*

1 X PCI Express X16 Gen 3.0 slot(s)
2 X PCI Express X 1 Gen 2.0 slot(s)
1 X M.2 slot for SSD
For 2280/2260 PCI-e x 2 SSD
1 X PCI slot(s)

Support by Intel® H410 Express Chipset
4 X Serial ATAIII 6Gb/s
AUDIO
6-Channel HD audio CODEC
Realtek ALC887 6-channel High Definition audio CODEC

Realtek RTL8111H Gigabit Fast Ethernet Controller
Wake-On-LAN

Support by Intel® H410 Express Chipset
4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
---- Back Panel 2 port(s)
---- Onboard 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
---- Back Panel 2 port(s)
---- Onboard 4 port(s)

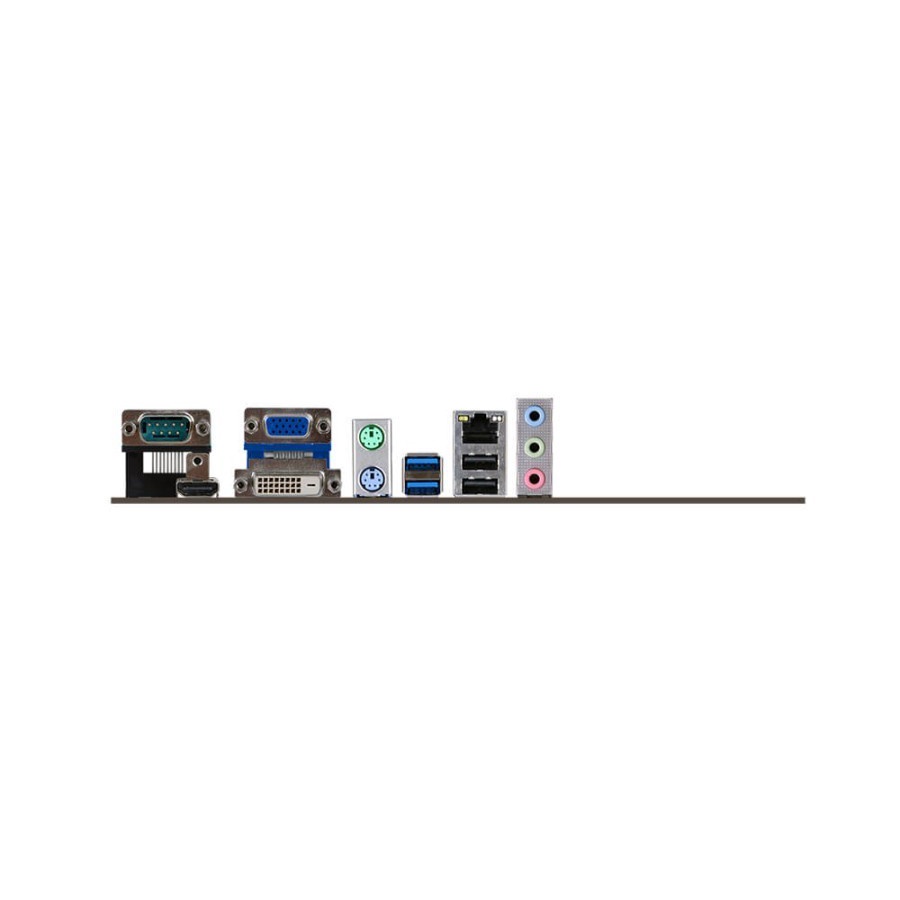

REAR PANEL I/O
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Serial port (COM)
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X DVI-I port(s)
1 X D-Sub (VGA) port(s)
2 X USB 3.2 Gen 1x1 port(s)
2 X USB2.0 port(s)

CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X USB 3.2 Gen 1x1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 4 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
Support additional 1 Serial Port (COM)
1 X Parallel port header (LPT)
1 X Chassis intrusion header
1 X TPM header (SPI Type)
SYSTEM BIOS
AMI BIOS with 128 MB SPI Flash ROM
F7 hot key for boot up devices option
Support GUI UEFI BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Supports PgUp clear CMOS Hotke
