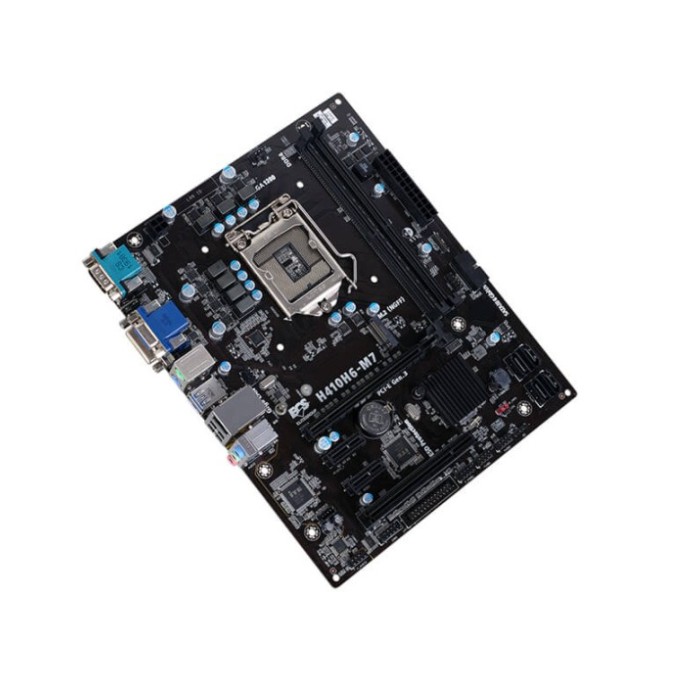

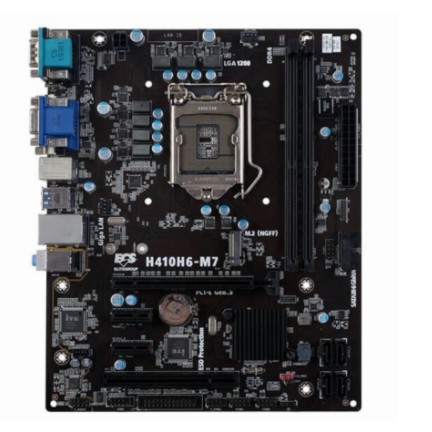

Motherboard ecs h410 intel gen 10 Lga1200 sata3 m2 ddr4 hdmi vga dvi com ps2 usb lan 3.5mm h410h6-m7

Detail Motherboard ecs h410 intel gen 10 Lga1200 sata3 m2 ddr4 hdmi vga dvi com ps2 usb lan 3.5mm h410h6-m7

CPU
Supports 10th Gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1200 socket
6+1 Phase Thermal Design Power
100% Solid capacitor design
CHIPSET
Intel® H410 Express Chipset
GRAPHICS
Supports DirectX® 12
MEMORY
Dual-channelDDR4 Memory architecture
Supports DDR4 2933/2666/2400 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
Support up to 64 GB*
EXPANSION SLOT
1 X PCI Express X16 Gen 3.0 slot(s)
2 X PCI Express X 1 Gen 2.0 slot(s)
1 X M.2 slot for SSD
For 2280/2260 PCI-e x 2 SSD
1 X PCI slot(s)
STORAGE
Support by Intel® H410 Express Chipset
4 X Serial ATAIII 6Gb/s
AUDIO
6-Channel HD audio CODEC
Realtek ALC887 6-channel High Definition audio CODEC
LAN
Realtek RTL8111H Gigabit Fast Ethernet Controller
Wake-On-LAN

USB

Support by Intel® H410 Express Chipset

4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s

---- Back Panel 2 port(s)

---- Onboard 2 port(s)

6 X USB2.0 port(s) Up to 480 Mb/s

---- Back Panel 2 port(s)

---- Onboard 4 port(s)

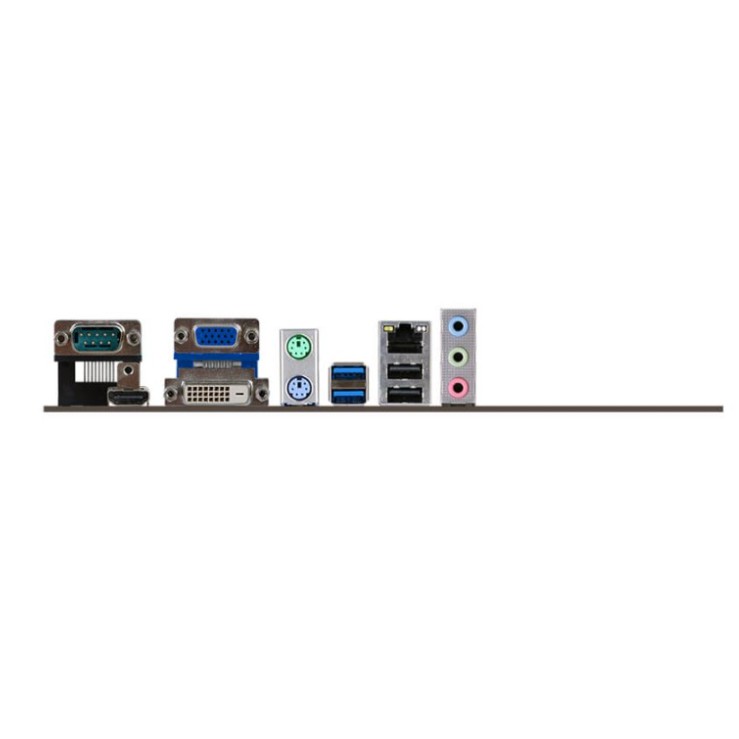

REAR PANEL I/O

1 X PS/2 Keyboard & PS/2 mouse connectors

1 X Serial port (COM)

1 X Audio port (Line Out/Line In/Mic In)

1 X RJ-45 port

1 X HDMI port(s)

1 X DVI-I port(s)

1 X D-Sub (VGA) port(s)

2 X USB 3.2 Gen 1x1 port(s)

2 X USB2.0 port(s)

CONNECTORS & HEADERS

1 X 24-pin ATX Power Supply connector

1 X 4-pin 12V Power connector

1 X 4-pin CPU_FAN connector with smart fan

1 X 4-pin SYS_FAN connector with smart fan

1 X Front Panel switch/LED header

1 X Front panel audio header

1 X USB 3.2 Gen 1x1 header

Support additional 2 USB ports

2 X USB 2.0 header

Support additional 4 USB ports

4 X SATA III 6Gb/s connector(s)

1 X CLR_CMOS header

1 X Serial port header (COM)

Support additional 1 Serial Port (COM)

1 X Parallel port header (LPT)

1 X Chassis intrusion header

1 X TPM header (SPI Type)
