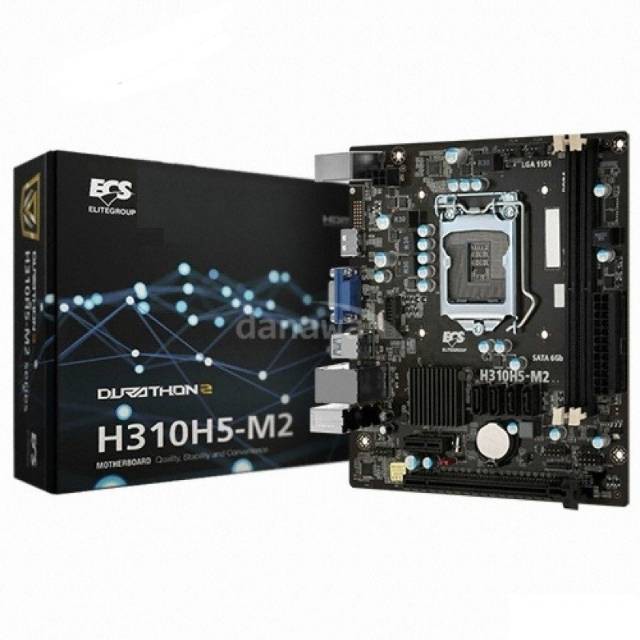

MOTHERBOARD ECS-CHIPSET NTEL H310H5-M2 Socket 1151

Detail MOTHERBOARD ECS-CHIPSET NTEL H310H5-M2 Socket 1151

CPU
Supports 8th gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1151 socket
Please refer to CPU support list for details
CHIPSET
Intel® H310 Express Chipset
GRAPHICS
Supports DirectX® 12
MEMORY
Dual-channel DDR4 Memory architecture
Supports DDR4 2666/ 2400 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
Support up to 32 GB*
EXPANSION SLOT
1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0 slot(s)
STORAGE
Support by Intel® H310 Express Chipset
4 X Serial ATAIII 6Gb/s
AUDIO
6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN
Realtek 8111H Gigabit Fast Ethernet Controller
Wake-On-LAN
USB
Support by H310 Express Chipset
4 X USB3.1 Gen1 port(s) up to 5Gb/s
Back Panel 2 port(s)
Onboard 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 2 port(s)
REAR PANEL I/O
1 X PS/2 combo connector
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X D-Sub (VGA) port(s)
1 X HDMI port(s) (DVI port(s), optional)
2 X USB3.1 Gen1 port(s)
4 X USB2.0 port(s)
CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
