MOTHERBOARD ECS B350-AMD

Detail MOTHERBOARD ECS B350-AMD

CPU
Supports AMD AM4 socket for AMD Ryzen™ processors and 7th Gen A-series / Athlon™ Processors
4+2 Phase Thermal Design Power
100% Solid capacitor design
Please refer to CPU support list for details
CHIPSET
AMD® B350
GRAPHICS
Supports DirectX® 12
Supports HDMI 1.4a & Premium Audio
Supports DP 1.2
Supports AMD Dual Graphics
MEMORY
Dual-channel DDR4 Memory architecture
Supports DDR4 2667/2400 non-ECC, Un-buffered SDRAM Memory
4 X 288-pin DDR4 DIMM socket
Support up to 64 GB*
* Due to AMD CPU spec limitation, please refer to Memory QVL for more information.
EXPANSION SLOT
1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X16 Gen 2.0 slot(s)
runs at x2
2 X PCI Express X 1 Gen 2.0 slot(s)
Supports AMD CrossFire™ Technology
1 X M.2 slot for SSD
For 2260/2280 SATA/PCIE X2 SSD
1 X M.2 slot for WiFi/BT PCIe Gen 2
STORAGE
Support by AMD B350 Express Chipset
4 X Serial ATAIII 6Gb/s
RAID0, RAID1,RAID10 configuration
AUDIO
6-Channel HD audio CODEC
Compliant with HD audio specification
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN
RTL 8111GN Gigabit Fast Ethernet Controller
Wake-On-LAN
USB
Support by B350 Express Chipset
6 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s
Back Panel 4 port(s)
Onboard 2 port(s)
5 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
Onboard 3 port(s)
REAR PANEL I/O
1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
1 X Display port
4 X USB 3.2 Gen 1x1 port(s)
2 X USB2.0 port(s)
CONNECTORS & HEADERS
1 X 24-pin ATX Power Supply connector
1 X 4-pin Power Connector for Graphics
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Onboard Buzzer
Support additional 2 USB ports
1 X USB 3.2 Gen 1x1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 3 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
2 X Serial port header (COM)
1 X Parallel port header (LPT)
SYSTEM BIOS
AMI BIOS with 128 MB SPI Flash ROM
F7 hot key for boot up devices option
Dual Display
Support ECS EZ BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey
FORM FACTOR
mATX Form Factor
244mm(W) x 244mm(H)
OS SUPPORT
Windows 7 64-bit
Windows 10 64-bit
CERTIFICATIONS
CE/FCC Certification
ErP/EuP Certification
WHCK Certification

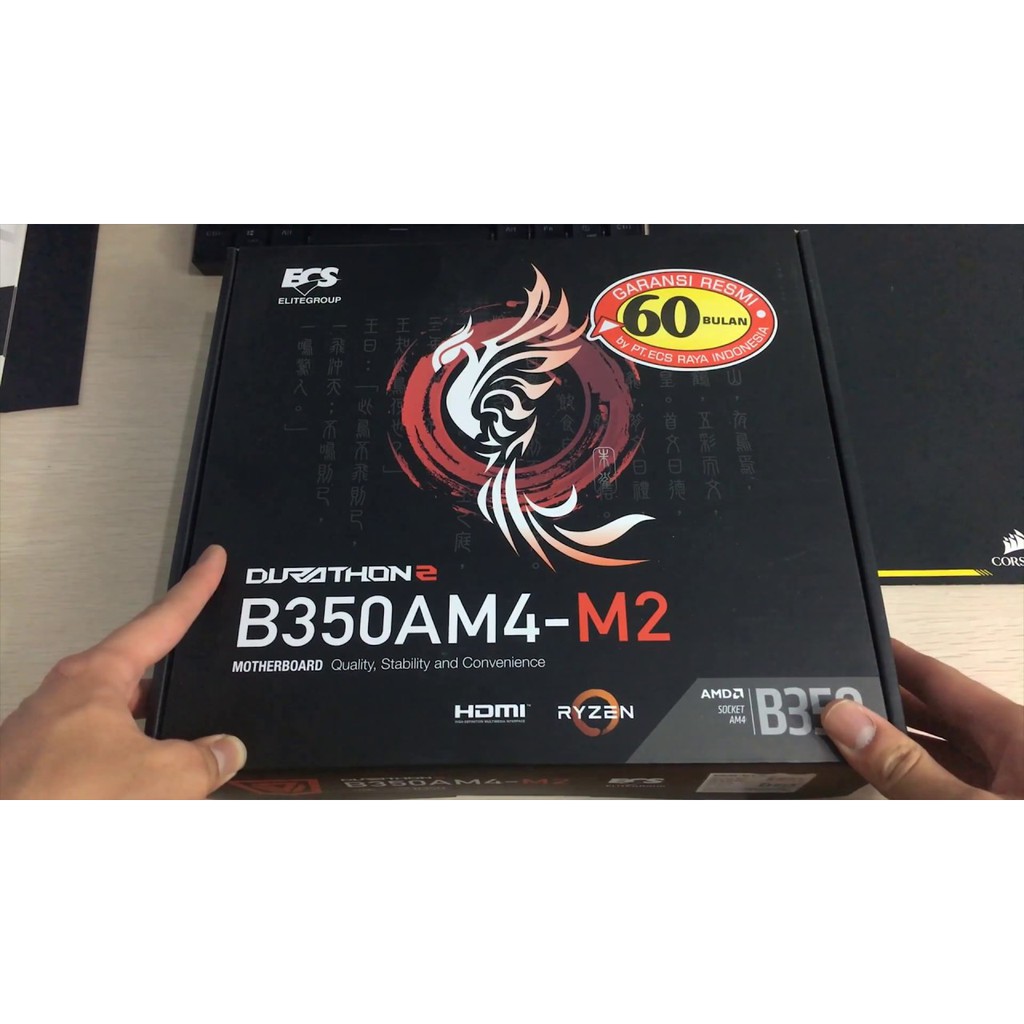

Gambar produk
