Motherboard Colorful H610M-K M.2 V20 (LGA1700, H610, DDR4, USB3.2)

Detail Motherboard Colorful H610M-K M.2 V20 (LGA1700, H610, DDR4, USB3.2)

Colorful H610M-K M.2 V20 Motherboard (LGA1700, H610, DDR4, USB3.2)

Supports 12th Gen Intel® Core™ Processors (Socket 1700)
2*DIMMs,supports Dual Channel DDR4 3200/2666/2400/2133MHZ memory
4*SATA3.0 ports
1*M.2 SSD slots
1000M LAN
6-ch audio chipset
HDMI+DP+VGA ports
4*USB 2.0 ports
2*USB 3.2 Gen1 ports

Motherboard Series : Colorful
Chipset : Intel H610
Processor : Supports 12th Gen Intel® Core™ Processors (Socket 1700)
Memory : 2 DIMM slots,support dual channel DDR4-3200/3000/2800/2666/2400 MHz ;
Graphics Support : 1*PCI Express 4.0 x 16 slot
SATA Ports : 4*SATA3.0 6Gb/s ports

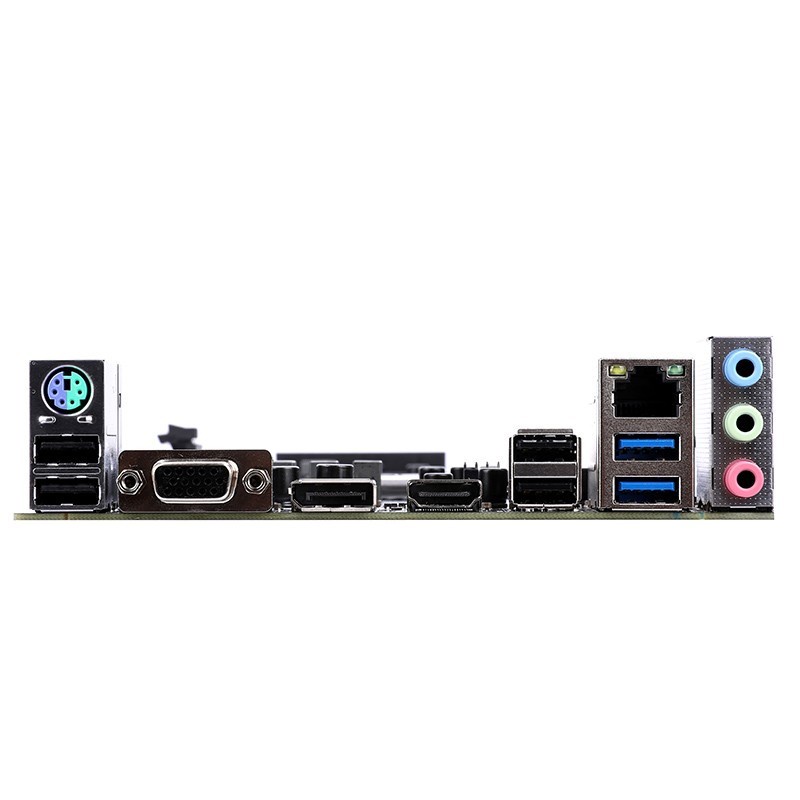

Board I/O :
1*DP port,
1*HDMI port,
1*VGA port;
4*USB 2.0 ports,
2*USB 3.2 Gen1 ports;
3*audio ports;

Expansion Slots :
1*PCI Express 4.0x16 slot,
1*PCI Express3.0X1 slot

BIOS : 128M UEFI
Power Management :
CPU Fan speed Controlled,
SYSTEM Fan speed Monitoring,
CPU Temperature Monitoring,
System Temperature Monitoring,
and Voltage monitoring

LAN : 1000Mbit LAN
Audio : 6-Channel High Definition audio
Configuration : 235*207mm,M-ATX

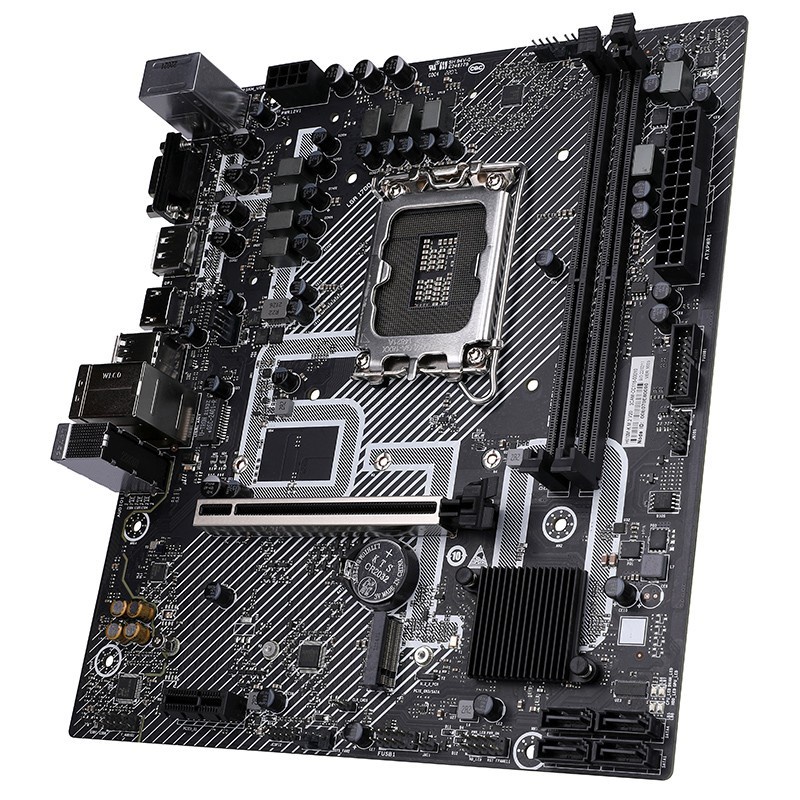

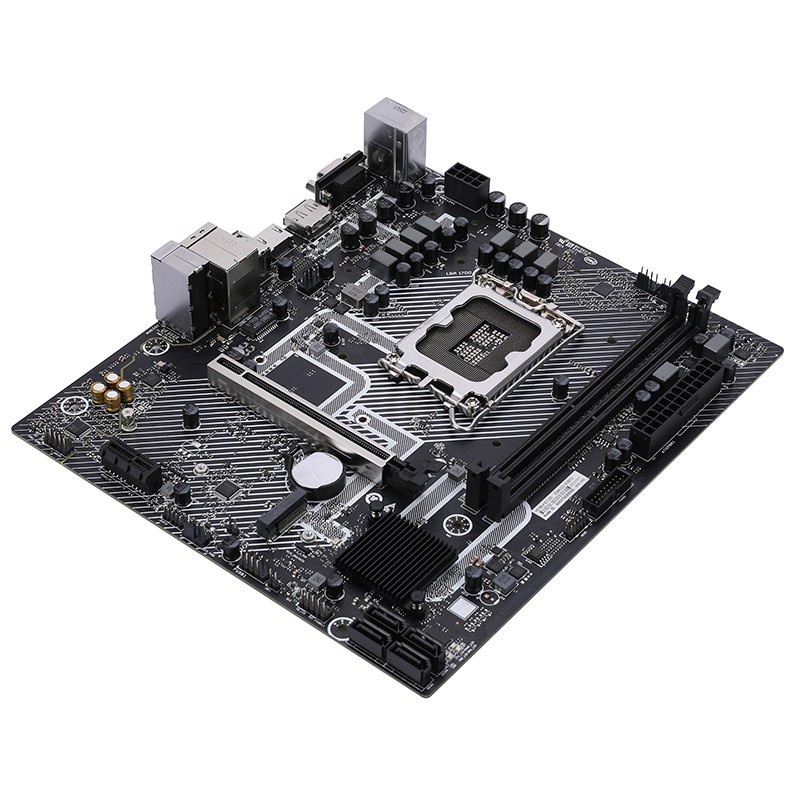

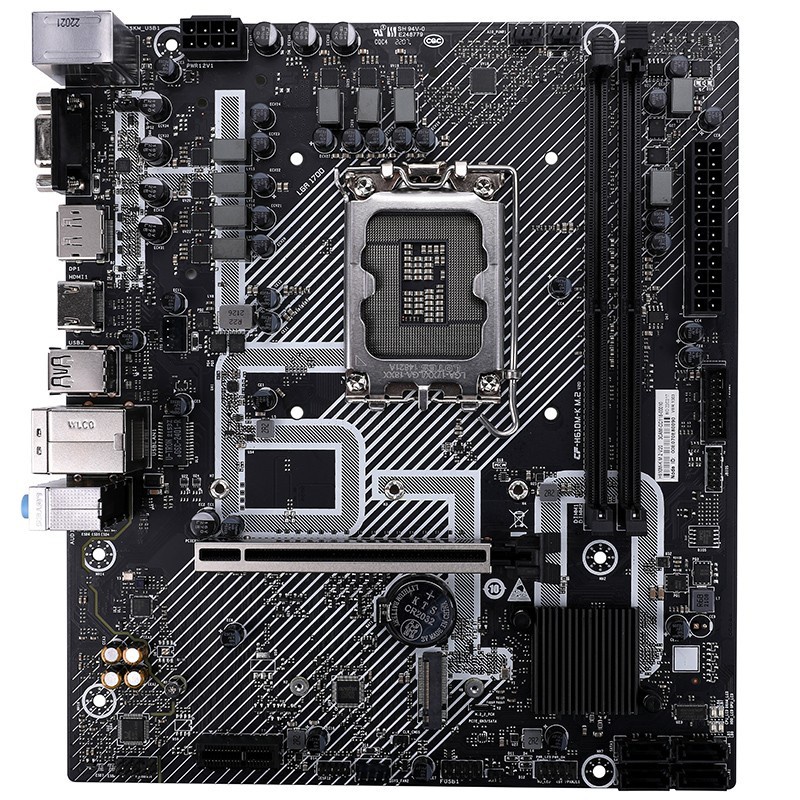

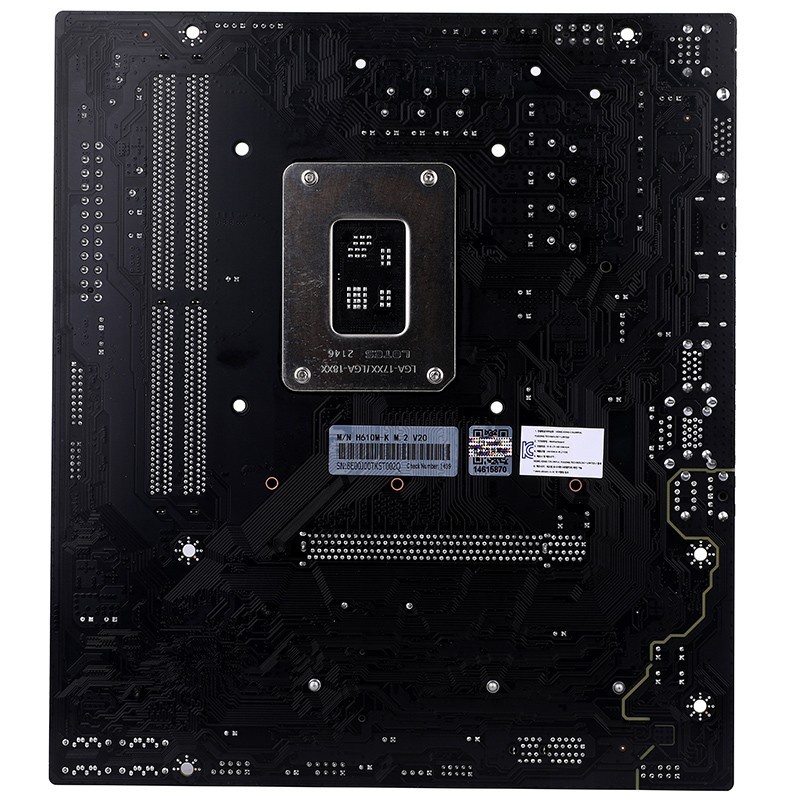

Gambar produk
