Motherboard Colorful H310M-T V20A for iNTEL GEN 6 7 8 MOTHERBOARD H310

Detail Motherboard Colorful H310M-T V20A for iNTEL GEN 6 7 8 MOTHERBOARD H310

-- Stok tidak mengikat, harap konfirmasikan stok terlebih dahulu sebelum melakukan pemesanan demi menghindari keterlambatan pengiriman / pembatalan pesanan --trimakasih

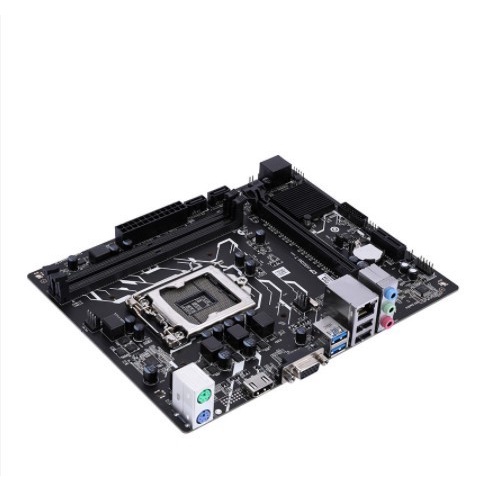

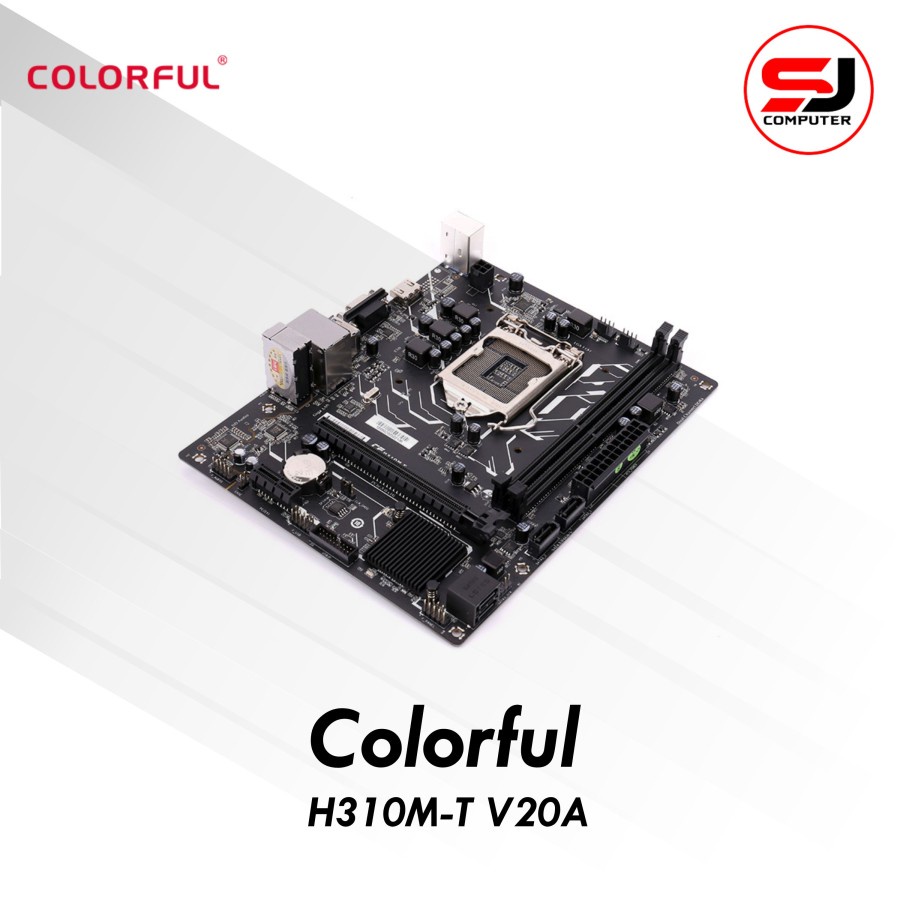

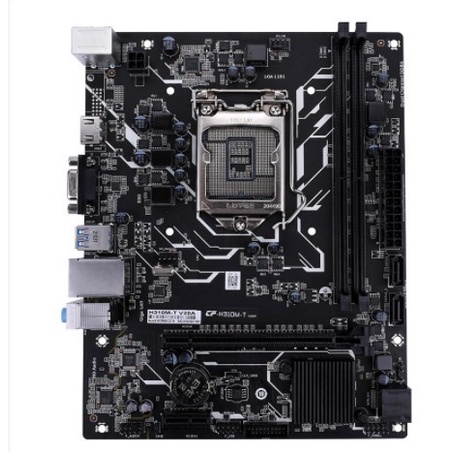

Motherboard Colorful H310M-T V20A (LGA1151, H310, DDR4, USB3.0)

◆Supports 8th and 9th Generation Intel Core Processors (Socket 1151)
◆Supports Dual Channel DDR4-2133/2400/2666 MHz memory
◆4*SATA3.0 ports
◆100M LAN
◆6-ch audio chipset
◆VGA+HDMI ports
◆4*USB2.0 ports（2 front +2 rear）
◆4*USB3.0 ports（2 front +2 rearr）

Motherboard Series : Intel chipset, COLORFUL series
Chipset : Intel H310
Processor : support Intel LGA1151 Coffee Lake-S processors
Memory : 2 DIMM slots, support dual channel DDR4 2133MHz/2400/2666 memory
Graphics Support : 1*PCI Express3.0x16 slot
Storeage : 4*SATA 3.0 6Gb/s ports
Board I/O : 2*PS2 ports，1*VGA port,1*HDMI port,1*RJ45 lan，3*audio ports,4*USB2.0 and 4*USB3.0(including headers)
Expansion Slots : 1*PCI Express2.0X1 slot
BIOS : 64M UEFI
Hardware Monitor : CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN : 1000M LAN，Provides 10/100/1000Mb Ethernet
Audio : 6-Channel High Definition audio CODEC
Configuration : 215 x 170 mm mATX
Other Features : Support ACPI S3/S4/S5;Support phone call startup, timing boot, network S5 wake-up

Gambar produk
