Motherboard Colorful H310M-E V21 (LGA1151, H310, DDR4, USB3.0)

Detail Motherboard Colorful H310M-E V21 (LGA1151, H310, DDR4, USB3.0)

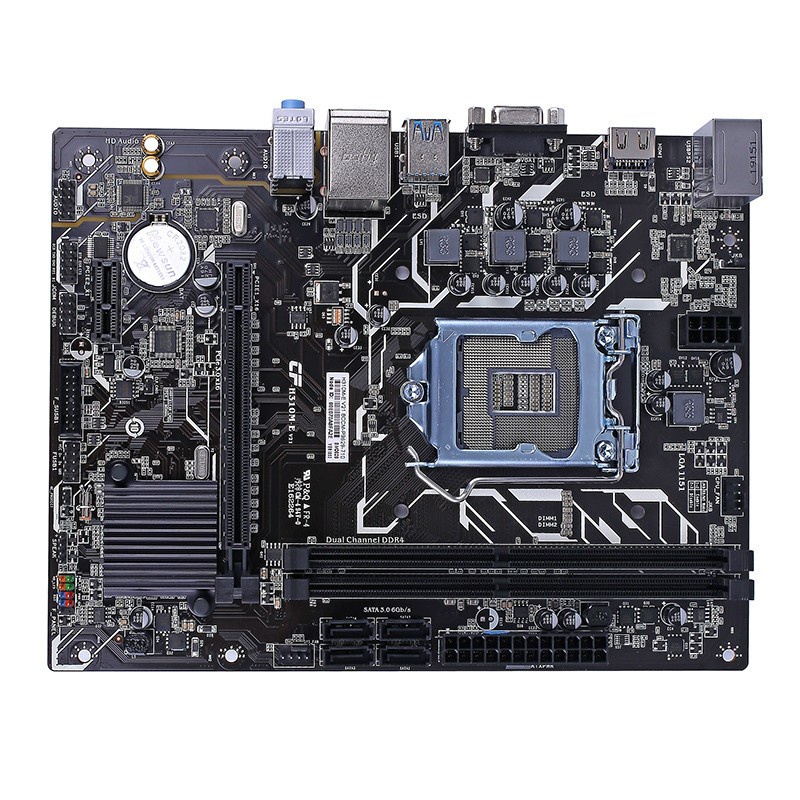

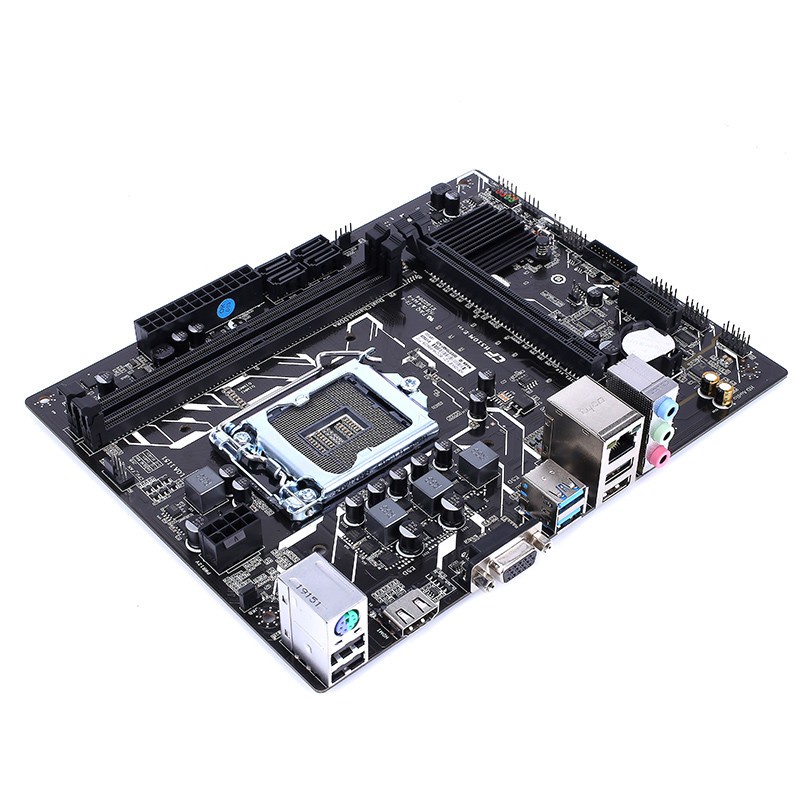

Colorful H310M-E V21 Motherboard (LGA1151, H310, DDR4, USB3.0)

?Supports 8th and 9th Generation Intel Core Processors (Socket 1151)
?Supports Dual Channel DDR4 2133/2400/2666MHZ memory
?4*SATA3.0 ports
?RTL8111F 1000M LAN
?Realtek ALC662 6-ch audio chipset
?VGA+HDMI ports
?6*USB2.0 and 4*USB3.0 ports(include headers)
?Audio isolated LED light
?Support S3?S4?S5 wake-up

Specification :
Motherboard Series : Intel chipset,COLORFUL series
Chipset : Intel H310
Processor : support Intel LGA1151 Coffee Lake-S processors
Memory : 2 DIMM slots,support dual channel DDR4 2133/2400/2666MHz memory
Graphics Support : 1*PCI Express3.0X16 slot
SATA Ports : 4*SATA3.0 6Gb/s ports

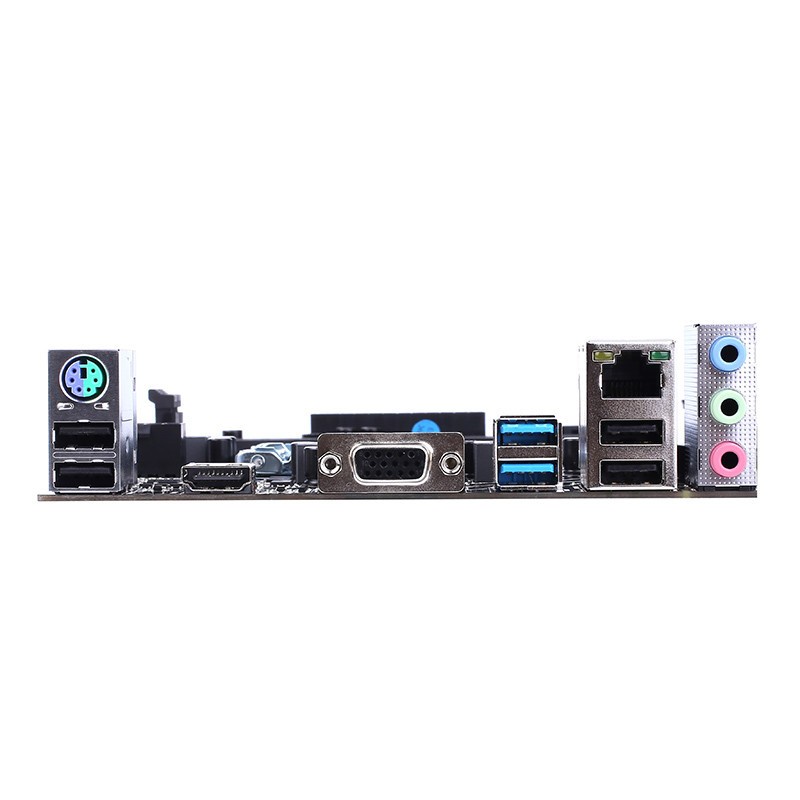

Board I/O :
1*PS2 port,
1*VGA port,
1*HDMI port,
1*RJ45 lan,
3*audio ports,
6*USB2.0 and
4*USB3.0(including headers)

Expansion Slots : 1*PCI Express 2.0x1 slot
BIOS : 64M UEFI
Power Management : support 65W processors

Hardware Monitor :
CPU Fan speed Controlled,
SYSTEM Fan speed Monitoring,
CPU Temperature Monitoring,
System Temperature Monitoring,
and Voltage monitoring

LAN : RTL8111F,1000M LAN,Provides 10/100/1000Mb Ethernet
Audio : ALC662 6-channel audio chipset
Configuration : 170 x 221 mm mATX
