Motherboard Colorful BATTLE-AX B660M-HD DELUXE V20 (LGA1700, B660M)

Detail Motherboard Colorful BATTLE-AX B660M-HD DELUXE V20 (LGA1700, B660M)

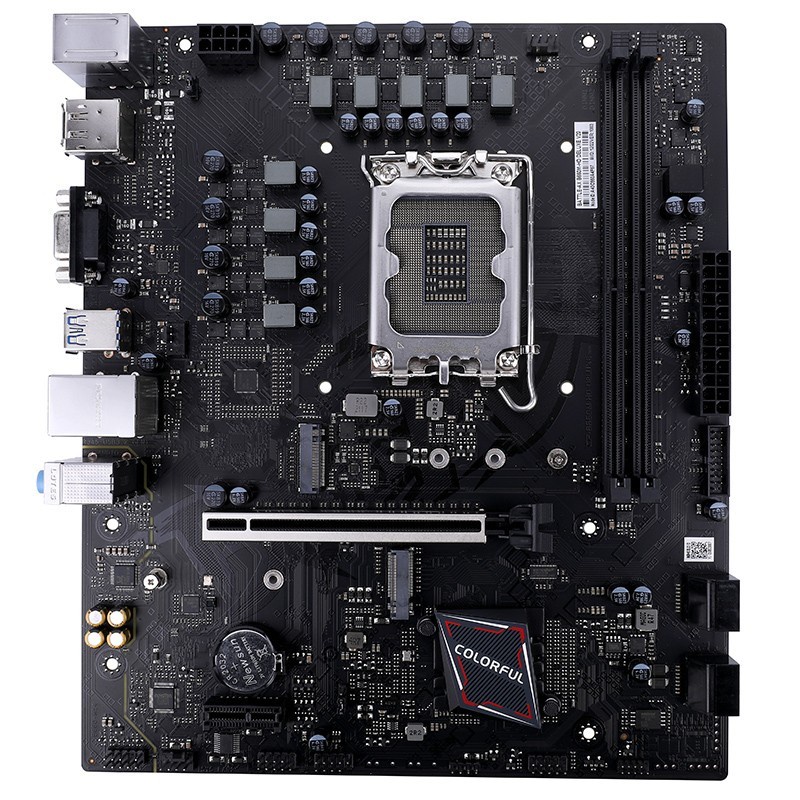

Colorful BATTLE-AX B660M-HD DELUXE V20 Motherboard (LGA1700, B660M, DDR4, USB3.2)

Supports 12th Gen Intel® Core™ Processors (Socket 1700)
2*DIMMs,supports Dual Channel DDR4 4800(OC)+/4600(OC)/4400(OC)MHZ memory
*memory overclocking also depends on the matching CPU and memory itself!
4*SATA3.0 ports
2*M.2 SSD slots
1000M LAN
6-ch audio chipset
DP+HDMI+VGA ports
4*USB2.0 ports (2 rear,2 header)
6*USB3.2 Gen1 ports (4 rear,2 header)

Motherboard Series : Intel chipset,BATTLE-AX series
Chipset : Intel B660
Processor : Supports 12th Gen Intel® Core™ Processors (Socket 1700)
Memory : 2 DIMM slots,support dual channel DDR4-4800(OC)+/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3600(OC)/3466(OC)/3200/2800/2666/2400 MHz
Graphics Support : 1*PCI Express 4.0/3.0X16 slot
SATA Ports : 4*SATA3.0 6Gb/s ports

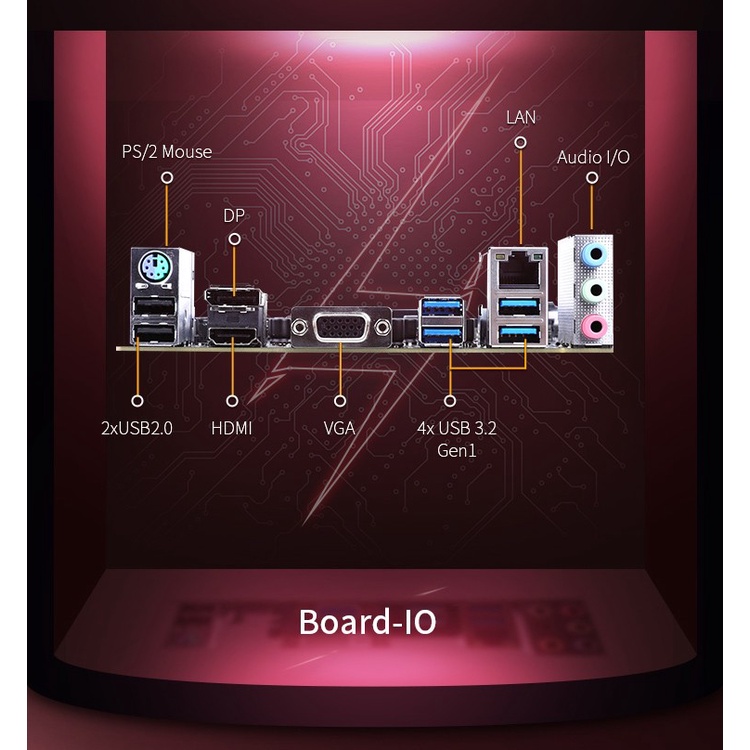

Board I/O :
1*PS2 port;
1*VGA port,
1*HDMI port,
1*DP port;
2*USB 2.0 ports,
4*USB3.2 Gen1 TYPE-A;
1*RJ45 1000M LAN;
6*audio ports(onboard:
1*USB2.0 headers,
1*USB3.2 Gen1 TYPE-A header)

Expansion Slots :
1*PCI Express3.0X1 slot.
2*M.2 slots;

BIOS : 128M UEFI

Hardware Monitor :
CPU Fan speed Controlled,
SYSTEM Fan speed Monitoring,
CPU Temperature Monitoring,
System Temperature Monitoring,
and Voltage monitoring

LAN : 1000M LAN,Provides 10/100/1000Mb Ethernet
Audio : 6-Channel High Definition audio CODEC
Configuration : 245*mm x 210mm
