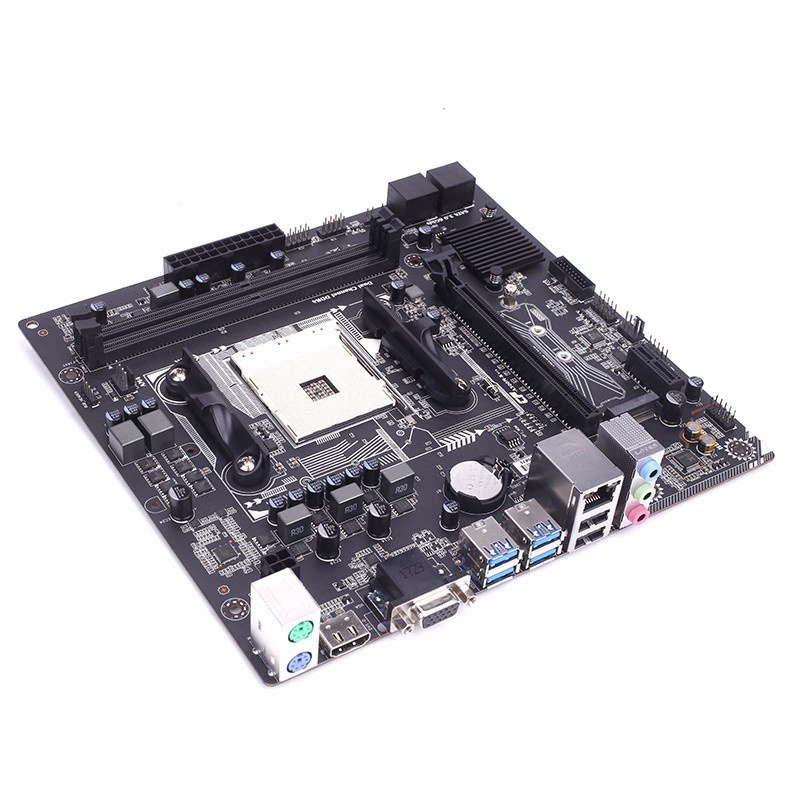

MOTHERBOARD COLORFUL A320M-K PRO V14 (AMD AM4, A320M, DDR4, USB3.0)

Detail MOTHERBOARD COLORFUL A320M-K PRO V14 (AMD AM4, A320M, DDR4, USB3.0)

C.A320M-K PRO V14

◆Supports AMD Socket AM4 and Ryzen Series CPUs
◆Supports Dual Channel DDR4 2666(OC)/2400/2133MHz memory
◆4*SATA3.0 ports
◆RTL8111H 1000M LAN
◆Realtek ALC662 6-ch audio chipset
◆VGA+HDMI ports
◆4*USB2.0 and 4*USB3.0 ports(include headers)
◆Audio isolated LED light

Motherboard Series AMD chipset,COLORFUL series
Chipset AMD A320/B460
Processor Supports AMD Socket AM4 and Ryzen Series CPUs
Memory 2 DIMM slots，support dual channel DDR4 2666（OC）/2400/2133MHz memory
Graphics Support 1*PCI Express3.0X16 slot
SATA Ports 4*SATA3.0 6Gb/s ports
Board I/O 2*PS2 ports，1*VGA port,1*HDMI port,1*RJ45 lan，3*audio ports,4*USB2.0 and 4*USB3.0(including headers)
Expansion Slots 1*PCI ExpressX1 slot
BIOS 128M UEFI
Power Management support 65W processors
Hardware Monitor CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN Realtek RTL8111H 1000M LAN，Provides 10/100/1000Mb Ethernet
Audio ALC662 6-channel audio chipset
Configuration 180 x 215 mm mATX
Other Features Support S4, S5 wake-up;Support phone call startup, timing boot, network S5 wake-up
